NOTES:

Part #	Number on image	Usage Notes
404-320-122	10	Roller Scraper available as an option
412-000-711	11	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.
412-000-712	12	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.
412-000-723	13	Antibounce skid available as an option
486-000-005	15	Used on LH Decks Only
486-000-007	16	Used on RH Decks Only
414-000-161	17	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.

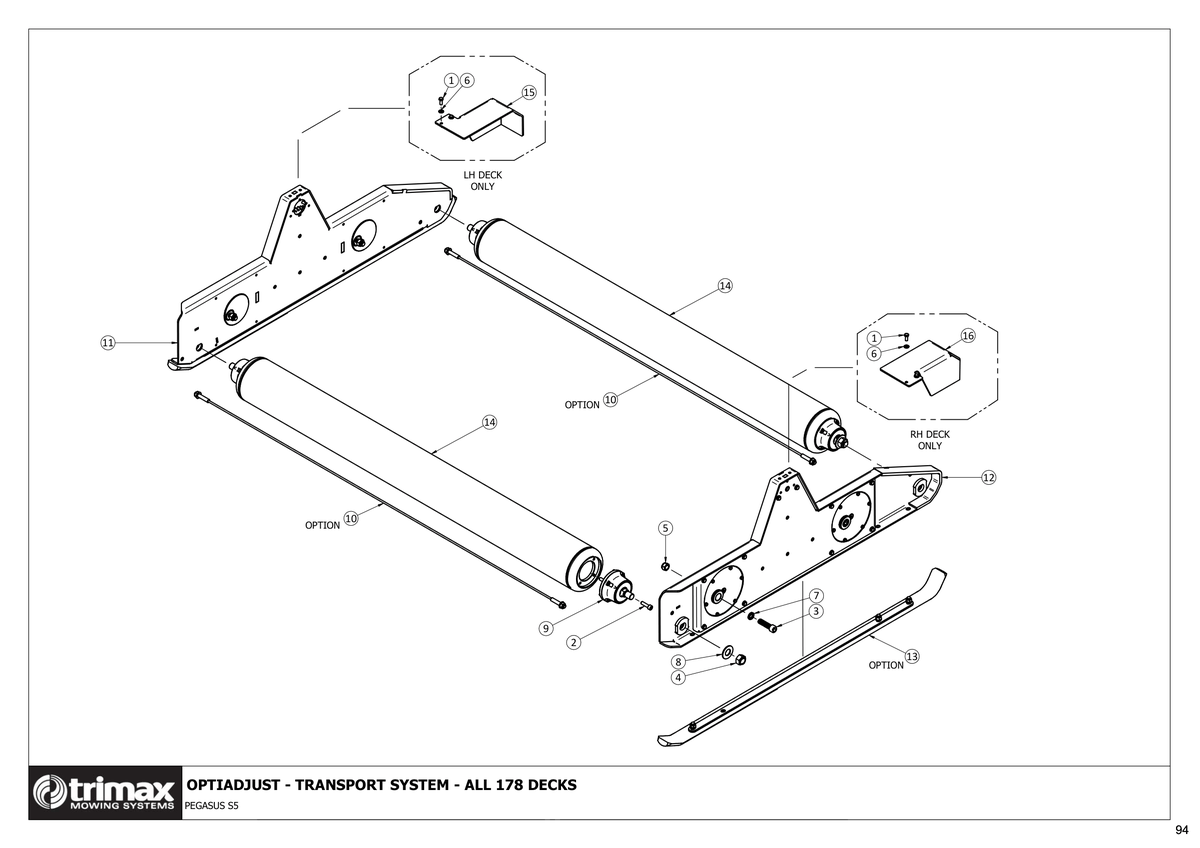

781 - Pegasus S5 OptiAdjust V2 610 - Transport System - All 178 Decks

Pegasus S5 OptiAdjust V2 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
2	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	$3.09
3	Cap Screw - Socket Head - M16 X 60 - Trimax Specification 303-216-603	Price on Request
4	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	$7.60
5	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
6	Washer - Flat 308-080-016 More Info >	$0.12
7	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
8	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	$1.98
9	Roller Bearing Assembly - Titan 401-000-035 More Info >	$293.00
10	Scraper - Roller Scraper Kit - 178cm i See notes section for usage notes on this part 404-320-122 More Info >	$80.00
11	Side Channel Assembly - LH i See notes section for usage notes on this part 412-000-711	Price on Request
12	Side Channel Assembly - RH i See notes section for usage notes on this part 412-000-712	Price on Request
13	Anti-Bounce Skid - Assembly i See notes section for usage notes on this part 412-000-723	Price on Request
14	Roller Weldment 414-000-157 More Info >	$930.00
15	Motor Cover Weldment LH i See notes section for usage notes on this part 486-000-005 More Info >	Price on Request
16	Motor Cover Weldment RH i See notes section for usage notes on this part 486-000-007 More Info >	Price on Request
17	Clamp Plate - Titan Bearing Pegasus S4 i See notes section for usage notes on this part 414-000-161 More Info >	$28.00
