NOTES:

Part #	Number on image	Usage Notes
505-000-016		Identify converter power specification: 1200W: Pre-Serial No. (see below) use 505-000-015; if unavailable, upgrade to 505-000-016 380W: Us listed part number. Serial Break TNZ: TBD TAU: TBD TGB: TBD TUS: TBD
485-000-006	9	493 Model Requires Pn: 485-000-006 ǀ 610 Model Requires Pn: 485-000-009 ǀ 722 Model Requires Pn: 485-000-010

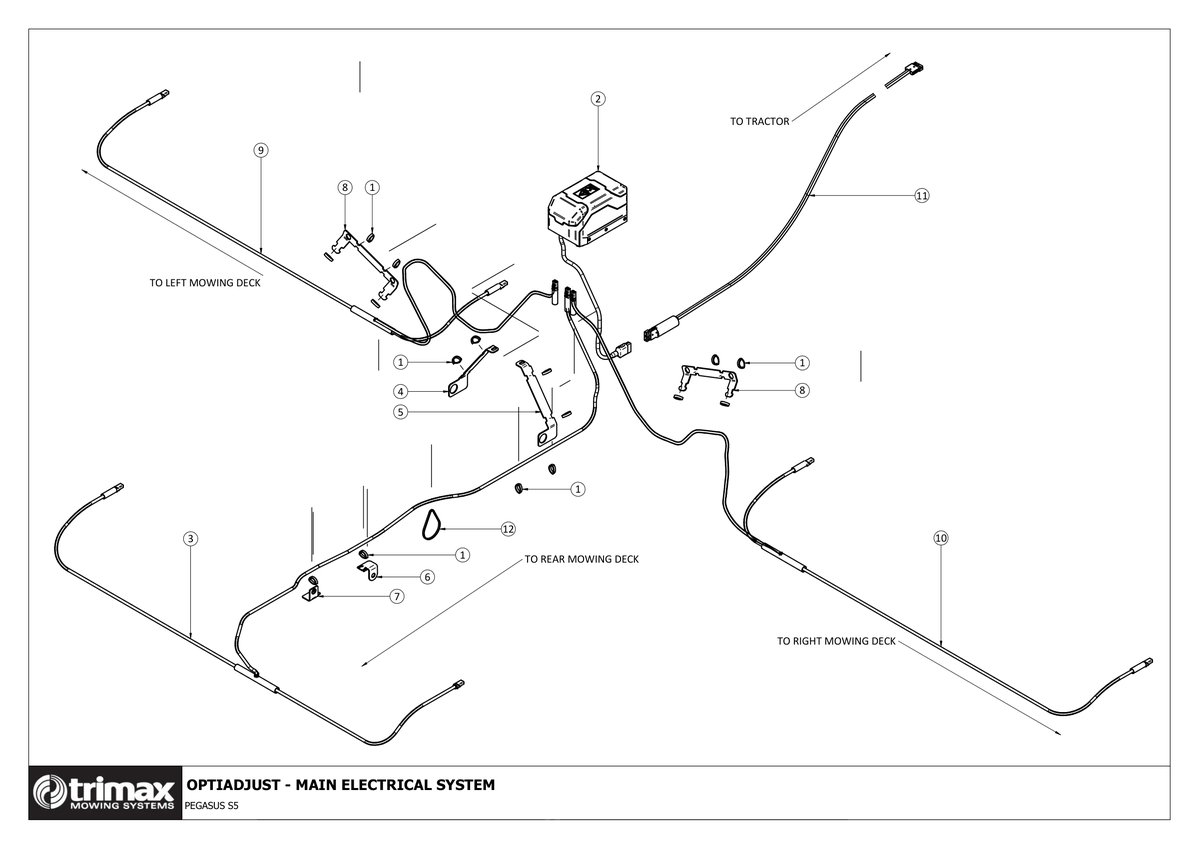

781 - Pegasus S5 OptiAdjust V2 610 - Main Electrical System

Pegasus S5 OptiAdjust V2 610

Grouped product items
No.	Product Name	Price
1	Cable Tie - Black 210-900-011 More Info >	Price on Request
	Control Box - External Antenna i See notes section for usage notes on this part 505-000-016 More Info >	Price on Request
3	Wiring Harness - Control Box To Rear Deck 485-000-005 More Info >	Price on Request
4	Bracket - Wiring Loom - Chassis LH 418-000-977	Price on Request
5	Bracket - Wiring Loom - Chassis RH 418-000-978	Price on Request
6	Bracket - Wiring Loom - Rear Outrigger 1 418-000-979 More Info >	Price on Request
7	Bracket - Wiring Loom - Rear Outrigger 2 418-000-980 More Info >	Price on Request
8	Bracket - Wiring Loom - Side Outrigger 418-000-981	Price on Request
9	Wiring Harness - Control Box To Side Decks i See notes section for usage notes on this part 485-000-006 More Info >	Price on Request
11	Wiring Harness - Tractor To Chassis 485-000-008 More Info >	Price on Request
