NOTES:

Part #	Number on image	Usage Notes
474-000-002		Identify converter power specification: 1200W: Pre-Serial No. (see below) use 474-000-001; if unavailable, upgrade to 505-000-016. 380W: Use listed part number
482-000-022		Identify converter power specification: 1200W: Pre-Serial No. (see below) use 482-000-006. If unavailable, use listed part number. 380W: Use listed part number. Serial Break TNZ: TBD TAU: TBD TGB: TBD TUS: TBD
485-000-024		Identify converter power specification: 1200W: Pre-Serial No. (see below) use 485-000-022; if unavailable, upgrade to 505-000-016. 380W: Use listed part number.

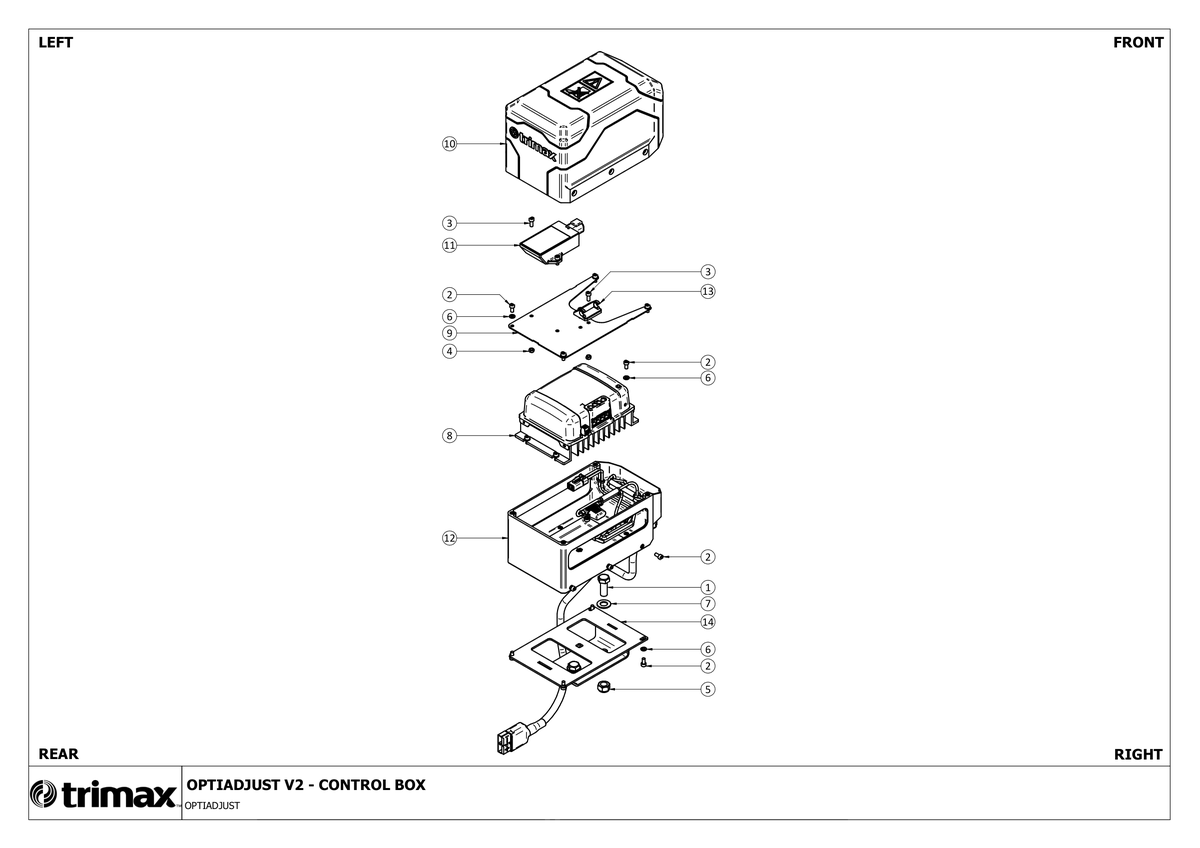

781 - Pegasus S5 OptiAdjust V2 610 - Control Box

Pegasus S5 OptiAdjust V2 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
	Cap Screw - M5 x 10 - Trimax Specification 303-205-103 More Info >	Price on Request
3	Cap Screw - Socket Head - M5 x 12 - Trimax Specification 303-205-123 More Info >	Price on Request
5	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
6	Washer - Flat M5 ZP 308-050-013 More Info >	Price on Request
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
	DC Converter 12V to 48V - Trimax Specification i See notes section for usage notes on this part 474-000-002 More Info >	Price on Request
9	Control Box Case - Shelf 482-000-007 More Info >	Price on Request
	Control Box Case i See notes section for usage notes on this part 482-000-022 More Info >	Price on Request
11	Master Control Unit - OptiAdjust V2 485-000-019 More Info >	Price on Request
	Control Box Assembly - Wiring Harness i See notes section for usage notes on this part 485-000-024 More Info >	Price on Request
13	Fuse Holder Holder 486-000-001 More Info >	Price on Request
14	Mounting Bracket Weldment 486-000-011 More Info >	Price on Request
