NOTES:

Part #	Number on image	Usage Notes
421-000-392	28	LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical
421-000-393	30	LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical
421-000-396	34	LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical

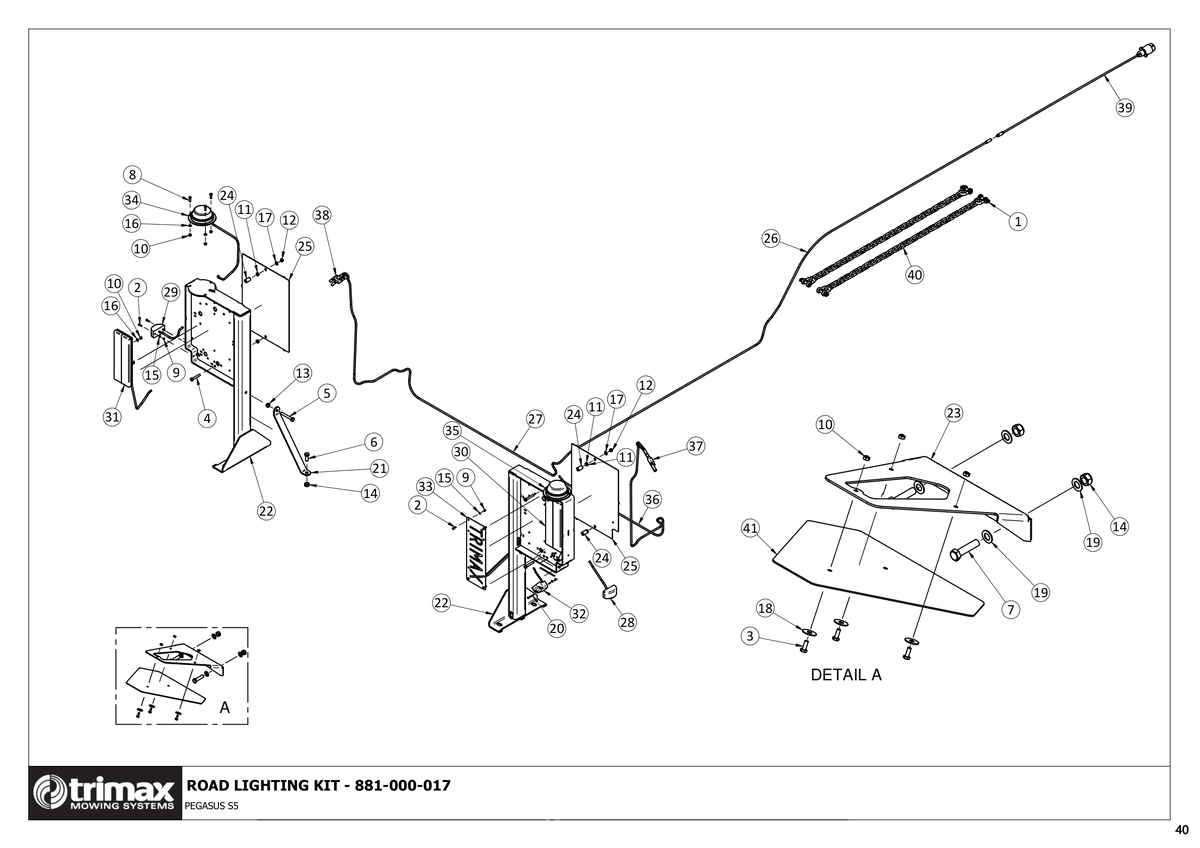

781 - Pegasus S5 OptiAdjust - Road Kit - Option

Pegasus S5 OptiAdjust 493, Pegasus S5 OptiAdjust 610, Pegasus S5 OptiAdjust 722

Grouped product items
No.	Product Name	Price
1	D-Shackle NZS5467 214-000-002 More Info >	$39.14
2	Bolt 301-204-163 More Info >	$0.27
3	Bolt 301-206-163 More Info >	$0.23
4	Bolt 301-208-503 More Info >	$0.90
5	Bolt 301-210-703 More Info >	$1.60
6	Bolt 301-212-303 More Info >	$2.36
7	Bolt 301-212-503 More Info >	$3.16
9	Nut - Nyloc 307-204-053 More Info >	$0.53
10	Nut - Nyloc 307-206-053 More Info >	$0.54
11	Nut - Plain 307-208-013 More Info >	$0.17
12	Nut - Nyloc 307-208-053 More Info >	$0.17
13	Nut - Nyloc 307-210-053 More Info >	$0.57
14	Nut - Nyloc 307-212-053 More Info >	$0.67
15	Washer - Flat 308-040-013 More Info >	$0.57
16	Washer - Flat 308-060-013 More Info >	$0.04
17	Washer - Flat 308-080-013 More Info >	$0.05
18	Washer- Fender M8 ZP 308-080-073 More Info >	$0.90
19	Washer - Flat 308-120-013 More Info >	$0.45
20	Screw 315-204-356 More Info >	Price on Request
21	Tie Support Rod- Mudguard 410-000-432 More Info >	$19.17
22	Road Lighting - Weldment - L&R 418-000-911 More Info >	Price on Request
23	Mount Plate - Slow Moving Triangle 418-000-916 More Info >	$107.21
24	Light Bracket - Cover Plate Spacer 418-000-931 More Info >	Price on Request
25	Light Bracket - Cover Plate 418-000-932 More Info >	Price on Request
26	Loom - Tail Light Cable 3.7m 5 Core Split End 421-000-067 More Info >	$75.50
27	Loom - Tail Light Cable 1.9m 421-000-069 More Info >	$43.44
28	Light - Side Marker i See notes section for usage notes on this part 421-000-392 More Info >	Price on Request
30	Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug i See notes section for usage notes on this part 421-000-393 More Info >	Price on Request
32	Light - Number Plate 421-000-394 More Info >	Price on Request
33	Road Lighting - Number Plate 421-000-395	Price on Request
34	Led Strobe Light - Safety Beacon i See notes section for usage notes on this part 421-000-396 More Info >	$297.78
36	Cable - 1.7m 4 Core Gooseneck End 421-000-400 More Info >	Price on Request
37	2 Core Splitter Plug - 3 Way NAPA Part Number: 2P4WB 421-000-418 More Info >	Price on Request
38	2 Core Splitter Plug - 2 Way 421-000-450 More Info >	Price on Request
39	Trailer Plug inc. Cable 1m /w Metal Plug 421-000-586 More Info >	Price on Request
40	Chain - Trailier Safety 450-000-109 More Info >	$69.49
41	Sign - Safety Triangle 450-000-124 More Info >	Price on Request
