NOTES:

Part #	Number on image	Usage Notes
424-000-304	16	For 610 Pegasus, Use P/N: 424-000-307. For 722 Pegasus , Use P/N: 424-000-310 For 610 Pegasus, Use P/N: 424-000-307. For 722 Pegasus , Use P/N: 424-000-310 For 610 Pegasus, Use P/N: 424-000-307. For 722 Pegasus , Use P/N: 424-000-310 For 610 Pegasus, Use P/N: 424-000-307. For 722 Pegasus , Use P/N: 424-000-310

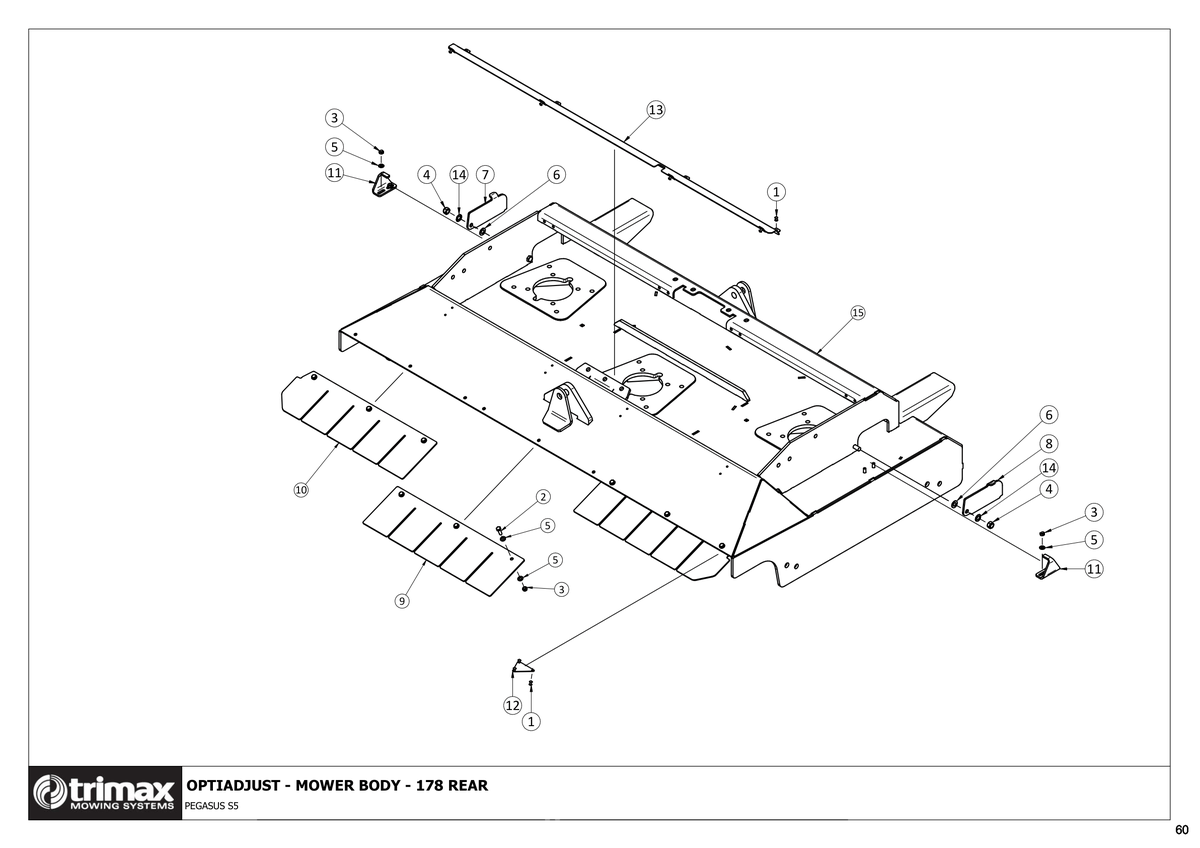

781 - Pegasus S5 OptiAdjust - Mower Body Assembly Rear

Pegasus S5 OptiAdjust 493, Pegasus S5 OptiAdjust 610, Pegasus S5 OptiAdjust 722

Grouped product items
No.	Product Name	Price
1	Blind Rivet 213-443-250 More Info >	$0.57
2	Bolt 301-208-253 More Info >	$0.54
3	Nut - Nyloc 307-208-056 More Info >	$0.90
4	Nut - Nyloc 307-212-053 More Info >	$0.67
5	Washer - Flat 308-080-016 More Info >	$0.12
6	Washer - Flat 308-120-013 More Info >	$0.45
7	Wash Panel - RH 410-000-134 More Info >	$37.96
8	Wash Panel - LH 410-000-135 More Info >	$37.96
9	Rear Flap - Inner - Procut S5 410-000-461 More Info >	$67.20
10	Rear Flap - Outer - Procut S5 410-000-463 More Info >	$67.85
11	Bracket - Limit Switch Trigger - Powder Coated - Pegasus S5 412-000-756 More Info >	Price on Request
12	Cap Plate 417-001-024 More Info >	Price on Request
13	Cable Channel 178 - Rear - Powder Coated - OptiAdjust 417-001-788 More Info >	Price on Request
14	Washer - Crinkle 450-000-116 More Info >	$1.78
15	Body Weldment - Pegasus S5 178 Rear - Powder Coated - OptiAdjust 502-000-278 More Info >	Price on Request
16	Decal Sheet – Pegasus S5 - 493 Rear Deck i See notes section for usage notes on this part 424-000-304 More Info >	Price on Request
