NOTES:

Part #	Number on image	Usage Notes
404-320-129	10	Roller Scraper available as an option
410-000-488	11	Used on LH Deck Only
410-000-489	12	Used on RH Deck only
410-000-490	13	Used on LH & RH Decks only
412-000-711	14	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.
412-000-712	15	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.
412-000-723	16	Antibounce skid available as an option
414-000-161	18	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.

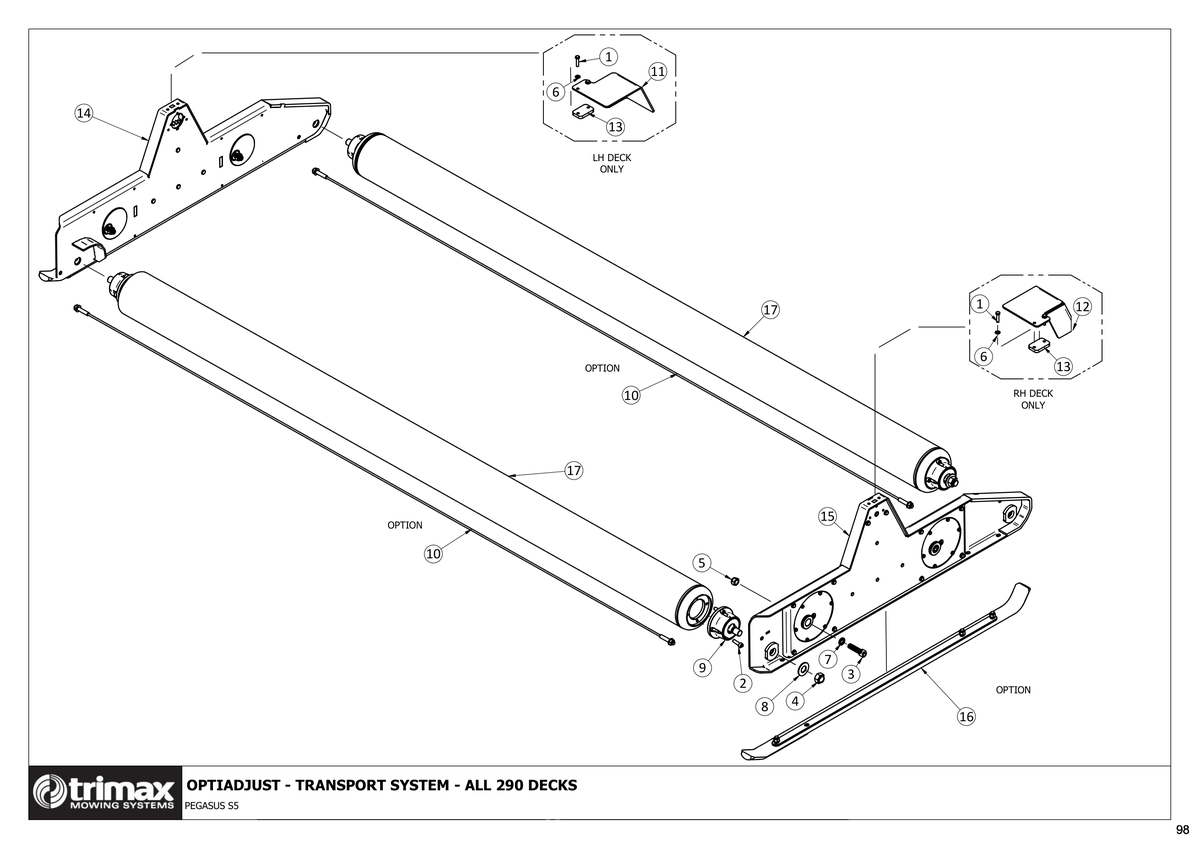

781 - Pegasus S5 OptiAdjust 722 - Transport System All 290 Decks

Pegasus S5 OptiAdjust 722

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M8 x 35 - Trimax Specification 301-208-353 More Info >	$1.15
2	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	$3.09
3	Cap Screw - Socket Head - M16 X 60 - Trimax Specification 303-216-603	Price on Request
4	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	$7.60
5	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
6	Washer - Flat 308-080-016 More Info >	$0.12
7	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
8	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	$1.98
9	Roller Bearing Assembly - Titan 401-000-035 More Info >	$293.00
10	Scraper - Roller 290 i See notes section for usage notes on this part 404-320-129 More Info >	$80.25
11	Gearbox Shield - LH i See notes section for usage notes on this part 410-000-488 More Info >	Price on Request
12	Gearbox Shield - RH i See notes section for usage notes on this part 410-000-489 More Info >	Price on Request
13	Spacer - Gearbox Shield i See notes section for usage notes on this part 410-000-490 More Info >	Price on Request
14	Side Channel Assembly - LH i See notes section for usage notes on this part 412-000-711	Price on Request
15	Side Channel Assembly - RH i See notes section for usage notes on this part 412-000-712	Price on Request
16	Anti-Bounce Skid - Assembly i See notes section for usage notes on this part 412-000-723	Price on Request
17	Roller Weldment 414-000-159 More Info >	$1,265.00
18	Clamp Plate - Titan Bearing Pegasus S4 i See notes section for usage notes on this part 414-000-161 More Info >	$28.00
