NOTES:

Part #	Number on image	Usage Notes
418-000-962	8	Use part number 510-000-078 for LH Outrigger Arm including Hinge Bush

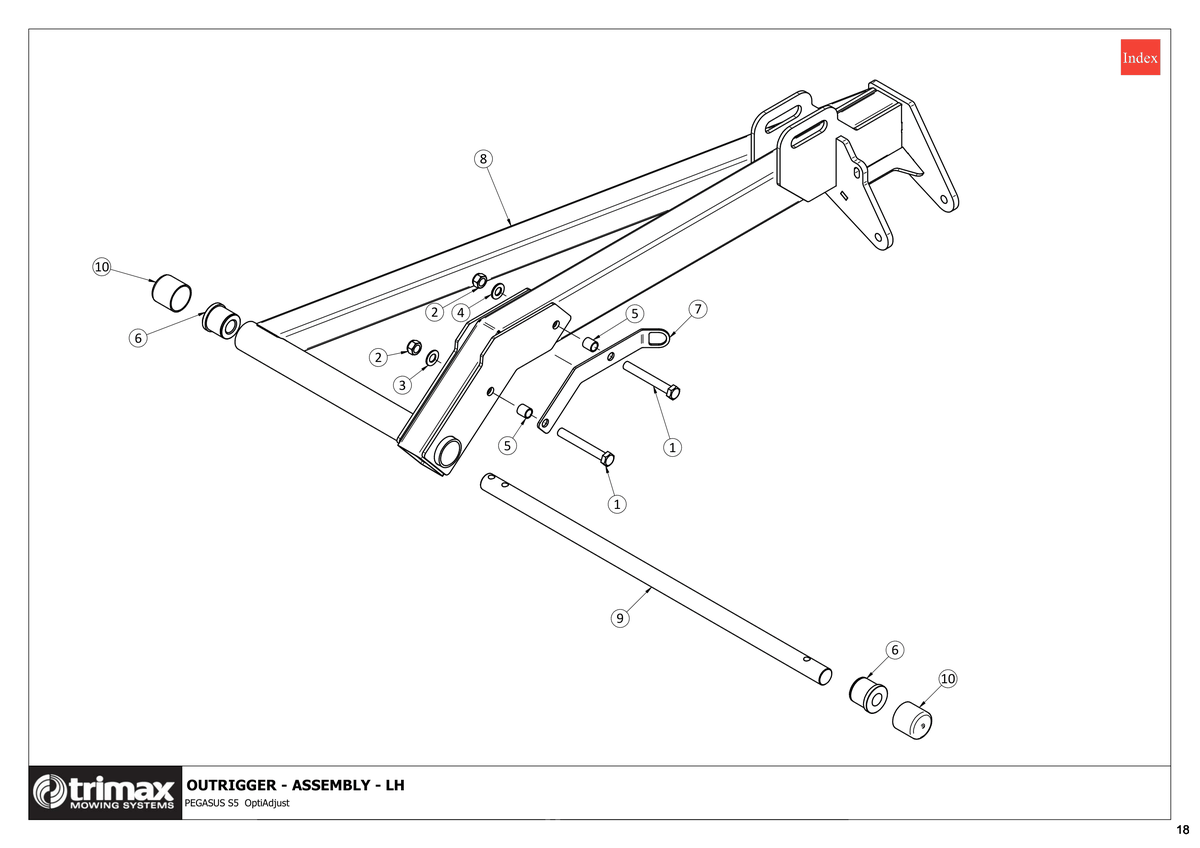

781 - Pegasus S5 OptiAdjust 722 - Outrigger Assembly LH

Pegasus S5 OptiAdjust 722

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M20 x 150 - Trimax Specification 301-620-153 More Info >	$6.38
2	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	$1.57
3	Washer - Flat 308-200-013 More Info >	$1.16
4	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
5	Inner Ring - Lock Bush 401-000-018 More Info >	$20.70
6	Hinge Bush - Outrigger 402-000-149 More Info >	$80.12
7	Lock Boss Clevis Plate - Rh - Outrigger 418-000-879 More Info >	$58.76
8	Side Outrigger Weldment - LH i See notes section for usage notes on this part 418-000-962 More Info >	Price on Request
9	Hinge Pin - Outrigger 419-000-066 More Info >	$420.36
10	Cap - Hinge Pin Ø 1 ¼" 209-000-009 More Info >	Price on Request
