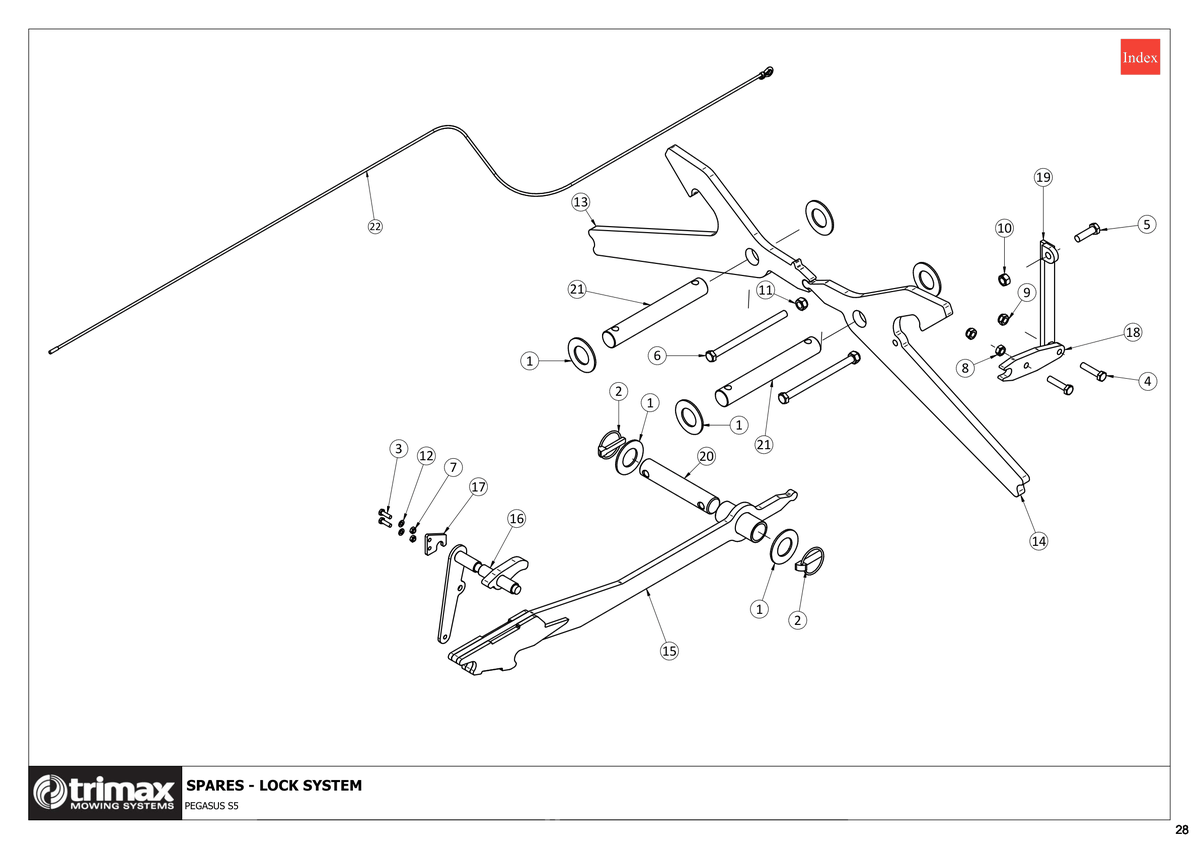

781 - Pegasus S5 - Chassis Lock Release System

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	$3.00
2	Linch Pin 203-300-700 More Info >	$2.76
3	Bolt 301-206-203 More Info >	$0.12
4	Bolt 301-210-453 More Info >	$1.80
5	Bolt 301-212-403 More Info >	$2.93
6	Bolt 301-612-183 More Info >	$1.60
7	Nut - Nyloc 307-206-053 More Info >	$0.54
8	Nut - Plain 307-210-013 More Info >	$0.48
9	Nut - Nyloc 307-210-053 More Info >	$0.57
10	Nut - Plain 307-212-013 More Info >	$0.57
11	Nut - Nyloc 307-212-053 More Info >	$0.67
12	Washer - Flat 308-060-013 More Info >	$0.04
13	Plate - Lh - Lock Mech 418-000-864 More Info >	$413.09
14	Plate - Rh - Lock Mech 418-000-865 More Info >	$413.09
15	Lock Weldment - Rear 418-000-866 More Info >	$332.53
16	Lever - Weldment - Remote Unlock 418-000-903 More Info >	$219.41
17	Plate - Remote Unlock 418-000-905 More Info >	Price on Request
18	Lock Bell Crank 418-000-938 More Info >	$68.45
19	Lock Linkage Weldment 418-000-949 More Info >	$130.29
20	Pin - Hydraulic Cylinder 419-000-035 More Info >	$61.46
21	Pin - Lift Ram - Chassis 419-000-068 More Info >	$244.90
22	Release Rope Assembly 4.5m 404-000-125 More Info >	$86.04
