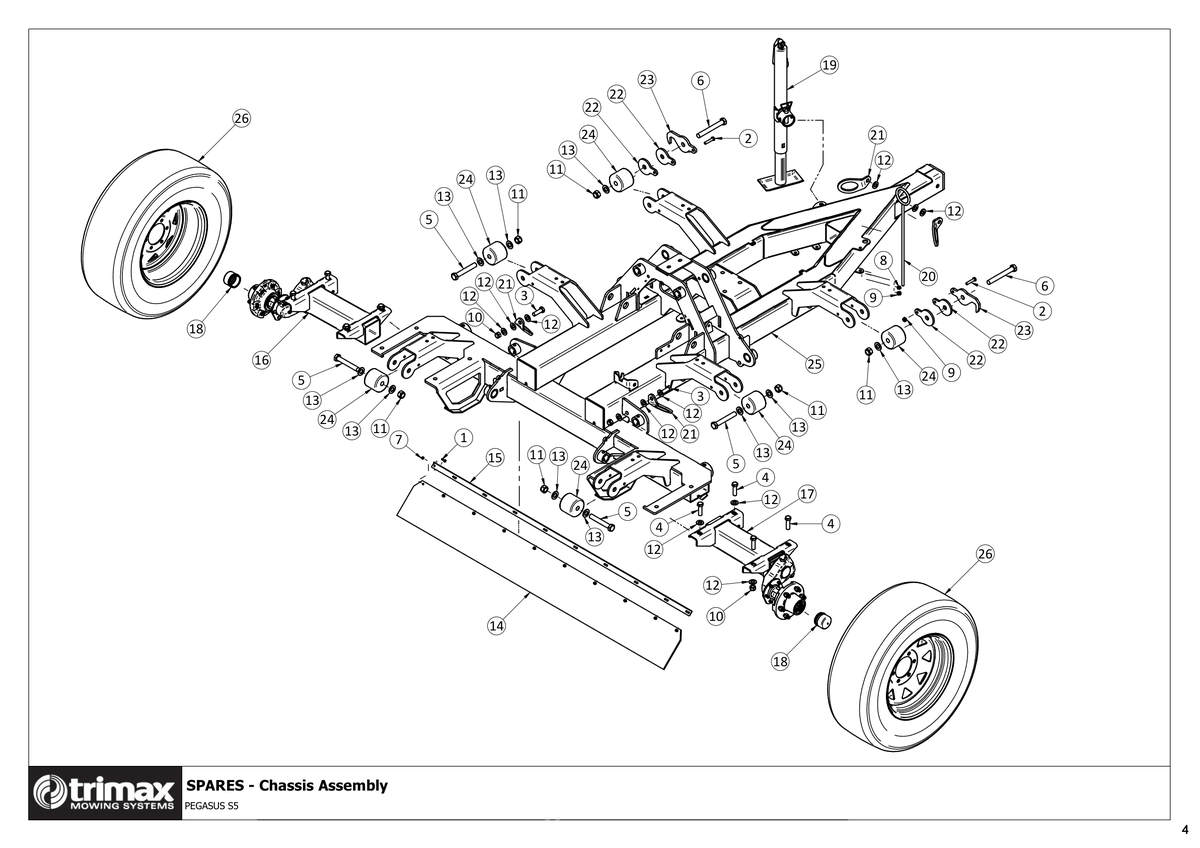

781 - Pegasus S5 - Chassis Assembly

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 Bolt [301-206-253] Bolt 301-206-253
$0.59
2 Bolt [301-210-503] Bolt 301-210-503
$1.22
3 Bolt [301-216-503] Bolt 301-216-503
$5.63
4 Bolt [301-216-553] Bolt 301-216-553
$6.42
5 Bolt [301-620-133] Bolt 301-620-133
$16.02
6 Bolt - Hex Head M20 x 160 ZP 8.8 [301-620-163] Bolt - Hex Head M20 x 160 ZP 8.8 301-620-163
$10.37
7 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
$0.54
8 Nut - Plain [307-210-013] Nut - Plain 307-210-013
$0.48
9 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
$0.57
10 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
$1.02
11 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
$1.57
12 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
13 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
$1.02
14 Safety Flap - Deck - Rear 178 [410-841-120] Safety Flap - Deck - Rear 178 410-841-120
$161.48
15 Clamp Strip - Safety Flap 178 [410-841-200] Clamp Strip - Safety Flap 178 410-841-200
$70.56
16 Axle Assembly – LH Pegasus S5 [416-000-128] Axle Assembly – LH Pegasus S5 416-000-128
$1,454.29
17 Axle Assembly – RH Pegasus S5 [416-000-129] Axle Assembly – RH Pegasus S5 416-000-129
$1,454.29
18 Bearing Buddy - Complete Assembly [416-000-140] Bearing Buddy - Complete Assembly 416-000-140
$146.87
19 Parking Jack Assembly [418-000-217] Parking Jack Assembly 418-000-217
$353.92
20 Guide [418-000-466] Guide 418-000-466
$50.05
21 Lug - Tie Down [418-000-851] Lug - Tie Down 418-000-851
$54.28
22 Spacer - Transport Guide Hook [418-000-854] Spacer - Transport Guide Hook 418-000-854
$17.75
23 Hook - Transport Guide [418-000-855] Hook - Transport Guide 418-000-855
$21.39
24 Guide Roller [418-844-364] Guide Roller 418-844-364
$98.01
