NOTES:

Part # Number on image Usage Notes
418-001-274 32
  • Use Items 32,33 & 34 (418-001-274, 418-001-275 and 418-001-280 respectively) if the Side Channel comes with welded spacer.
418-001-275 33
  • Use Items 32,33 & 34 (418-001-274, 418-001-275 and 418-001-280 respectively) if the Side Channel comes with welded spacer.
418-001-280 34
  • Use Items 32,33 & 34 (418-001-274, 418-001-275 and 418-001-280 respectively) if the Side Channel comes with welded spacer.
418-001-002 47
  • Alternatively, use Items 47 and 48 (418-001-002 and 418-001-003 respectively) if the Side Channel comes without welded spacer.
418-001-003 48
  • Alternatively, use Items 47 and 48 (418-001-002 and 418-001-003 respectively) if the Side Channel comes without welded spacer.

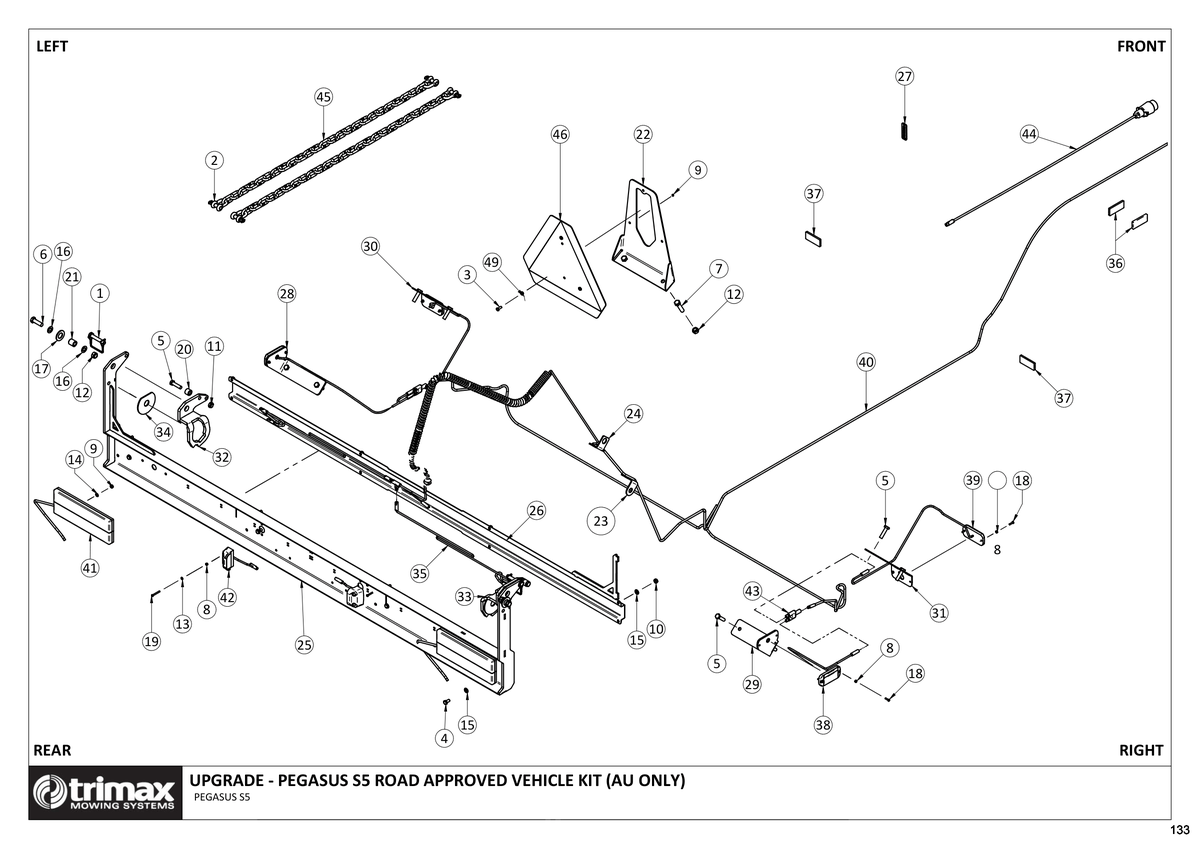

781 - Pegasus S5 722 - Road Approved Vehicle Kit (AU Only) - Option

Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 Shaft Locking Pin - 11mm X 54mm [203-000-001] Shaft Locking Pin - 11mm X 54mm 203-000-001
$3.10
2 D-Shackle AS2741 [214-000-004] D-Shackle AS2741 214-000-004
Price on Request
3 Bolt - Hex Head - M6 x 16 - Trimax Specification [301-206-163] Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163
Price on Request
4 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
$0.61
5 Bolt - Hex Head - M10 x 40 - Trimax Specification [301-210-403] Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403
Price on Request
6 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
$2.93
7 Bolt - Hex Head - M12 x 50 - Trimax Specification [301-212-503] Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503
$3.16
8 Nut - Nyloc [307-204-053] Nut - Nyloc 307-204-053
$0.53
9 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
$0.54
10 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
$0.90
11 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
$0.57
12 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
$0.67
13 Washer - Flat [308-040-013] Washer - Flat 308-040-013
$0.57
14 Washer - Flat [308-060-013] Washer - Flat 308-060-013
$0.04
15 Washer - Flat [308-080-013] Washer - Flat 308-080-013
$0.05
16 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
$0.45
17 Washer - Flat [308-200-013] Washer - Flat 308-200-013
$1.16
18 Screw [315-204-166] Screw 315-204-166
Price on Request
19 Screw [315-204-356] Screw 315-204-356
Price on Request
20 Bush - Lock Actuator [402-000-106] Bush - Lock Actuator 402-000-106
$37.24
21 Pivot Bush [402-000-165] Pivot Bush 402-000-165
Price on Request
22 Mount Plate - Slow Moving Triangle [418-000-916] Mount Plate - Slow Moving Triangle 418-000-916
Price on Request
23 Bracket - Wiring Loom - Rear Outrigger 1 [418-000-979] Bracket - Wiring Loom - Rear Outrigger 1 418-000-979
Price on Request
24 Bracket - Wiring Loom - Rear Outrigger 2 [418-000-980] Bracket - Wiring Loom - Rear Outrigger 2 418-000-980
Price on Request
25 Light Bar Weldment [418-001-001] Light Bar Weldment 418-001-001
Price on Request
26 Light Bar Cover Channel [418-001-012] Light Bar Cover Channel 418-001-012
Price on Request
27 Light Bar Reminder Tag [418-001-017] Light Bar Reminder Tag 418-001-017
Price on Request
28 Side Lamp Bracket LH for 421-000-201 [418-001-071] Side Lamp Bracket LH for 421-000-201 418-001-071
Price on Request
29 Side Lamp Bracket LH for 421-000-201 [418-001-072] Side Lamp Bracket LH for 421-000-201 418-001-072
Price on Request
30 Front Lamp Bracket LH for 421-000-202 [418-001-073] Front Lamp Bracket LH for 421-000-202 418-001-073
Price on Request
31 Front Lamp Bracket RH for 421-000-202 [418-001-074] Front Lamp Bracket RH for 421-000-202 418-001-074
Price on Request
32 Light Bar Support Weldment LH [418-001-274] Light Bar Support Weldment LH i See notes section for usage notes on this part 418-001-274
Price on Request
33 Light Bar Support Weldment RH [418-001-275] Light Bar Support Weldment RH i See notes section for usage notes on this part 418-001-275
Price on Request
34 Washer Light Bar Support [418-001-280] Washer Light Bar Support i See notes section for usage notes on this part 418-001-280
Price on Request
35 Tail Light Cable - 1.3M - 4C130C [421-000-064] Tail Light Cable - 1.3M - 4C130C 421-000-064
Price on Request
36 Reflector - Rectangular - Amber - Stick-On [421-000-192] Reflector - Rectangular - Amber - Stick-On 421-000-192
Price on Request
37 Reflector - Rectangular - White - Stick-On [421-000-193] Reflector - Rectangular - White - Stick-On 421-000-193
Price on Request
38 Light & Reflector - Side - Amber [421-000-201] Light & Reflector - Side - Amber 421-000-201
Price on Request
39 Light & Reflector - Front - White [421-000-202] Light & Reflector - Front - White 421-000-202
Price on Request
40 Loom - Light Bar Wiring Loom - Subassembly [421-000-203] Loom - Light Bar Wiring Loom - Subassembly 421-000-203
Price on Request
41 Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug [421-000-393] Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug 421-000-393
Price on Request
42 Light - Number Plate [421-000-394] Light - Number Plate 421-000-394
Price on Request
43 2 Core Splitter Plug - 2 Way [421-000-450] 2 Core Splitter Plug - 2 Way 421-000-450
Price on Request
44 Trailer Plug inc. Cable 1m /w Metal Plug [421-000-586] Trailer Plug inc. Cable 1m /w Metal Plug 421-000-586
$313.23
45 Chain - Trailier Safety [450-000-109] Chain - Trailier Safety 450-000-109
Price on Request
46 Sign - Safety Triangle [450-000-124] Sign - Safety Triangle 450-000-124
Price on Request
47 Light Bar Bracket Weldment LH [418-001-002] Light Bar Bracket Weldment LH i See notes section for usage notes on this part 418-001-002
Price on Request
48 Light Bar Bracket Weldment RH [418-001-003] Light Bar Bracket Weldment RH i See notes section for usage notes on this part 418-001-003
Price on Request
49 Washer - Fender [308-060-076] Washer - Fender 308-060-076
Price on Request
