NOTES:

Part #	Number on image	Usage Notes
419-000-052	8	Includes Lynch Pin Includes Lynch Pin
301-616-143	10	OPTION - Drawbar Clevis OPTION - Drawbar Clevis
301-216-403	11	OPTION - Drawbar Clevis & Adapter Plate OPTION - Drawbar Clevis & Adapter Plate
301-616-153	12	OPTION - Drawbar Clevis & Adapter Plate OPTION - Drawbar Clevis & Adapter Plate
418-000-529	13	OPTION - Drawbar Clevis. OPTION - Drawbar Clevis & Adapter Plate OPTION - Drawbar Clevis. OPTION - Drawbar Clevis & Adapter Plate
418-000-542	14	OPTION - Drawbar Clevis & Adapter Plate OPTION - Drawbar Clevis & Adapter Plate

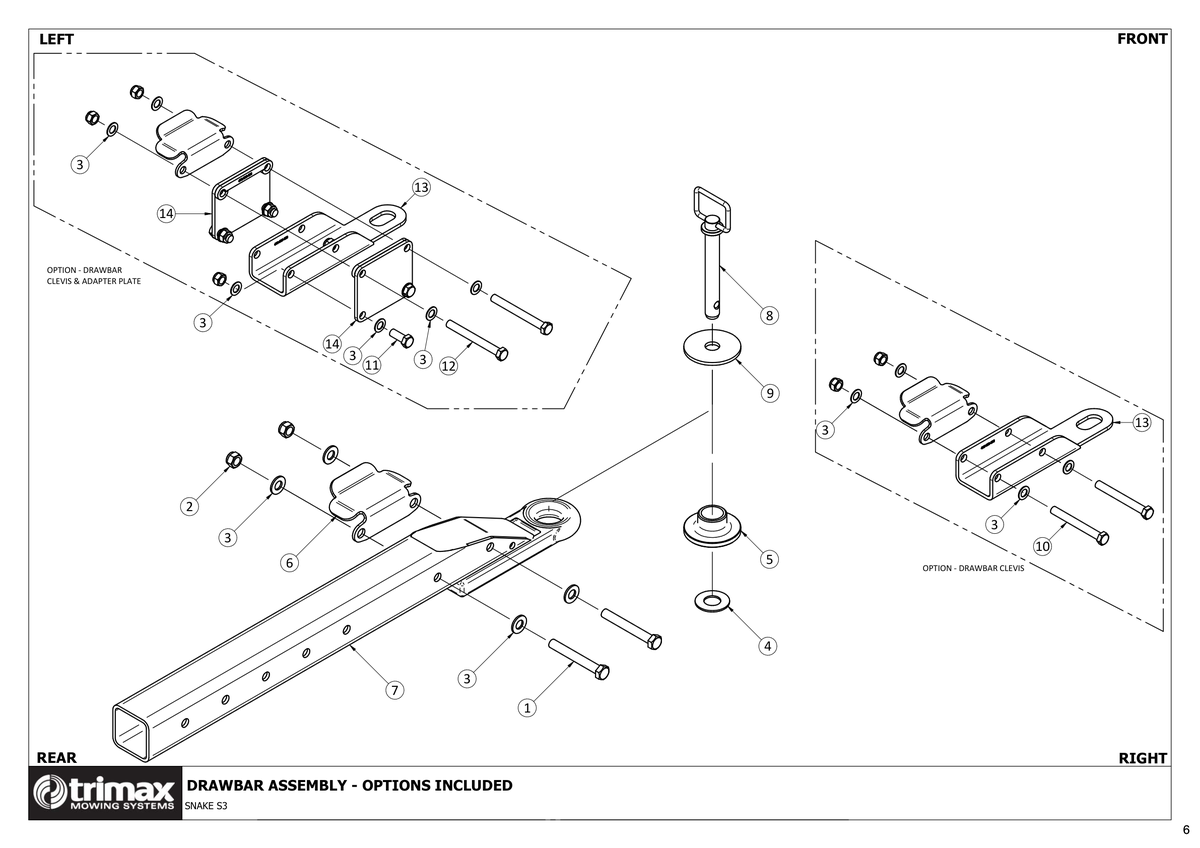

780 - Snake S3 - Drawbar Assembly

Grouped product items
No.	Product Name	Price
1	Bolt 301-616-123 More Info >	$3.80
2	Nut - Nyloc 307-216-053 More Info >	$1.02
3	Washer - Heavy Flat 308-160-063 More Info >	$1.65
4	Washer - Heavy Flat 308-270-063 More Info >	$6.36
5	Wear Bush - Tow Eye 402-840-130 More Info >	$80.50
6	PTO Hanger - Pegasus Vulcan Snake 418-000-782 More Info >	$57.78
7	Drawbar Weldment - Powder Coated 418-001-068	$0.00
8	Pin - Top Link Cat. 2 Ø1" x 160 i See notes section for usage notes on this part 419-000-052 More Info >	$26.08
9	Hitch Pin - 1" - Washer - ZP 419-000-080	$0.00
10	Bolt i See notes section for usage notes on this part 301-616-143 More Info >	$8.16
11	Bolt i See notes section for usage notes on this part 301-216-403 More Info >	$3.85
12	Bolt i See notes section for usage notes on this part 301-616-153 More Info >	$8.37
13	Folding i See notes section for usage notes on this part 418-000-529 More Info >	$80.93
14	Clevis Plate Weldment i See notes section for usage notes on this part 418-000-542 More Info >	$149.86
