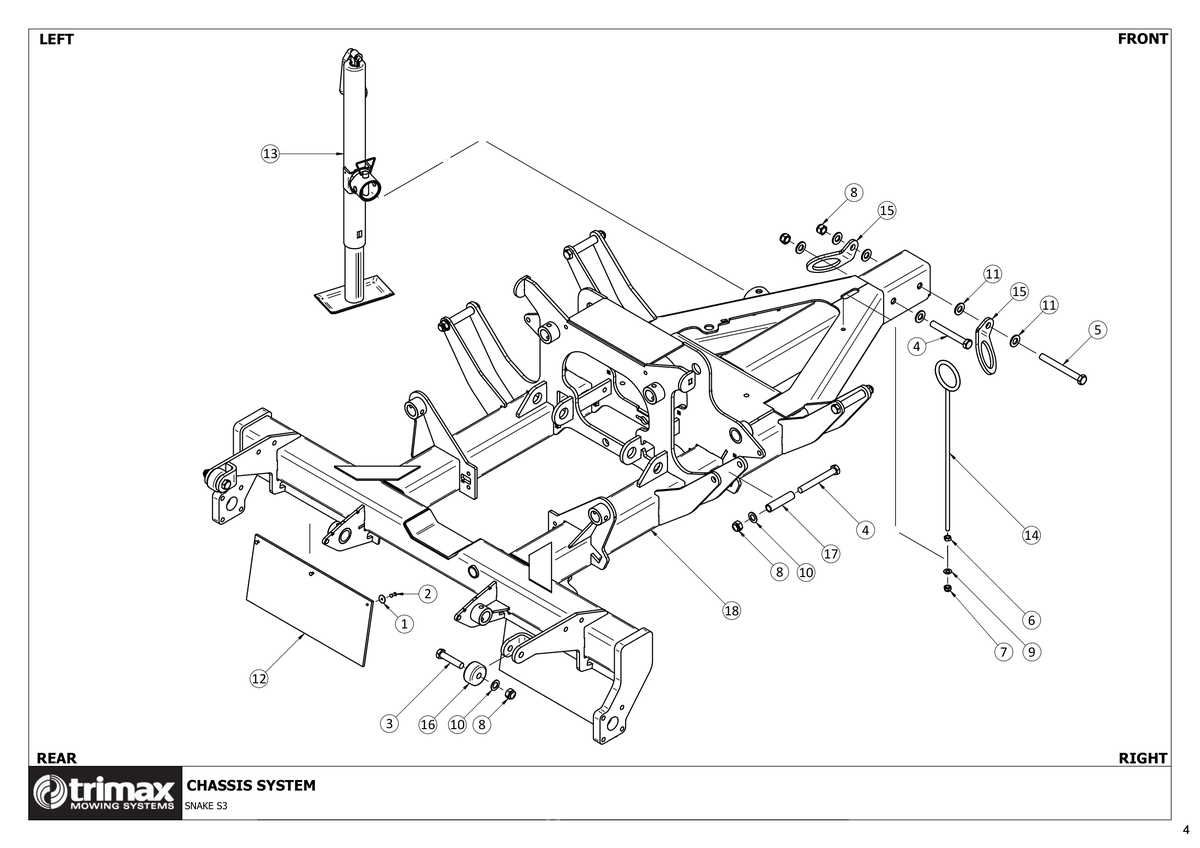

780 - Snake S3 - Chassis System

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
$1.10
2 Blind Rivet [213-000-001] Blind Rivet 213-000-001
$1.47
3 Bolt [301-216-753] Bolt 301-216-753
$6.63
4 Bolt [301-616-133] Bolt 301-616-133
$10.82
5 Bolt [301-616-153] Bolt 301-616-153
$8.37
6 Nut - Plain [307-210-013] Nut - Plain 307-210-013
$0.48
7 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
$0.57
8 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
$1.02
9 Washer - Flat [308-100-013] Washer - Flat 308-100-013
$0.54
10 Washer - Flat [308-160-013] Washer - Flat 308-160-013
$0.79
11 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
12 Debris Flap [410-000-259] Debris Flap 410-000-259
$48.66
13 Parking Jack Assembly [418-000-217] Parking Jack Assembly 418-000-217
$353.92
14 Guide [418-000-466] Guide 418-000-466
$50.05
15 Lug - Tie Down [418-000-851] Lug - Tie Down 418-000-851
$54.28
16 Roller - Guide [419-000-036] Roller - Guide 419-000-036
$51.54
17 Bush - Transport Guide [419-000-041] Bush - Transport Guide 419-000-041
$14.12
