NOTES:

Part # Number on image Usage Notes
410-000-363 36
  • For Clutch Cover with Brushes included, use P/N: 410-000-371
410-000-370 42
  • For Clutch Cover with Brushes included, use P/N: 410-000-371
421-000-567 56
  • Includes wiring

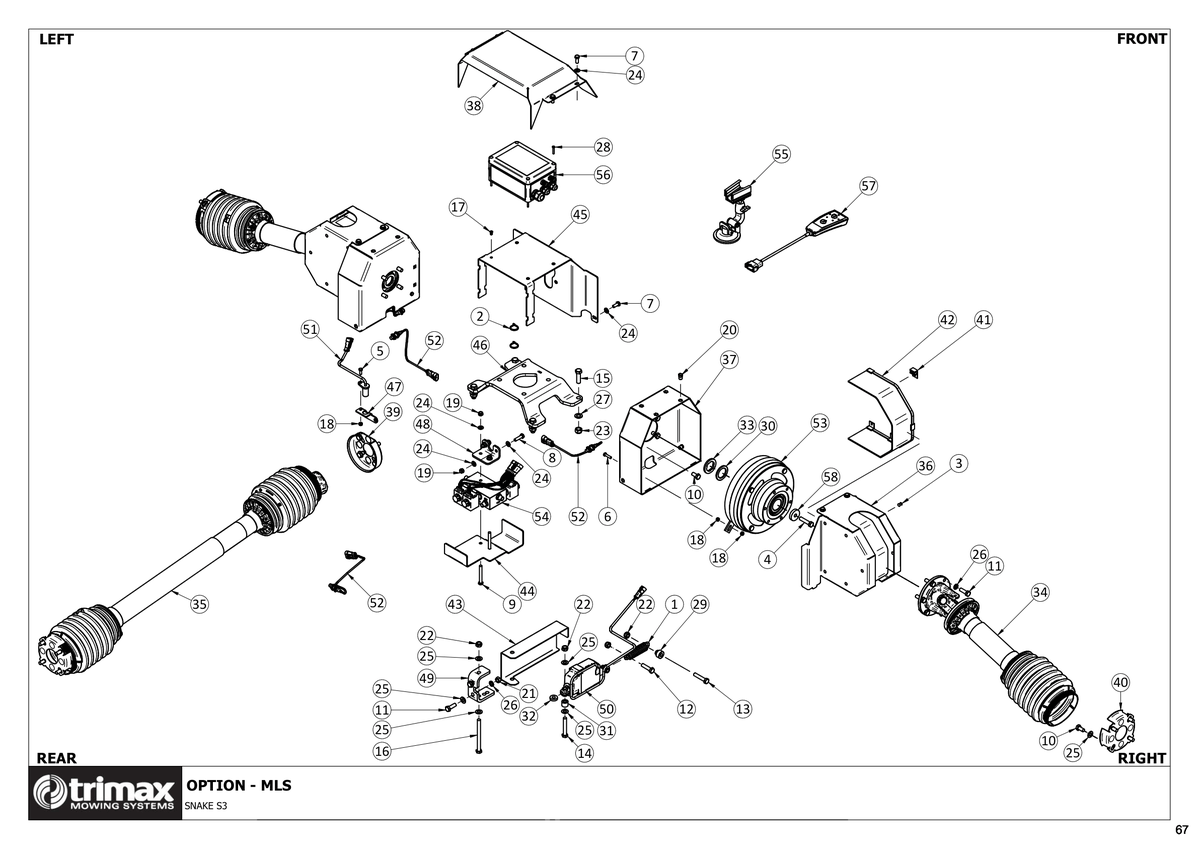

780 - Snake S3 400 - MLS

Snake S3 400

Grouped product items
No. Image Product Name Price Quantity
1 Spring - Tension [207-000-008] Spring - Tension 207-000-008
$84.06
2 Cable tie [210-900-014] Cable tie 210-900-014
$0.19
3 Blind Rivet [213-443-250] Blind Rivet 213-443-250
$0.57
4 Bolt [301-110-453] Bolt 301-110-453
Price on Request
5 Bolt - Hex Head - M6 x 16 - Trimax Specification [301-206-163] Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163
Price on Request
6 Bolt - Hex Head - M6 x 25 - Trimax Specification [301-206-253] Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253
$0.59
7 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
$0.90
8 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
$0.62
9 Bolt - Hex Head - M8 x 65 - Trimax Specification [301-208-653] Bolt - Hex Head - M8 x 65 - Trimax Specification 301-208-653
$3.27
10 Bolt - Hex Head - M10 x 20 - Trimax Specification [301-210-203] Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203
$1.61
11 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
$0.86
12 Bolt - Hex Head - M10 x 40 - Trimax Specification [301-210-403] Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403
Price on Request
13 Bolt - Hex Head - M10 x 50 - Trimax Specification [301-210-503] Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503
$1.22
14 Bolt - Hex Head - M10 x 65 - Trimax Specification [301-210-653] Bolt - Hex Head - M10 x 65 - Trimax Specification 301-210-653
Price on Request
15 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
$2.93
16 Bolt - Hex Head - M10 x 120 - Trimax Specification [301-610-123] Bolt - Hex Head - M10 x 120 - Trimax Specification 301-610-123
Price on Request
17 Nut - Rivnut M4 ZP [307-204-413] Nut - Rivnut M4 ZP 307-204-413
Price on Request
18 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
$0.54
19 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
$0.90
20 Nut - Rivnut M8 ZP [307-208-413] Nut - Rivnut M8 ZP 307-208-413
Price on Request
21 Nut - Plain M10 - Trimax Specification - [307-210-013] Nut - Plain M10 - Trimax Specification - 307-210-013
$0.48
22 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
$0.57
23 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
$0.67
24 Washer - Flat [308-080-013] Washer - Flat 308-080-013
$0.05
25 Washer - Flat [308-100-013] Washer - Flat 308-100-013
$0.54
26 Washer - Spring [308-100-043] Washer - Spring 308-100-043
$0.18
27 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
$0.45
28 Pan Head Machine Screw - Philips M4 x 25 SS 304 [315-204-256] Pan Head Machine Screw - Philips M4 x 25 SS 304 315-204-256
Price on Request
29 Bush [402-000-097] Bush 402-000-097
Price on Request
30 Thrust Washer [402-000-104] Thrust Washer 402-000-104
Price on Request
31 Bush - Lock Actuator [402-000-106] Bush - Lock Actuator 402-000-106
$37.24
32 Bush - Lock Actuator [402-000-107] Bush - Lock Actuator 402-000-107
Price on Request
33 Spacer - 6 Spline Spacer Washer [402-000-113] Spacer - 6 Spline Spacer Washer 402-000-113
Price on Request
35 PTO Shaft Assembly - Splined [406-000-054] PTO Shaft Assembly - Splined 406-000-054
Price on Request
36 Weldment - Clutch Cover - Snake MLS [410-000-363] Weldment - Clutch Cover - Snake MLS i See notes section for usage notes on this part 410-000-363
Price on Request
37 Folding - Clutch Cover Back - Snake MLS [410-000-364] Folding - Clutch Cover Back - Snake MLS 410-000-364
Price on Request
38 Folding - Enclosure Cover - Snake MLS [410-000-365] Folding - Enclosure Cover - Snake MLS 410-000-365
Price on Request
39 Mounting Plate - 125mm Flex Cone incl Sensor Cutout [410-000-367] Mounting Plate - 125mm Flex Cone incl Sensor Cutout 410-000-367
Price on Request
40 Mounting Plate - 125mm Flex Cone (Bolt Cutouts) [410-000-368] Mounting Plate - 125mm Flex Cone (Bolt Cutouts) 410-000-368
Price on Request
41 Extrusion - Brush Mounting [410-000-369] Extrusion - Brush Mounting 410-000-369
Price on Request
42 Brush - Clutch Cover [410-000-370] Brush - Clutch Cover i See notes section for usage notes on this part 410-000-370
Price on Request
43 Cover - Unlock Actuator - Snake S3 - Powder Coated [410-000-569] Cover - Unlock Actuator - Snake S3 - Powder Coated 410-000-569
Price on Request
44 Mount Bracket Folding [418-000-398] Mount Bracket Folding 418-000-398
Price on Request
45 Folding - Enclosure Mount - Snake MLS [418-000-785] Folding - Enclosure Mount - Snake MLS 418-000-785
Price on Request
46 Folding - Gearbox Mount - Snake [418-000-786] Folding - Gearbox Mount - Snake 418-000-786
Price on Request
47 Folding - PTO Sensor Mount - Snake MLS [418-000-787] Folding - PTO Sensor Mount - Snake MLS 418-000-787
Price on Request
48 Mount Bracket Folding - Valve Bank - Snake [418-000-788] Mount Bracket Folding - Valve Bank - Snake 418-000-788
Price on Request
49 Mount Bracket - Unlock Actuator - Snake S3 - Powder Coated [418-001-089] Mount Bracket - Unlock Actuator - Snake S3 - Powder Coated 418-001-089
Price on Request
50 Actuator Assembly [421-000-093] Actuator Assembly 421-000-093
$909.29
51 Sensor & Cable Assembly - PTO Sensor - MLS [421-000-117] Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117
$349.13
52 Sensor & Cable Assembly - Prox Sensor - MLS [421-000-118] Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118
$331.70
53 Clutch & Plug Assembly - MLS [421-000-138] Clutch & Plug Assembly - MLS 421-000-138
$2,699.00
54 Valve bank and superseal plug assembly - Rear valve NC for Snake MLS [421-000-168] Valve bank and superseal plug assembly - Rear valve NC for Snake MLS 421-000-168
Price on Request
55 Cab Controller Mount Assembly - MLS [421-000-172] Cab Controller Mount Assembly - MLS 421-000-172
$139.10
56 Control box - MLS with Drive Protect - Snake S2 (v3) [421-000-567] Control box - MLS with Drive Protect - Snake S2 (v3) i See notes section for usage notes on this part 421-000-567
Price on Request
57 Cab Controller Assembly - MLS with Drive Protect [421-000-612] Cab Controller Assembly - MLS with Drive Protect 421-000-612
$1,137.00
58 Retaining Washer - Electric Clutch [450-844-160] Retaining Washer - Electric Clutch 450-844-160
Price on Request
