NOTES:

Part # Number on image Usage Notes
404-000-141 15
  • Option
404-000-142 16
  • Option
414-000-174 19
  • For 8" Bubble Roller Weldment - Heavy Duty - Fury, Use P/N: 414-000-177
414-000-175 20
  • For 8" Rear Roller Weldment - Heavy Duty - Fury, Use P/N: 414-000-187

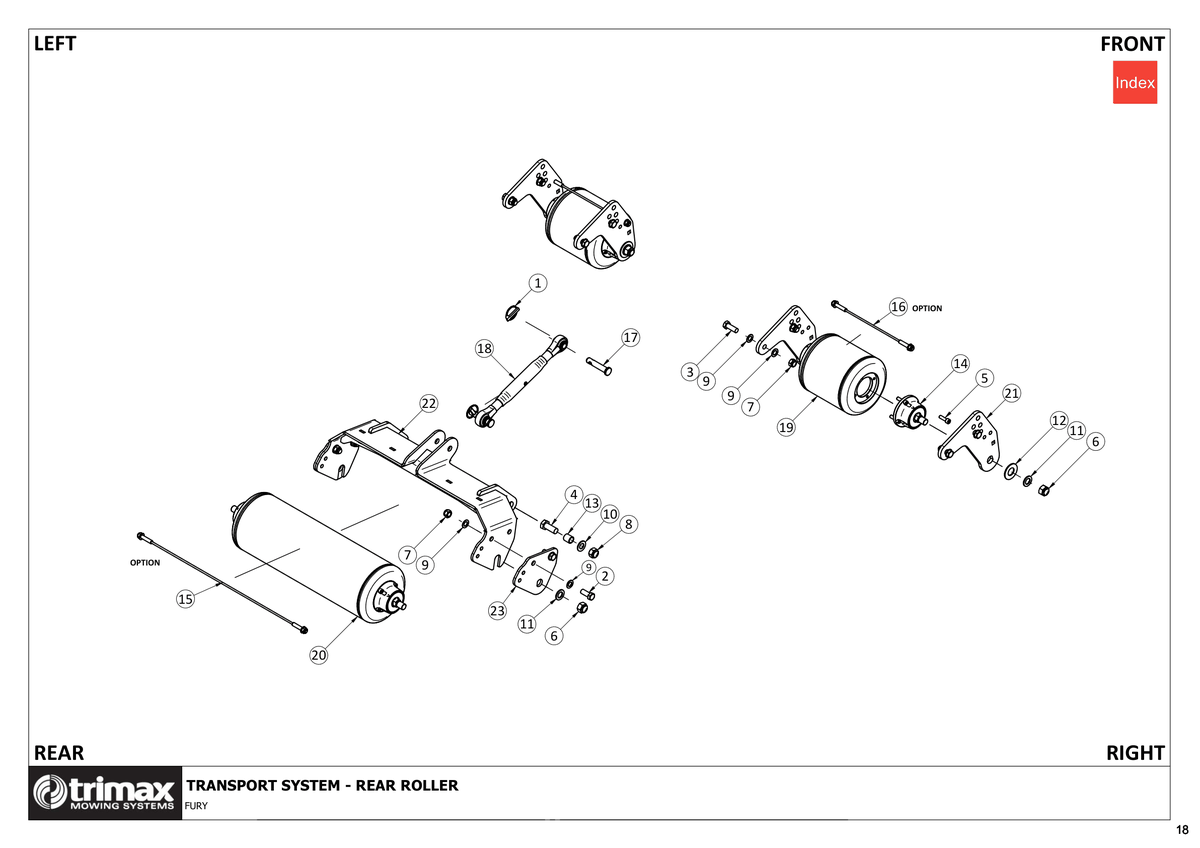

759 - Fury S1 200 - Transport System - Rear Roller

Fury S1 200

Grouped product items
No. Image Product Name Price Quantity
1 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
$2.76
2 Bolt - Hex Head - M16 x 40 - Trimax Specification [301-216-403] Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403
$3.85
3 Bolt - Hex Head - M16 x 45 - Trimax Specification [301-216-453] Bolt - Hex Head - M16 x 45 - Trimax Specification 301-216-453
$7.66
4 Bolt - Hex Head - M20 x 50 - Trimax Specification [301-220-503] Bolt - Hex Head - M20 x 50 - Trimax Specification 301-220-503
$2.51
5 Cap Screw - Socket Head - M10 x 35 - Trimax Specification [303-210-353] Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353
$3.09
6 Nut - Hex Nyloc - M22 x 1.5 [307-122-053] Nut - Hex Nyloc - M22 x 1.5 307-122-053
$7.60
7 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
$1.02
8 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
$1.57
9 Washer - Flat [308-160-013] Washer - Flat 308-160-013
$0.79
10 Washer - Flat [308-200-013] Washer - Flat 308-200-013
$1.16
11 Washer [308-220-013] Washer 308-220-013
Price on Request
12 Washer - Heavy Flat [308-270-063] Washer - Heavy Flat 308-270-063
$6.36
13 Inner Ring - Lock Bush [401-000-018] Inner Ring - Lock Bush 401-000-018
$20.70
14 Roller Bearing Assembly - Titan [401-000-035] Roller Bearing Assembly - Titan 401-000-035
$293.00
15 Roller Scraper [404-000-141] Roller Scraper i See notes section for usage notes on this part 404-000-141
Price on Request
16 Roller Scraper [404-000-142] Roller Scraper i See notes section for usage notes on this part 404-000-142
Price on Request
17 Top Link Pin [412-000-727] Top Link Pin 412-000-727
$18.61
18 Top Link Adj. [412-000-728] Top Link Adj. 412-000-728
$157.16
19 8" Bubble Roller Weldment - Standard - Fury [414-000-174] 8" Bubble Roller Weldment - Standard - Fury i See notes section for usage notes on this part 414-000-174
Price on Request
20 8" Rear Roller Weldment - Standard - Fury [414-000-175] 8" Rear Roller Weldment - Standard - Fury i See notes section for usage notes on this part 414-000-175
Price on Request
21 Roller Mount - Bubble Roller - Fury - Zinc Plated [414-000-179] Roller Mount - Bubble Roller - Fury - Zinc Plated 414-000-179
Price on Request
22 Roller Mount - Rear Roller - Weldment - Fury [414-000-180] Roller Mount - Rear Roller - Weldment - Fury 414-000-180
Price on Request
23 Clamping Plate - Rear Roller - Fury [414-000-185] Clamping Plate - Rear Roller - Fury 414-000-185
Price on Request
