NOTES:

Part # Number on image Usage Notes
410-000-495 21
  • For Castors - Rear Flap - PVK - Centre, Use P/N: 410-000-546
410-000-507 28
  • For PVK - LH & RH Rear Castor Flap - 200, Use P/N: 410-000-545
502-000-290 35
  • For Body - Weldment - Heavy Duty - 200, Use P/N: 502-000-291

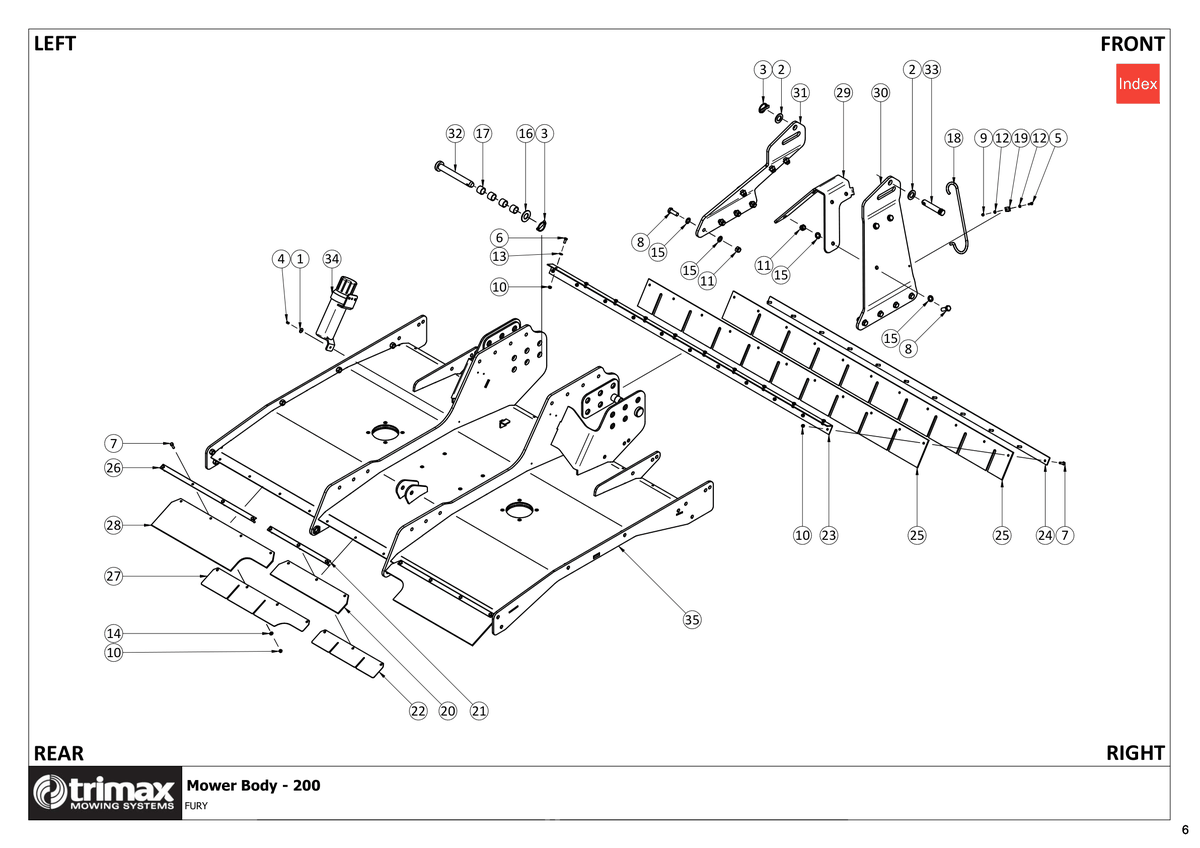

759 - Fury S1 200 - Mower Body

Fury S1 200

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
$1.10
2 Washer Flat - 1" x 1-15/16" - Hardened - Trimax Specification [108-163-113] Washer Flat - 1" x 1-15/16" - Hardened - Trimax Specification 108-163-113
$5.92
3 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
$2.76
4 Blind Rivet [213-000-004] Blind Rivet 213-000-004
$1.02
5 Bolt - Hex Head - M6 x 25 - Trimax Specification [301-206-253] Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253
$0.59
6 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
$0.62
8 Bolt - Hex Head - M16 x 45 - Trimax Specification [301-216-453] Bolt - Hex Head - M16 x 45 - Trimax Specification 301-216-453
$7.66
9 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
$0.54
10 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
$0.90
11 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
$1.02
12 Washer - Flat [308-060-013] Washer - Flat 308-060-013
$0.04
13 Washer - Flat [308-080-013] Washer - Flat 308-080-013
$0.05
14 Washer - Flat [308-080-016] Washer - Flat 308-080-016
$0.12
15 Washer - Flat [308-160-013] Washer - Flat 308-160-013
$0.79
16 Washer - Heavy Flat [308-270-063] Washer - Heavy Flat 308-270-063
$6.36
17 Link Pin [402-000-162] Link Pin 402-000-162
Price on Request
18 PTO Hanger [406-000-059] PTO Hanger 406-000-059
$99.20
19 Retainer Clip - PTO Hanger [406-000-060] Retainer Clip - PTO Hanger 406-000-060
$8.90
20 Rear Roller Center Flap - PVK - Fury [410-000-494] Rear Roller Center Flap - PVK - Fury 410-000-494
Price on Request
21 Castors Rear Center Flap - Retaining Strip - Fury [410-000-495] Castors Rear Center Flap - Retaining Strip - Fury i See notes section for usage notes on this part 410-000-495
Price on Request
22 Rear Roller Center Flap - PVK Support - Fury [410-000-496] Rear Roller Center Flap - PVK Support - Fury 410-000-496
Price on Request
23 Angled Retaining Strip - Front Flap - 200 - Fury [410-000-501] Angled Retaining Strip - Front Flap - 200 - Fury 410-000-501
Price on Request
24 Retaining Strip - Front Flap - 200 - Fury [410-000-502] Retaining Strip - Front Flap - 200 - Fury 410-000-502
Price on Request
25 PVK Flap - Front Flap - 200 - Fury [410-000-503] PVK Flap - Front Flap - 200 - Fury 410-000-503
Price on Request
26 Retaining Strip - LH And RH Rear Roller Flap - 200 - Fury [410-000-505] Retaining Strip - LH And RH Rear Roller Flap - 200 - Fury 410-000-505
Price on Request
27 PVK Support - LH And RH Rear Roller Flap -200 - Fury [410-000-506] PVK Support - LH And RH Rear Roller Flap -200 - Fury 410-000-506
Price on Request
28 PVK - LH And RH Rear Roller Flap - 200 - Fury [410-000-507] PVK - LH And RH Rear Roller Flap - 200 - Fury i See notes section for usage notes on this part 410-000-507
Price on Request
29 Gusset - Headstock - Fury [413-000-121] Gusset - Headstock - Fury 413-000-121
Price on Request
30 LH Folding - Headstock - Fury [413-000-122] LH Folding - Headstock - Fury 413-000-122
Price on Request
31 RH Folding - Headstock - Fury [413-000-123] RH Folding - Headstock - Fury 413-000-123
Price on Request
32 Lower Link Pin - Ø28.5x205mm - 12mm Hole [419-000-071] Lower Link Pin - Ø28.5x205mm - 12mm Hole 419-000-071
$57.00
33 Top Link Pin Cat. 2 [419-000-072] Top Link Pin Cat. 2 419-000-072
Price on Request
34 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
$45.45
35 Body - Weldment - 200 - Fury [502-000-290] Body - Weldment - 200 - Fury i See notes section for usage notes on this part 502-000-290
Price on Request
