NOTES:

Part # Number on image Usage Notes
412-000-491 22
  • Use part number 412-000-543 for Side Channel Weldment - LocTek - ST3 SR LH Galvanised.
412-000-724 23
  • 412-000-724 - Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3. Individual parts: 412-000-611 - Set Screw - M16 x 150 ZP 8.8 - Stealth S3 Front & Rear; 412-850-260 - Collar - Height Adjuster Current; 202-447-980 - Roll Pin - 4 x 22 SS.
412-000-725 24
  • 412-000-725 - Height Adj. Screw Assy - Wing Outer w Collar/Pin 180mm ST3. Individual parts: 412-000-609 - Set Screw - M16 x 180 ZP 8.8 - Stealth S3 Wings; 412-850-260 - Collar - Height Adjuster Current; 202-447-980 - Roll Pin - 4 x 22 SS.

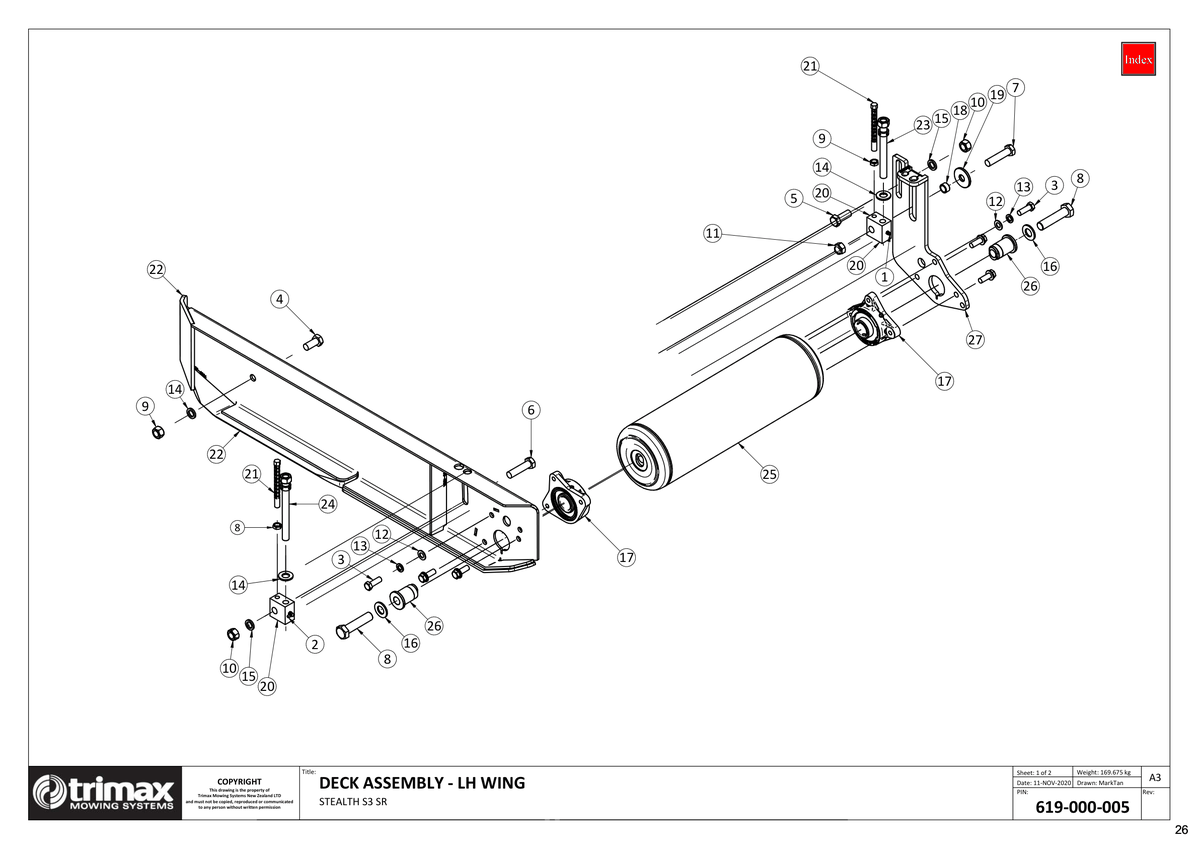

758 - Stealth S3 SR 340 - LH Wing Transport System

Stealth S3 SR 340

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-600] Grease Nipple 208-442-600
$3.61
2 Grease Nipple [208-442-650] Grease Nipple 208-442-650
$5.89
3 Bolt [301-212-353] Bolt 301-212-353
$2.71
4 Bolt [301-216-353] Bolt 301-216-353
$3.64
5 Bolt [301-216-403] Bolt 301-216-403
$3.85
6 Bolt [301-216-653] Bolt 301-216-653
$6.76
7 Bolt [301-216-703] Bolt 301-216-703
$4.11
8 Bolt [301-220-853] Bolt 301-220-853
$14.19
9 Nut - Half [307-212-023] Nut - Half 307-212-023
$1.13
10 Nut - Plain [307-216-013] Nut - Plain 307-216-013
$1.61
11 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
$1.02
12 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
13 Washer - Spring [308-120-043] Washer - Spring 308-120-043
$0.45
14 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
15 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
$5.63
16 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
$1.02
17 Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide [401-000-032] Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide 401-000-032
$113.00
18 Spacer Tube [402-000-091] Spacer Tube 402-000-091
$11.17
19 Heavy Washer [402-840-560] Heavy Washer 402-840-560
$42.06
20 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
$86.67
21 Height Indicator - Metric [412-000-256] Height Indicator - Metric 412-000-256
$37.45
22 Side Channel Weldment - LocTek - ST3 SR LH [412-000-491] Side Channel Weldment - LocTek - ST3 SR LH i See notes section for usage notes on this part 412-000-491
$995.69
23 Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 [412-000-724] Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 i See notes section for usage notes on this part 412-000-724
$82.25
24 Height Adj. Screw Assy - Wing Outer w Collar/Pin [412-000-725] Height Adj. Screw Assy - Wing Outer w Collar/Pin i See notes section for usage notes on this part 412-000-725
$101.79
25 Roller Weldment - Rear Wing [414-000-075] Roller Weldment - Rear Wing 414-000-075
$428.00
26 Roller Stub Sleeve - LocTek [414-000-076] Roller Stub Sleeve - LocTek 414-000-076
$59.00
27 Roller Mount - Inner Wing LH [414-000-078] Roller Mount - Inner Wing LH 414-000-078
$282.35
