NOTES:

Part #	Number on image	Usage Notes
401-000-032	14	460-000-207 - Bearing Protection Kit is also available as an option for the mowers prior to serial number 719-340-002-0172, for ease of greasing roller bearings as there was no grease nipple access holes on the roller mounts.
412-000-505	17	719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
412-000-506	18	719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
412-000-724	19	412-000-724 - Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3. Individual parts: 412-000-611 - Set Screw - M16 x 150 ZP 8.8 - Stealth S3 Front & Rear; 412-850-260 - Collar - Height Adjuster Current; 202-447-980 - Roll Pin - 4 x 22 SS.

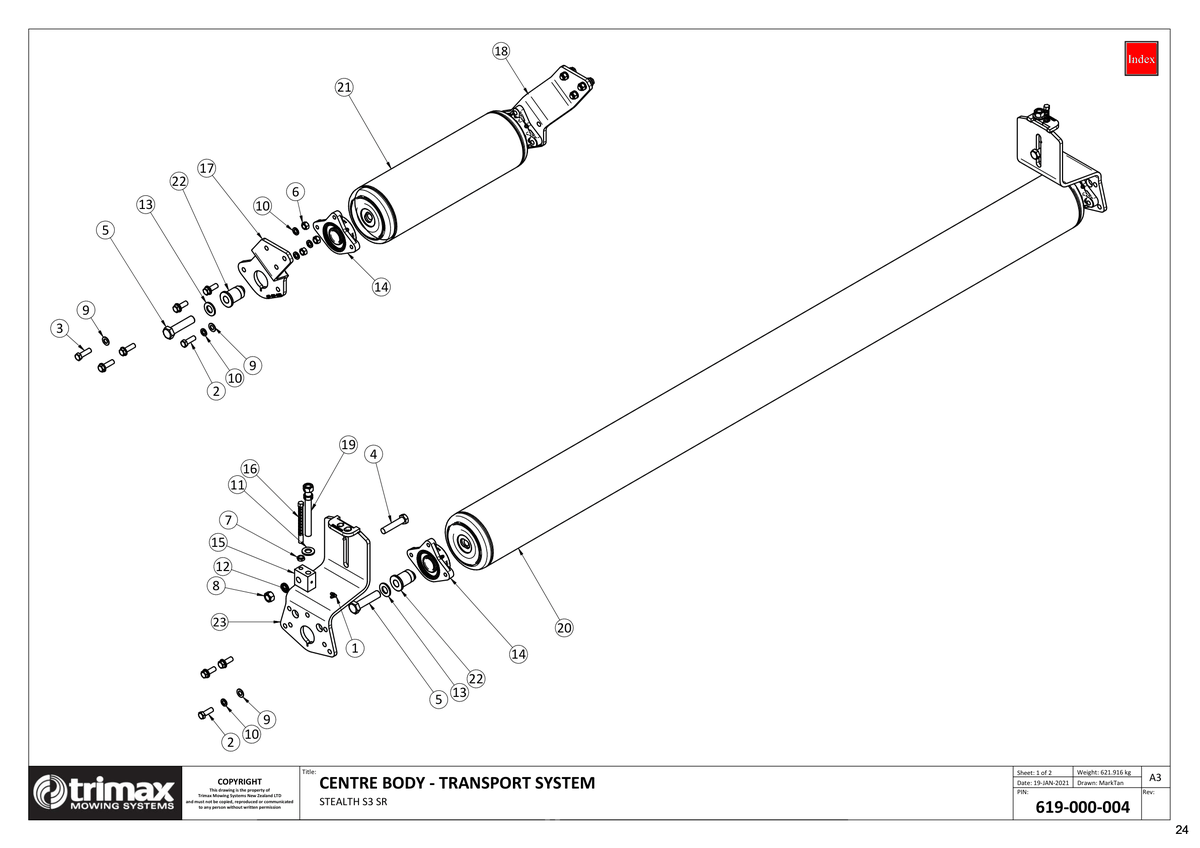

758 - Stealth S3 SR 340 - Centre Body Transport System

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
2	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
3	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
4	Bolt - Hex Head - M16 x 75 - Trimax Specification 301-216-753 More Info >	$6.63
5	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	$14.19
6	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
7	Nut - Half 307-212-023 More Info >	$1.13
8	Nut - Plain 307-216-013 More Info >	$1.61
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
10	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
11	Washer - Heavy Flat 308-160-063 More Info >	$1.65
12	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
13	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
14	Roller Bearing Assembly - TriBolt - Trimax Specification i See notes section for usage notes on this part 401-000-032 More Info >	$113.00
15	Height Adjuster Block 412-000-255 More Info >	$86.67
16	Height Indicator - Metric 412-000-256 More Info >	$37.45
17	Antiscalp Roller Mount LH Centre Front - ST3 SR i See notes section for usage notes on this part 412-000-505 More Info >	$243.07
18	Antiscalp Roller Mount RH Centre Front - ST3 SR i See notes section for usage notes on this part 412-000-506 More Info >	$243.07
19	Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 i See notes section for usage notes on this part 412-000-724 More Info >	$82.25
20	Roller Weldment - LocTek Centre Body Rear 414-000-072 More Info >	$1,070.00
21	Roller Weldment - Rear Wing 414-000-075 More Info >	$428.00
22	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	$59.00
23	Roller Mount - Centre Body - Rear 414-000-080 More Info >	$321.00
