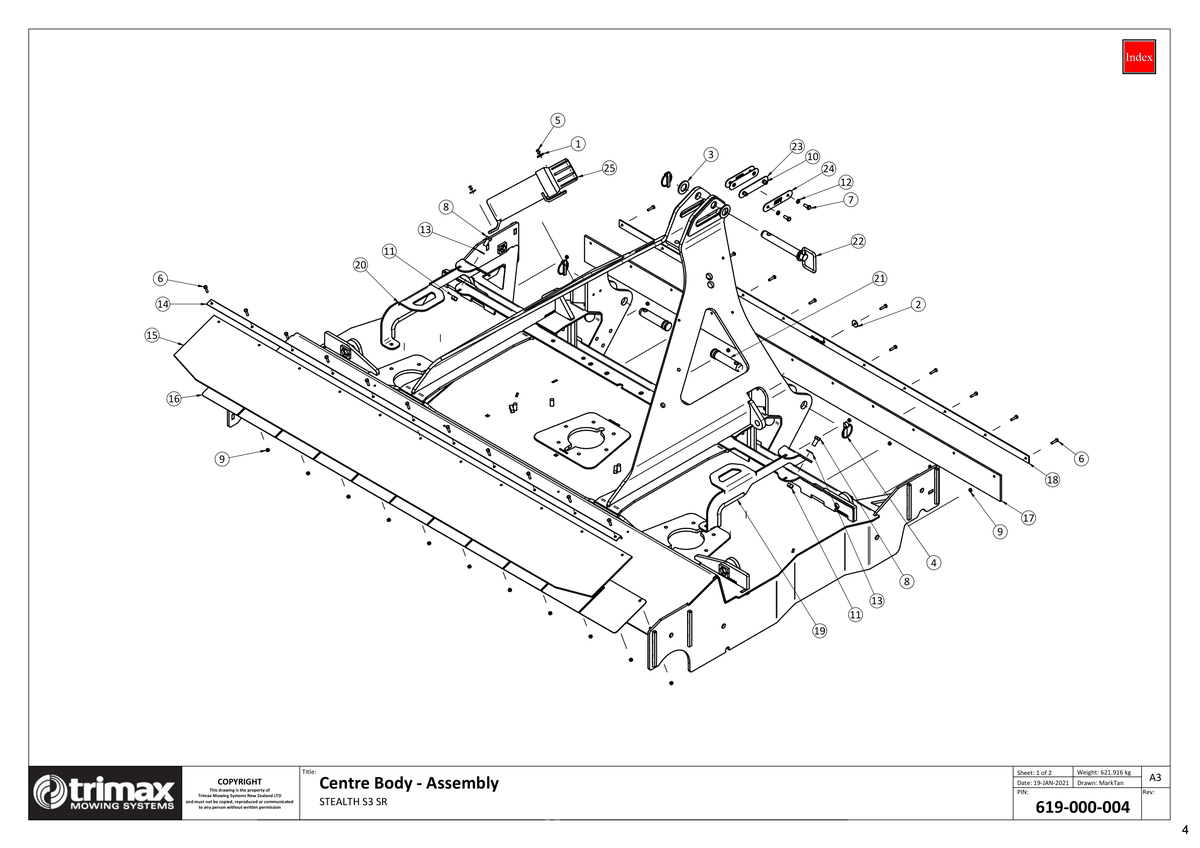

758 - Stealth S3 SR 340 - Centre Body Assembly

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	$1.10
2	Washer - Fender 108-041-613 More Info >	$0.20
3	Washer Flat - 1" x 1-15/16" - Hardened - Trimax Specification 108-163-113 More Info >	$5.92
4	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
5	Blind Rivet 213-000-004 More Info >	$1.02
6	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	$0.59
7	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
8	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	$2.93
9	Nut - Nyloc 307-206-053 More Info >	$0.54
10	Nut - Rivnut M8 ZP 307-208-423	$1.20
11	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
12	Washer - Spring 308-080-043 More Info >	$0.12
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
14	Clamp Strip 410-000-103 More Info >	$127.01
15	Flap 410-000-268 More Info >	$220.21
16	Flap Stiffener 410-000-271 More Info >	$234.97
17	Safety Flap Front - PVK - Stealth ST3 SR 410-000-358 More Info >	$129.76
18	Clamp Strip Centre Front - Stealth ST3 SR 410-000-360 More Info >	$67.04
19	Cover Support Weldment 417-001-181 More Info >	$150.34
20	Cover Support Weldment - Centre Body LH 417-001-182 More Info >	$124.27
21	Pin - Linkage - Lower Cat. 2 ��1-1/8" x 95mm 419-000-051 More Info >	$35.70
22	Pin - Top Link - Includes Linch Pin 419-000-052 More Info >	$26.08
23	Slot Cover - Top Link SR Outer 419-000-053 More Info >	$17.24
24	Slot Cover - Top Link SR Inner 419-000-054 More Info >	Price on Request
25	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	$45.45
