NOTES:

Part # Number on image Usage Notes
401-000-032 18
  • 401-000-022 Roller bearing kit is obsolete and is replaced by 401-000-032 Brg kit with twin grease holes
412-000-273 25
  • Weld on wear Skids also available: 412-000-275 Wear Skid RH Stealth S3. Galvanised alternative: 412-000-324 Side Channel Wing RH (Galvanised) Stealth S3
412-000-724 26
  • 412-000-724 Height Adj. Screw Assy individual parts: 412-000-611 Set Screw M16 x 150 ZP 8.8, 412-850-260 Collar Height Adjuster Current, 202-447-980 Roll Pin 4 x 22 SS
412-000-725 27
  • 412-000-725 Height Adj. Screw Assy individual parts: 412-000-609 Set Screw M16 x 180 ZP 8.8, 412-850-260 Collar Height Adjuster Current, 202-447-980 Roll Pin 4 x 22 SS
414-000-079 31
  • Serial number 719-340-002-0172 onwards has provision for greasing the roller bearing through the side roller mount plate holes.

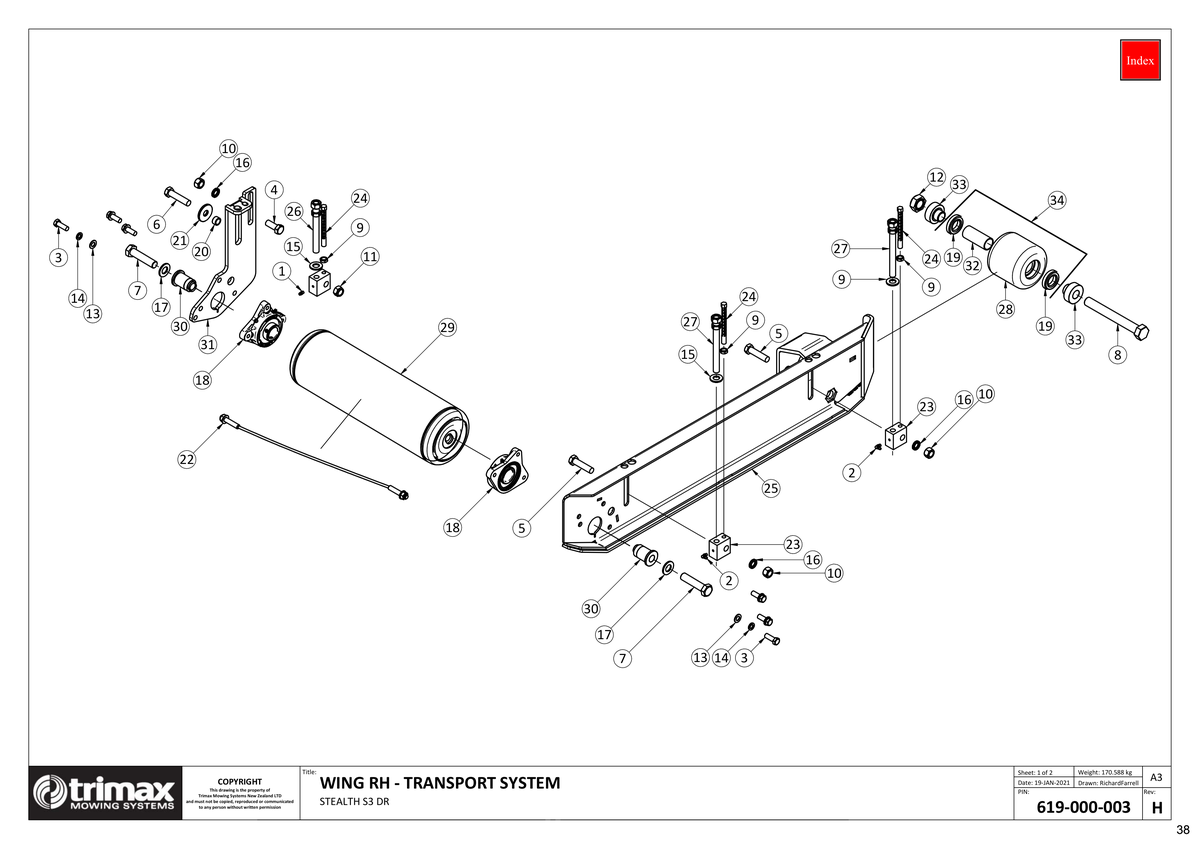

758 - Stealth S3 340 - Transport System - Wing RH

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-600] Grease Nipple 208-442-600
$3.61
2 Grease Nipple [208-442-650] Grease Nipple 208-442-650
$5.89
3 Bolt [301-212-353] Bolt 301-212-353
$2.71
4 Bolt [301-216-403] Bolt 301-216-403
$3.85
5 Bolt [301-216-653] Bolt 301-216-653
$6.76
6 Bolt [301-216-703] Bolt 301-216-703
$4.11
7 Bolt [301-220-853] Bolt 301-220-853
$14.19
8 Bolt [301-624-203] Bolt 301-624-203
$48.73
9 Nut - Half [307-212-023] Nut - Half 307-212-023
$1.13
10 Nut - Plain [307-216-013] Nut - Plain 307-216-013
$1.61
11 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
$1.02
12 Nut Nyloc [307-224-053] Nut Nyloc 307-224-053
$6.42
13 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
14 Washer - Spring [308-120-043] Washer - Spring 308-120-043
$0.45
15 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
16 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
$5.63
17 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
$1.02
18 Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide [401-000-032] Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide i See notes section for usage notes on this part 401-000-032
$113.00
19 Bearing [401-023-700] Bearing 401-023-700
$21.40
20 Spacer Tube [402-000-091] Spacer Tube 402-000-091
$11.17
21 Heavy Washer [402-840-560] Heavy Washer 402-840-560
$42.06
22 Roller Scraper [404-000-124] Roller Scraper 404-000-124
$80.25
23 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
$86.67
24 Height Indicator - Metric [412-000-256] Height Indicator - Metric 412-000-256
$37.45
25 Side Channel Wing Rh [412-000-273] Side Channel Wing Rh i See notes section for usage notes on this part 412-000-273
$926.38
26 Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 [412-000-724] Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 i See notes section for usage notes on this part 412-000-724
$82.25
27 Height Adj. Screw Assy - Wing Outer w Collar/Pin [412-000-725] Height Adj. Screw Assy - Wing Outer w Collar/Pin i See notes section for usage notes on this part 412-000-725
$101.79
28 Roller [414-000-065] Roller 414-000-065
$162.64
29 Roller Weldment - Rear Wing [414-000-075] Roller Weldment - Rear Wing 414-000-075
$428.00
30 Roller Stub Sleeve - LocTek [414-000-076] Roller Stub Sleeve - LocTek 414-000-076
$59.00
31 Roller Mount - Inner Wing RH [414-000-079] Roller Mount - Inner Wing RH i See notes section for usage notes on this part 414-000-079
$331.87
32 Bearing Spacer Tube [414-000-091] Bearing Spacer Tube 414-000-091
$24.28
33 Bearing Spacer Outer [450-000-090] Bearing Spacer Outer 450-000-090
$53.50
34 Front Wing Roller Assembly [414-000-090] Front Wing Roller Assembly 414-000-090
$267.50
