NOTES:

Part # Number on image Usage Notes
401-000-035 19
  • New Titan bubble roller, roller bearings and side channel used on the wing transport system from serial number 619-340-300-1040680 onwards.
412-000-576 25
  • Weld on wear Skids also available: 412-000-271 Wear Skid LH Stealth S3. Galvanised alternative: 412-000-578 Side Channel Wing LH Titan. New Titan bubble roller and side channel used from serial number 619-340-300-1040680 onwards.
412-000-725 26
  • 412-000-725 Height Adj. Screw Assy individual parts: 412-000-609 Set Screw M16 x 180 ZP 8.8, 412-850-260 Collar Height Adjuster Current, 202-447-980 Roll Pin 4 x 22 SS
414-000-162 31
  • New Titan bubble roller, roller bearings and side channel used on the wing transport system from serial number 619-340-300-1040680 onwards.

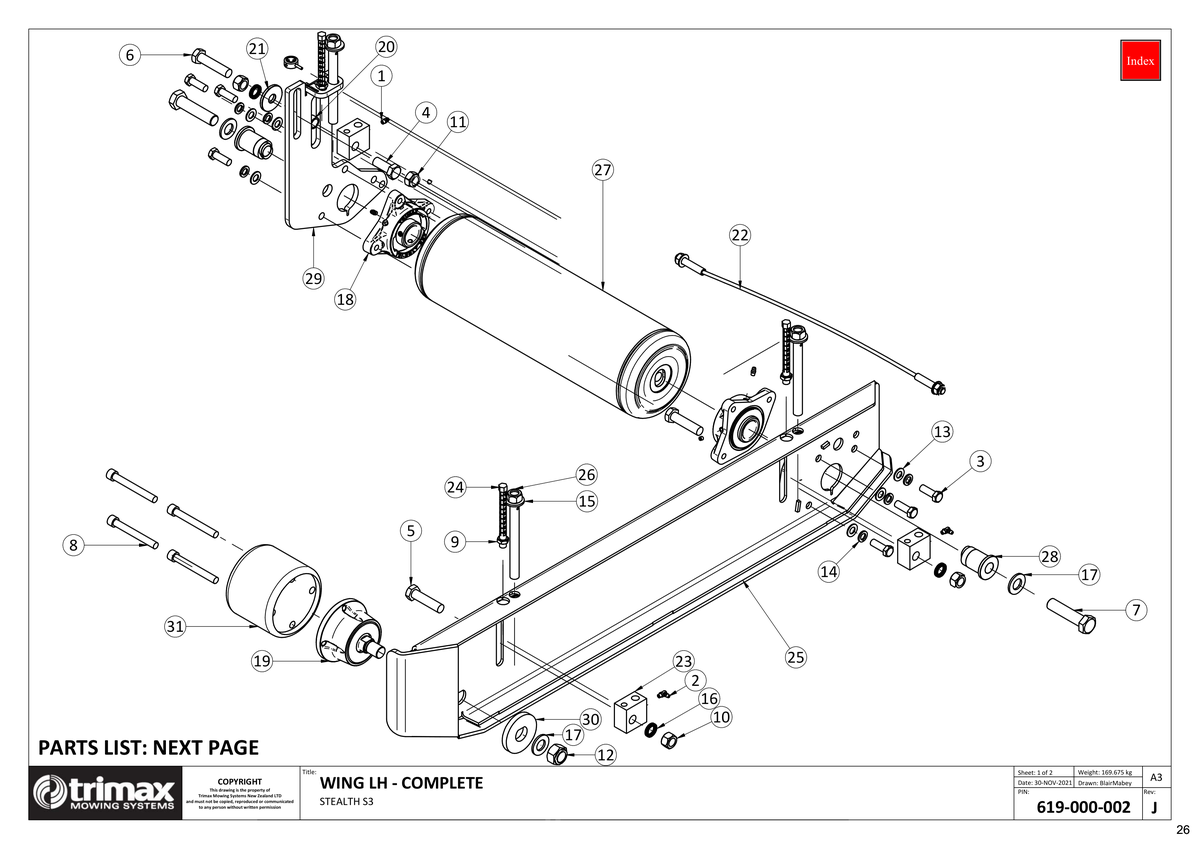

758 - Stealth S3 340 - Transport System - Titan - Wing LH

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-600] Grease Nipple 208-442-600
$3.61
2 Grease Nipple [208-442-650] Grease Nipple 208-442-650
$5.89
3 Bolt [301-212-353] Bolt 301-212-353
$2.71
4 Bolt [301-216-403] Bolt 301-216-403
$3.85
5 Bolt [301-216-653] Bolt 301-216-653
$6.76
6 Bolt [301-216-703] Bolt 301-216-703
$4.11
7 Bolt [301-220-853] Bolt 301-220-853
$14.19
8 Cap Screw [303-612-103] Cap Screw 303-612-103
$2.19
9 Nut - Half [307-212-023] Nut - Half 307-212-023
$1.13
10 Nut - Plain [307-216-013] Nut - Plain 307-216-013
$1.61
11 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
$1.02
12 Nut Nyloc [307-122-053] Nut Nyloc 307-122-053
$7.60
13 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
14 Washer - Spring [308-120-043] Washer - Spring 308-120-043
$0.45
15 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
16 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
$5.63
17 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
$1.02
18 Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide [401-000-032] Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide 401-000-032
$113.00
19 Bearing Assembly - Titan [401-000-035] Bearing Assembly - Titan i See notes section for usage notes on this part 401-000-035
$284.00
20 Spacer Tube [402-000-091] Spacer Tube 402-000-091
$11.17
21 Heavy Washer [402-840-560] Heavy Washer 402-840-560
$42.06
22 Roller Scraper [404-000-124] Roller Scraper 404-000-124
$80.25
23 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
$86.67
24 Height Indicator - Metric [412-000-256] Height Indicator - Metric 412-000-256
$37.45
25 LH Side Channel Weldment - For Titan Bearing - Stealth S3 DR [412-000-576] LH Side Channel Weldment - For Titan Bearing - Stealth S3 DR i See notes section for usage notes on this part 412-000-576
$926.38
26 Height Adj. Screw Assy - Wing Outer w Collar/Pin [412-000-725] Height Adj. Screw Assy - Wing Outer w Collar/Pin i See notes section for usage notes on this part 412-000-725
$101.79
27 Roller Weldment - Rear Wing [414-000-075] Roller Weldment - Rear Wing 414-000-075
$428.00
28 Roller Stub Sleeve - LocTek [414-000-076] Roller Stub Sleeve - LocTek 414-000-076
$59.00
29 Roller Mount - Inner Wing LH [414-000-078] Roller Mount - Inner Wing LH 414-000-078
$282.35
30 Clamp Plate - Titan Bearing Pegasus S4 [414-000-161] Clamp Plate - Titan Bearing Pegasus S4 414-000-161
$28.00
31 Roller - Cylinder - UHMWPE [414-000-162] Roller - Cylinder - UHMWPE i See notes section for usage notes on this part 414-000-162
$228.57
