NOTES:

Part # Number on image Usage Notes
401-000-032 12
  • 460-000-207 Roller Bearing Protection Kit is also available as an option for the mowers prior to serial number 719-340-002-0172, for ease of greasing roller bearings as there was no grease nipple access holes on the roller mounts.
412-000-724 17
  • 412-000-724 Height Adj. Screw Assy individual parts: 412-000-611 Set Screw M16 x 150 ZP 8.8, 412-850-260 Collar Height Adjuster Current, 202-447-980 Roll Pin 4 x 22 SS
414-000-077 20
  • 719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
414-000-080 21
  • 719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
414-000-093 22
  • The old roller part number 414-000-066 has been replaced by 414-000-093 this new roller is backward compatible with older version.

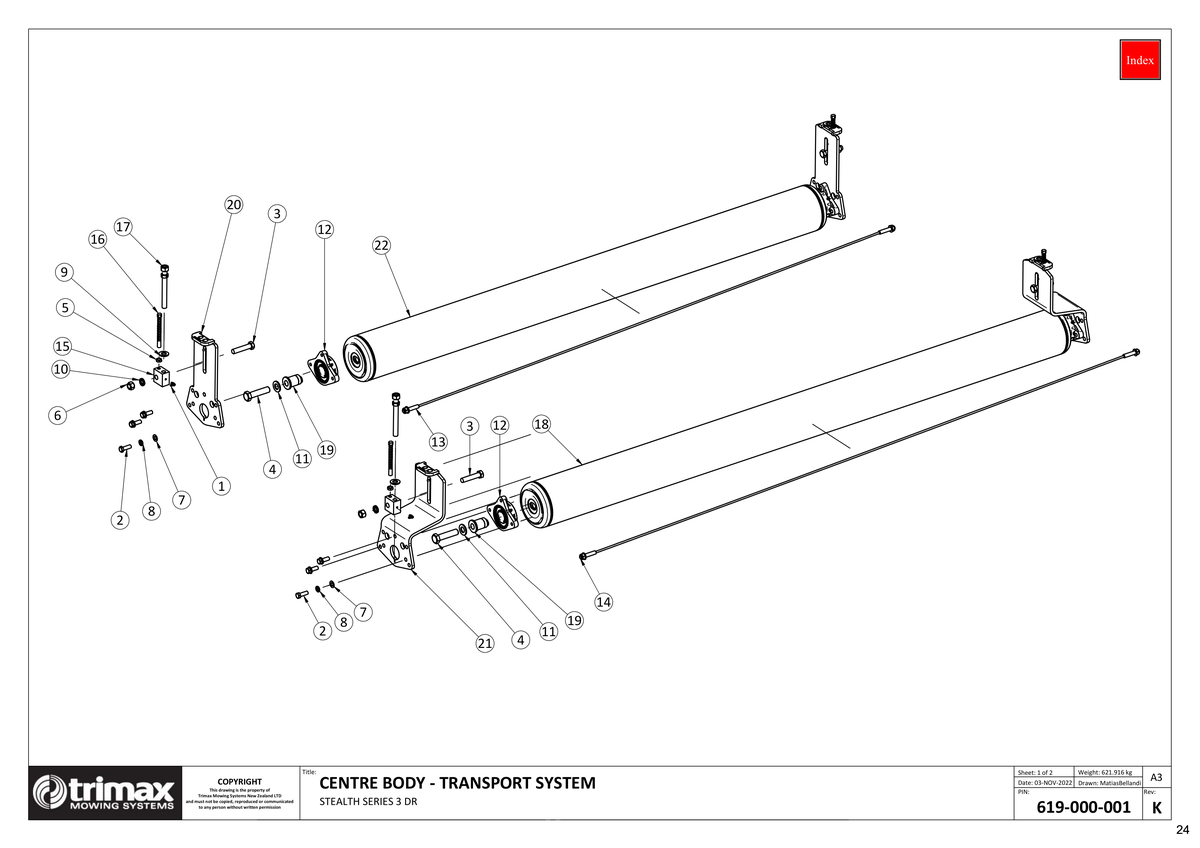

758 - Stealth S3 340 - Transport System - Centre Body

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-650] Grease Nipple 208-442-650
$5.89
2 Bolt [301-212-353] Bolt 301-212-353
$2.71
3 Bolt [301-216-753] Bolt 301-216-753
$6.63
4 Bolt [301-220-853] Bolt 301-220-853
$14.19
5 Nut - Half [307-212-023] Nut - Half 307-212-023
$1.13
6 Nut - Plain [307-216-013] Nut - Plain 307-216-013
$1.61
7 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
8 Washer - Spring [308-120-043] Washer - Spring 308-120-043
$0.45
9 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
10 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
$5.63
11 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
$1.02
12 Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide [401-000-032] Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide i See notes section for usage notes on this part 401-000-032
$113.00
13 Roller Scraper [404-000-122] Roller Scraper 404-000-122
$96.30
14 Roller Scraper [404-000-123] Roller Scraper 404-000-123
$96.30
15 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
$86.67
16 Height Indicator - Metric [412-000-256] Height Indicator - Metric 412-000-256
$37.45
17 Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 [412-000-724] Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 i See notes section for usage notes on this part 412-000-724
$82.25
18 Roller Weldment - LocTek Centre Body Rear [414-000-072] Roller Weldment - LocTek Centre Body Rear 414-000-072
$1,070.00
19 Roller Stub Sleeve - LocTek [414-000-076] Roller Stub Sleeve - LocTek 414-000-076
$59.00
20 Roller Mount Assembly [414-000-077] Roller Mount Assembly i See notes section for usage notes on this part 414-000-077
$267.50
21 Roller Mount - Centre Body - Rear [414-000-080] Roller Mount - Centre Body - Rear i See notes section for usage notes on this part 414-000-080
$321.00
22 Roller Weldment - Loctek 210 [414-000-093] Roller Weldment - Loctek 210 i See notes section for usage notes on this part 414-000-093
$910.00
