Parts Shop

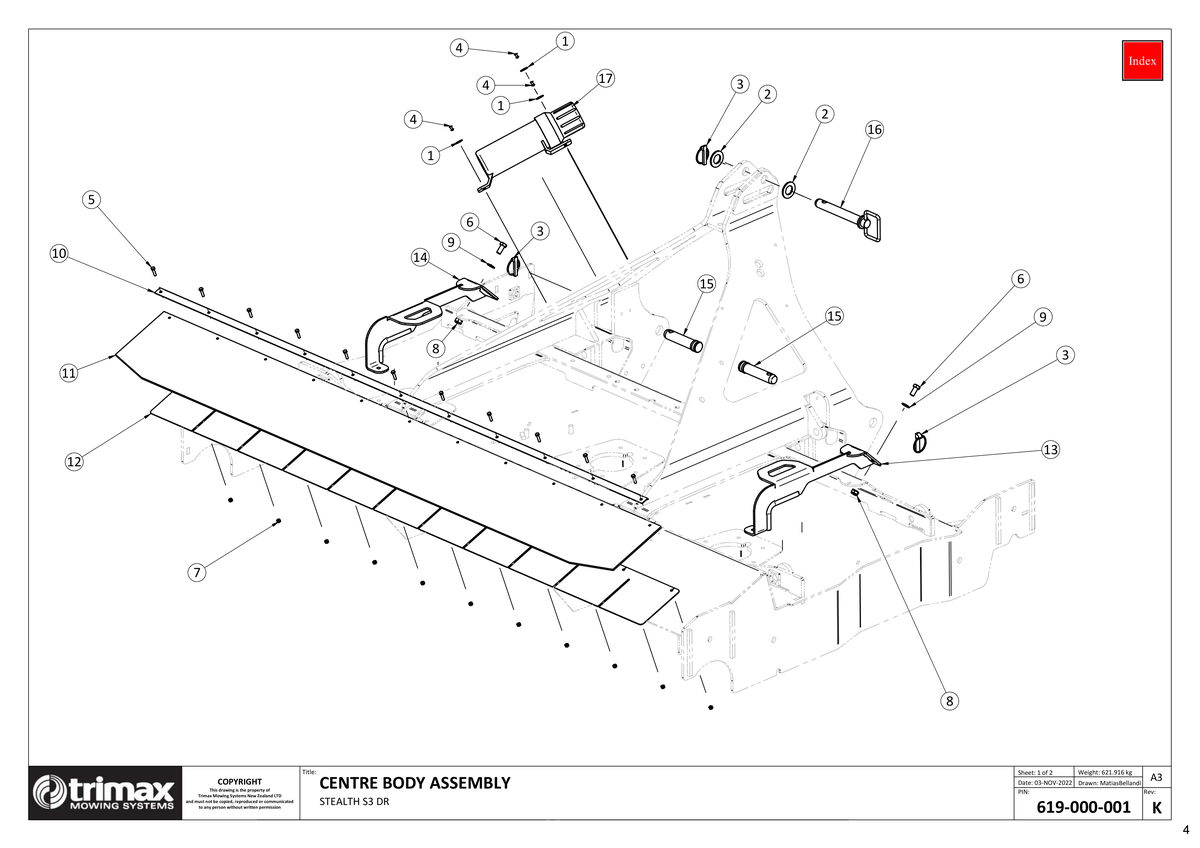

758 - Stealth S3 340 - Centre Body Assembly

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
$1.10
2 Washer Flat 1" x 1-15/16" Hardened [108-163-113] Washer Flat 1" x 1-15/16" Hardened 108-163-113
$5.92
3 Linch Pin [203-300-700] Linch Pin 203-300-700
$2.76
4 Blind Rivet [213-000-004] Blind Rivet 213-000-004
$1.02
5 Bolt [301-206-253] Bolt 301-206-253
$0.59
6 Bolt [301-212-253] Bolt 301-212-253
$2.93
7 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
$0.54
8 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
$0.67
9 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
10 Clamp Strip [410-000-103] Clamp Strip 410-000-103
$127.01
11 Flap [410-000-268] Flap 410-000-268
$220.21
12 Flap Stiffener [410-000-271] Flap Stiffener 410-000-271
$234.97
13 Cover Support Weldment [417-001-181] Cover Support Weldment 417-001-181
$150.34
14 Cover Support Weldment - Centre Body LH [417-001-182] Cover Support Weldment - Centre Body LH 417-001-182
$124.27
15 Pin - Linkage - Lower Cat. 2 ��1-1/8" x 95mm [419-000-051] Pin - Linkage - Lower Cat. 2 ��1-1/8" x 95mm 419-000-051
$35.70
16 Pin - Top Link Cat. 2 Ø1" x 160 [419-000-052] Pin - Top Link Cat. 2 Ø1" x 160 419-000-052
$26.08
17 Operator Manual Tube - Screw Cap [450-000-073] Operator Manual Tube - Screw Cap 450-000-073
$45.45
