NOTES:

Part #	Number on image	Usage Notes
401-020-801	14	Use part number 401-020-802 for gasket only, otherwise gasket is included in the roller bearing and hosing kit.
412-330-224	21	Weld on Skid folding for side channel is also available under part number 412-900-027

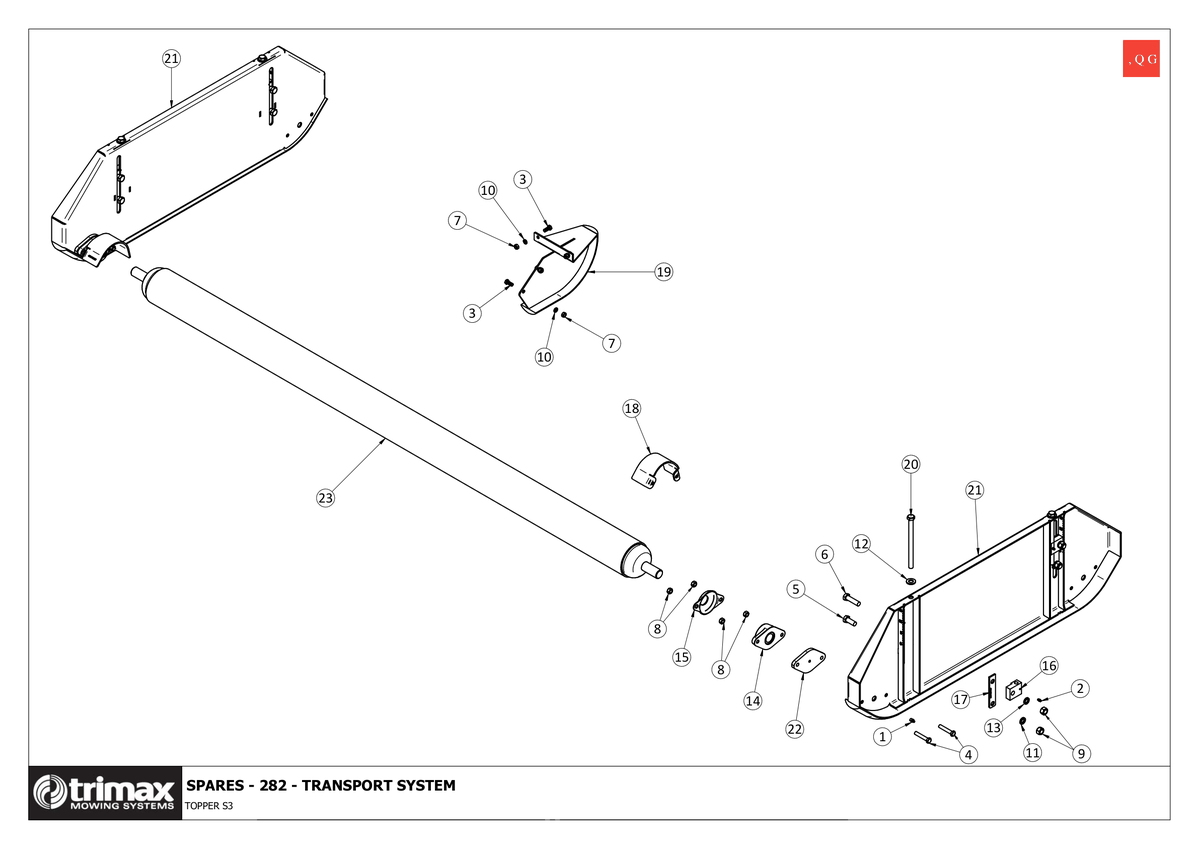

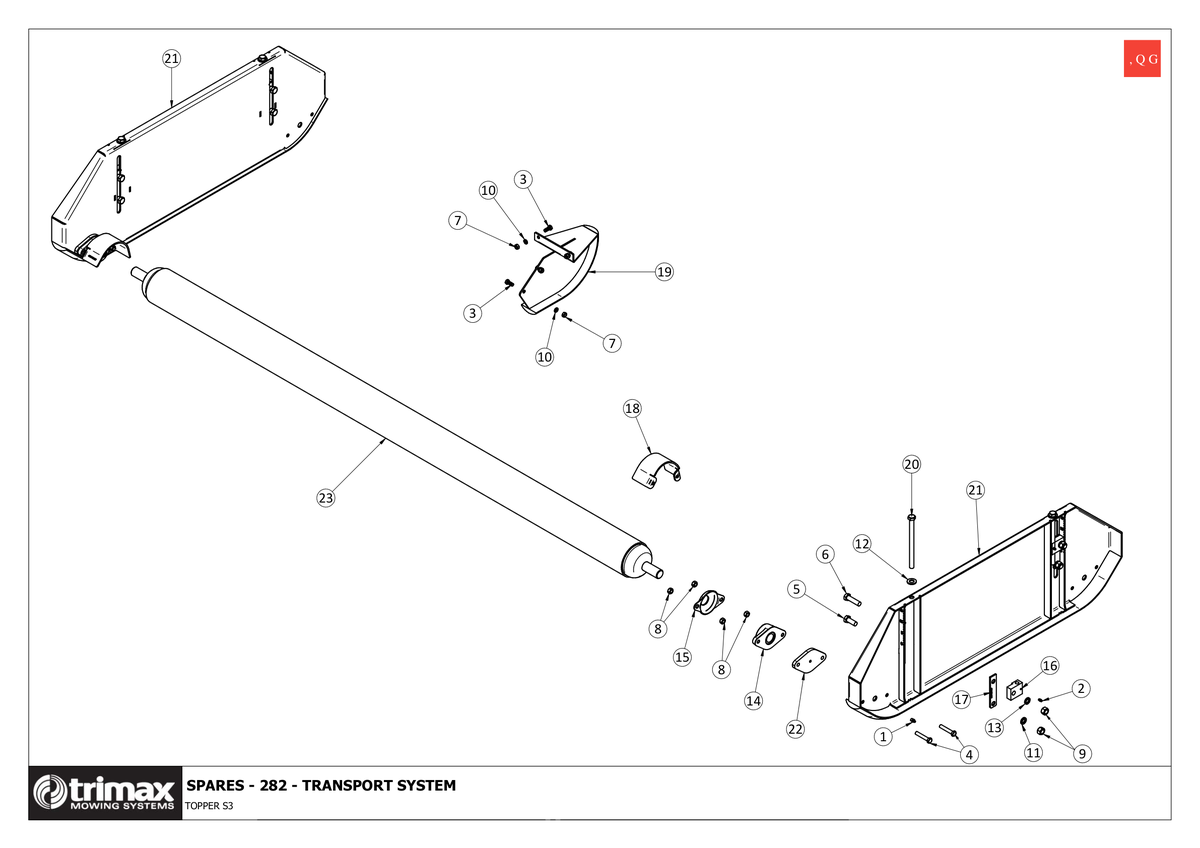

757 - Topper S3 - 282 - Transport System

Topper S3 282

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-550 More Info >	$3.06
2	Grease Nipple 208-442-600 More Info >	$3.61
3	Bolt 301-210-253 More Info >	$0.57
4	Bolt 301-212-653 More Info >	$1.88
5	Bolt 301-216-403 More Info >	$3.85
6	Bolt 301-216-603 More Info >	$3.85
7	Nut - Plain 307-210-013 More Info >	$0.48
8	Nut - Plain 307-212-013 More Info >	$0.57
9	Nut - Plain 307-216-013 More Info >	$1.61
10	Washer - Spring 308-100-043 More Info >	$0.18
11	Washer - Spring 308-160-043 More Info >	$0.67
12	Washer - Heavy Flat 308-160-063 More Info >	$1.65
13	Washer - Nordloc 308-160-083 More Info >	$5.63
14	Bearing Kit i See notes section for usage notes on this part 401-020-801 More Info >	$92.00
15	Protector Cap - Roller Bearing 410-464-073 More Info >	$37.45
16	Block - Height Adjuster 412-000-154 More Info >	$97.65
17	Tag - Height Adjuster Block 412-000-155 More Info >	$48.15
18	Folding - Roller Stub Protector 412-000-257	$171.99
19	Center Skid Weldment - Topper S3 237/282 412-000-612	Price on Request
20	Set Screw - M16 x 220 ZP 8.8 412-000-616	$22.43
21	Side Channel Weldment - Topper 282 (210, 300) Painted i See notes section for usage notes on this part 412-330-224 More Info >	$738.30
22	Plate - Roller Mount Topper S3 412-464-075 More Info >	$27.54
23	Roller Weldment 282 414-320-045 More Info >	$802.50
