NOTES:

Part #	Number on image	Usage Notes
401-020-801	14	Use part number 401-020-802 for gasket only, otherwise gasket is included in the roller bearing and hosing kit.
412-330-203	21	Weld on Skid folding for side Channel is available under part number 412-900-028

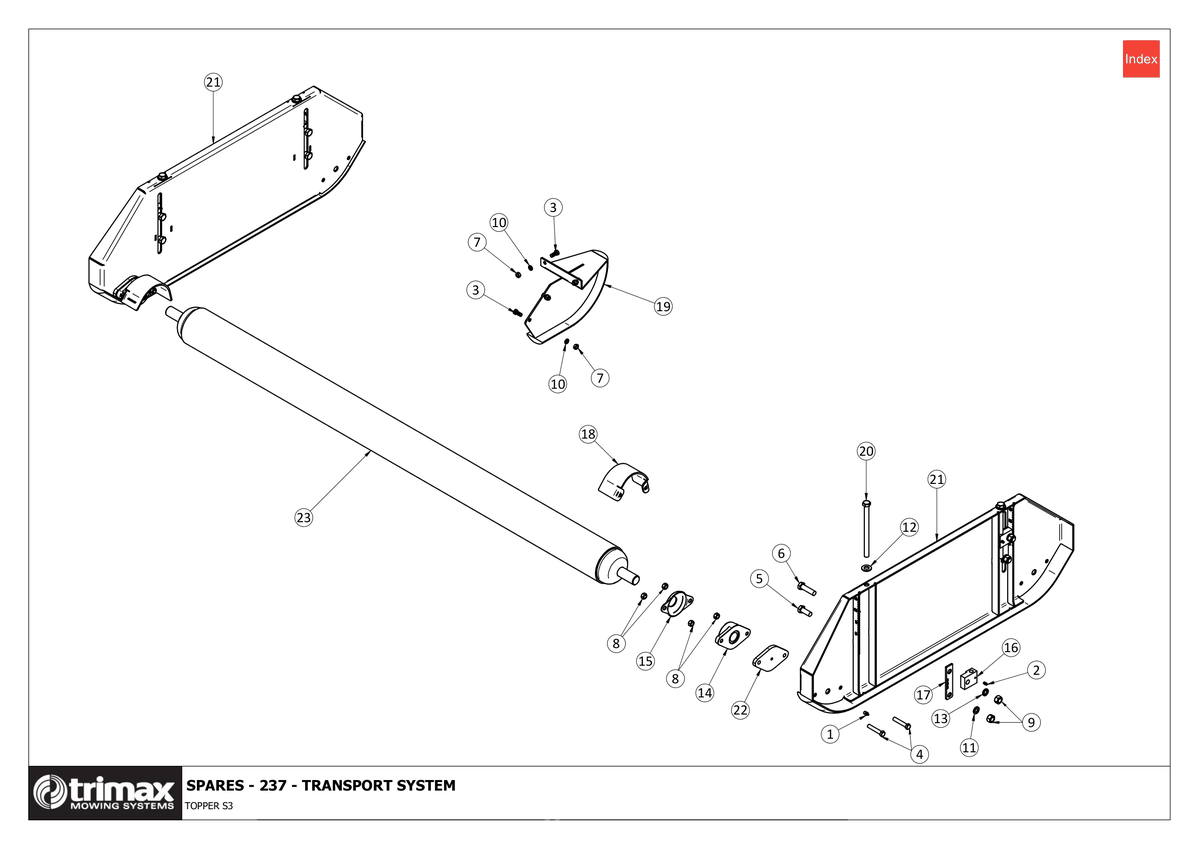

757 - Topper S3 237 - Transport System

Topper S3 237

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-550 More Info >	$3.06
2	Grease Nipple - Trimax Specification 208-442-600 More Info >	$3.61
3	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	$0.57
4	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	$1.88
5	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	$3.85
6	Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603 More Info >	$3.85
7	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	$0.48
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
9	Nut - Plain 307-216-013 More Info >	$1.61
10	Washer - Spring 308-100-043 More Info >	$0.18
11	Washer - Spring 308-160-043 More Info >	$0.67
12	Washer - Heavy Flat 308-160-063 More Info >	$1.65
13	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
14	Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification i See notes section for usage notes on this part 401-020-801 More Info >	$92.00
15	Protector Cap - Roller Bearing 410-464-073 More Info >	$37.45
16	Block - Height Adjuster 412-000-154 More Info >	$97.65
17	Tag - Height Adjuster Block 412-000-155 More Info >	$48.15
18	Folding - Roller Stub Protector 412-000-257	$171.99
19	Center Skid Weldment - Topper S3 237/282 412-000-612	Price on Request
20	Set Screw - M16 x 220 - Trimax Specification 412-000-616	$22.43
21	Side Channel Weldment 178/237 i See notes section for usage notes on this part 412-330-203 More Info >	$737.77
22	Plate - Roller Mount Topper S3 412-464-075 More Info >	$27.54
23	Roller Weldment 237 TP1 414-320-044 More Info >	$845.30
