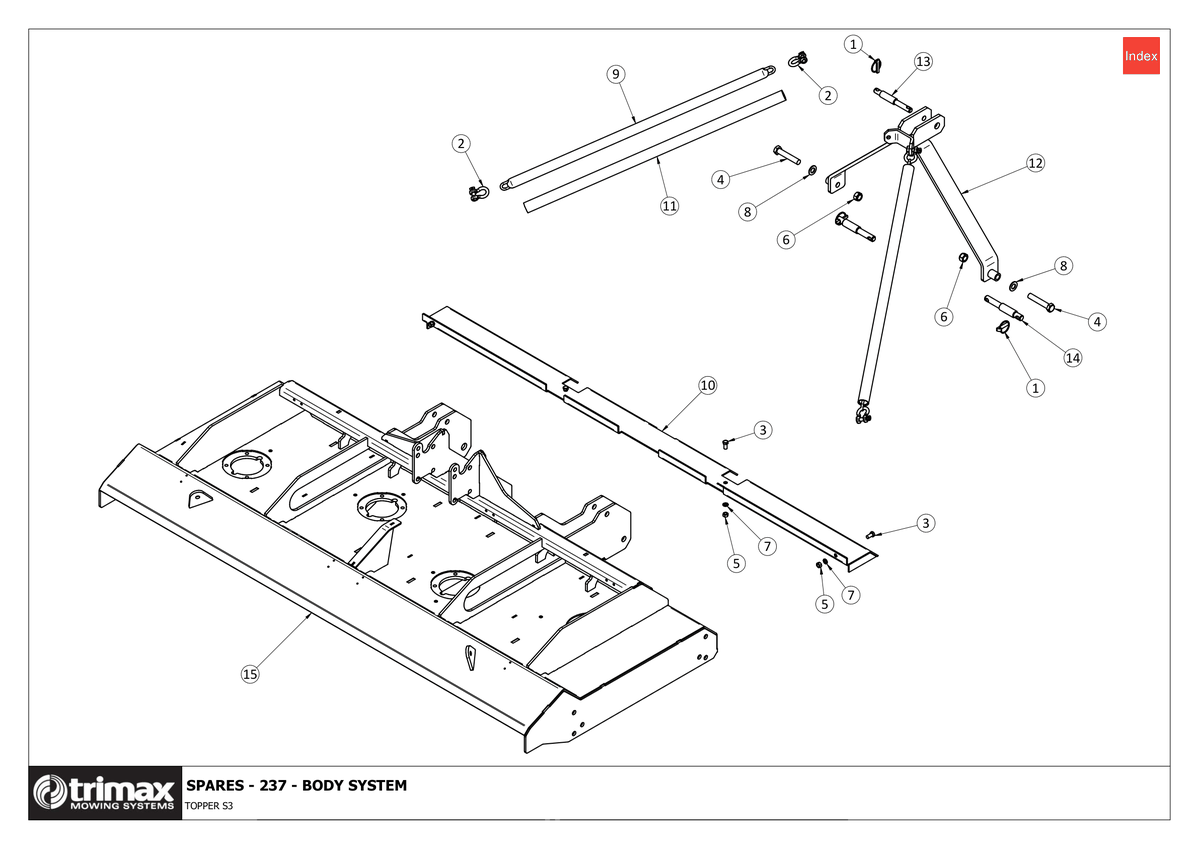

757 - Topper S3 - 237 - Body System

Topper S3 237

Grouped product items
No. Image Product Name Price Quantity
1 Linch Pin [203-300-700] Linch Pin 203-300-700
$2.76
2 Bow-Shackle [214-446-281] Bow-Shackle 214-446-281
$38.70
3 Bolt [301-212-253] Bolt 301-212-253
$2.93
5 Nut - Plain [307-212-013] Nut - Plain 307-212-013
$0.57
6 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
$1.57
7 Washer - Spring [308-120-043] Washer - Spring 308-120-043
$0.45
8 Washer - Flat [308-200-013] Washer - Flat 308-200-013
$1.16
9 Chain - Headstock [404-000-001] Chain - Headstock 404-000-001
Price on Request
10 Muck Protector Weldment - Topper S3 237 [410-000-445] Muck Protector Weldment - Topper S3 237 410-000-445
Price on Request
11 Sheath - Headstock Chains [412-440-440] Sheath - Headstock Chains 412-440-440
$34.12
13 Pin - Linkage - Upper Dual Cat. [419-300-800] Pin - Linkage - Upper Dual Cat. 419-300-800
$26.54
14 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
$29.29
15 Body Weldment - Topper S3 237 [502-000-222] Body Weldment - Topper S3 237 502-000-222
Price on Request
