NOTES:

Part # Number on image Usage Notes
208-442-650 2
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
301-216-653 3
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
307-216-013 7
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
308-160-083 9
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
404-320-123 12
  • Roller Scraper available as an option
412-000-255 13
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block

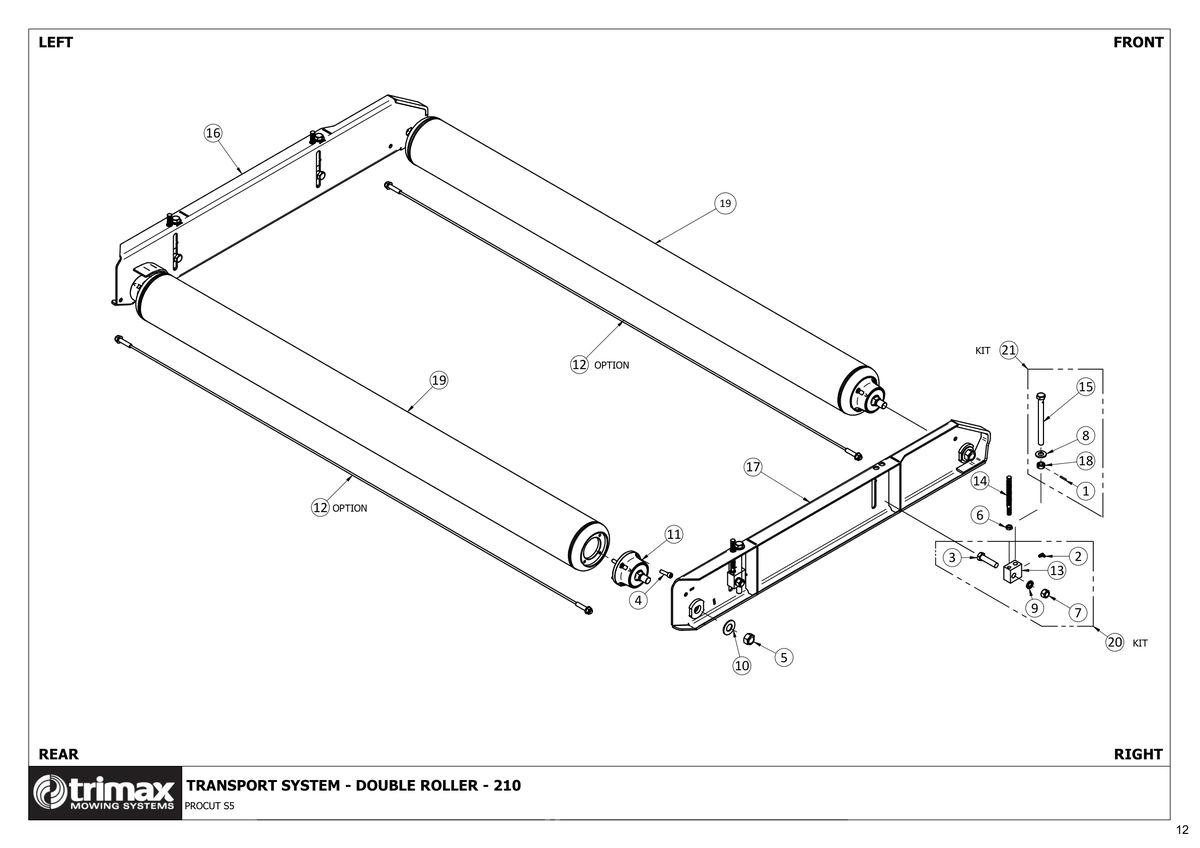

756 - Procut S5 210 - Transport System - Double Roller

ProCut S5 210

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin 202-447-980
$5.14
2 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification i See notes section for usage notes on this part 208-442-650
$5.89
3 Bolt - Hex Head - M16 x 65 - Trimax Specification [301-216-653] Bolt - Hex Head - M16 x 65 - Trimax Specification i See notes section for usage notes on this part 301-216-653
$6.76
4 Cap Screw - Socket Head - M10 x 35 - Trimax Specification [303-210-353] Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353
$3.09
5 Nut - Hex Nyloc - M22 x 1.5 [307-122-053] Nut - Hex Nyloc - M22 x 1.5 307-122-053
$7.60
6 Nut - Half [307-212-023] Nut - Half 307-212-023
$1.13
7 Nut - Plain [307-216-013] Nut - Plain i See notes section for usage notes on this part 307-216-013
$1.61
8 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
9 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - i See notes section for usage notes on this part 308-160-083
$5.63
10 Washer - Heavy Flat M24 - Trimax Specification [308-240-063] Washer - Heavy Flat M24 - Trimax Specification 308-240-063
$1.98
11 Roller Bearing Assembly - Titan [401-000-035] Roller Bearing Assembly - Titan 401-000-035
$284.00
12 Scraper - Roller 210 [404-320-123] Scraper - Roller 210 i See notes section for usage notes on this part 404-320-123
$80.25
13 Height Adjuster Block [412-000-255] Height Adjuster Block i See notes section for usage notes on this part 412-000-255
$86.67
14 Height Indicator Rod - 6 Sided [412-000-580] Height Indicator Rod - 6 Sided 412-000-580
$46.29
15 Set Screw [412-000-609] Set Screw 412-000-609
$56.00
16 Side Channel Weldment - Titan Bearing - LH - 210 - Procut S5 [412-000-640] Side Channel Weldment - Titan Bearing - LH - 210 - Procut S5 412-000-640
$487.62
17 Side Channel Weldment - Titan Bearing - RH - 210 - Procut S5 [412-000-641] Side Channel Weldment - Titan Bearing - RH - 210 - Procut S5 412-000-641
$488.08
18 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
$36.93
19 Roller Weldment - Titan - 210 - Procut S5 [414-000-171] Roller Weldment - Titan - 210 - Procut S5 414-000-171
$858.81
21 Kit - Height Adjuster Rod and Collar [412-000-649] Kit - Height Adjuster Rod and Collar 412-000-649
$89.75
