NOTES:

Part # Number on image Usage Notes
202-447-980 1
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
208-442-650 2
  • 412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
301-216-653 6
  • 412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
307-216-013 11
  • 412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
308-160-063 15
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
308-160-083 16
  • 412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
404-320-122 19
  • Roller Scraper available as an option
412-000-255 23
  • 412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
412-000-609 24
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
412-850-260 27
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
412-000-649 33
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current

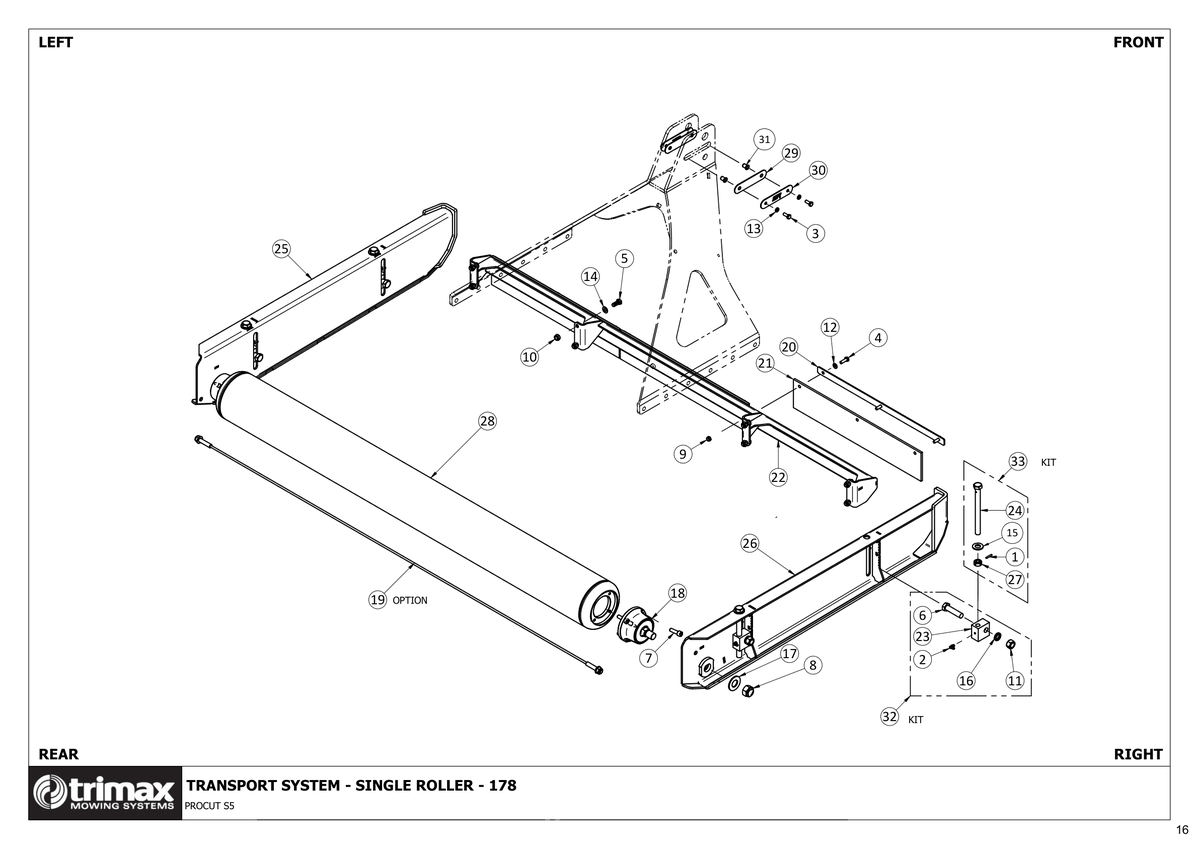

756 - Procut S5 178 - Transport System Single Rear Roller - Option

ProCut S5 178

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin i See notes section for usage notes on this part 202-447-980
$5.14
2 Grease Nipple [208-442-650] Grease Nipple i See notes section for usage notes on this part 208-442-650
$5.89
3 Bolt [301-208-203] Bolt 301-208-203
$0.90
4 Bolt [301-208-253] Bolt 301-208-253
$0.54
5 Bolt [301-210-253] Bolt 301-210-253
$0.57
6 Bolt [301-216-653] Bolt i See notes section for usage notes on this part 301-216-653
$6.76
7 Cap Screw [303-210-353] Cap Screw 303-210-353
$3.09
8 Nut - Hex Nyloc - M22 x 1.5 [307-122-053] Nut - Hex Nyloc - M22 x 1.5 307-122-053
$7.60
9 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
$0.90
10 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
$0.57
11 Nut - Plain [307-216-013] Nut - Plain i See notes section for usage notes on this part 307-216-013
$1.61
12 Washer - Flat [308-080-016] Washer - Flat 308-080-016
$0.12
13 Washer - Spring [308-080-043] Washer - Spring 308-080-043
$0.12
14 Washer - Flat [308-100-013] Washer - Flat 308-100-013
$0.54
15 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat i See notes section for usage notes on this part 308-160-063
$1.65
16 Washer - Nordloc [308-160-083] Washer - Nordloc i See notes section for usage notes on this part 308-160-083
$5.63
17 Washer - Heavy Flat M24 ZP (Ø25mm ID) [308-240-063] Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063
$1.98
18 Roller Bearing Assembly - Titan [401-000-035] Roller Bearing Assembly - Titan 401-000-035
$284.00
19 Scraper - Roller 178 [404-320-122] Scraper - Roller 178 i See notes section for usage notes on this part 404-320-122
$80.25
20 Front Flap - Retaining Strip - Procut S5 [410-000-472] Front Flap - Retaining Strip - Procut S5 410-000-472
$20.65
21 Front Flap - PVK - Procut S5 [410-000-474] Front Flap - PVK - Procut S5 410-000-474
Price on Request
22 Bumper Weldment - 178 - Procut S5 [410-000-476] Bumper Weldment - 178 - Procut S5 410-000-476
Price on Request
23 Height Adjuster Block [412-000-255] Height Adjuster Block i See notes section for usage notes on this part 412-000-255
$86.67
24 Set Screw [412-000-609] Set Screw i See notes section for usage notes on this part 412-000-609
$56.00
25 SR Side Channel Weldment - LH - Procut S5 [412-000-642] SR Side Channel Weldment - LH - Procut S5 412-000-642
$724.08
26 SR Side Channel Weldment - RH - Procut S5 [412-000-643] SR Side Channel Weldment - RH - Procut S5 412-000-643
$724.05
27 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster i See notes section for usage notes on this part 412-850-260
$36.93
28 Roller Weldment [414-000-157] Roller Weldment 414-000-157
$930.00
29 Slot Cover - Top Link SR Outer [419-000-053] Slot Cover - Top Link SR Outer 419-000-053
$17.24
30 Slot Cover - Top Link SR Inner [419-000-054] Slot Cover - Top Link SR Inner 419-000-054
Price on Request
31 Nut - Rivnut M8 ZP [307-208-423] Nut - Rivnut M8 ZP 307-208-423
$1.20
33 Kit - Height Adjuster Rod and Collar [412-000-649] Kit - Height Adjuster Rod and Collar i See notes section for usage notes on this part 412-000-649
$89.75
