NOTES:

Part # Number on image Usage Notes
502-000-228 27
  • For body weldment - Procut S5 178 - galvanized, use p/n: 502-000-232

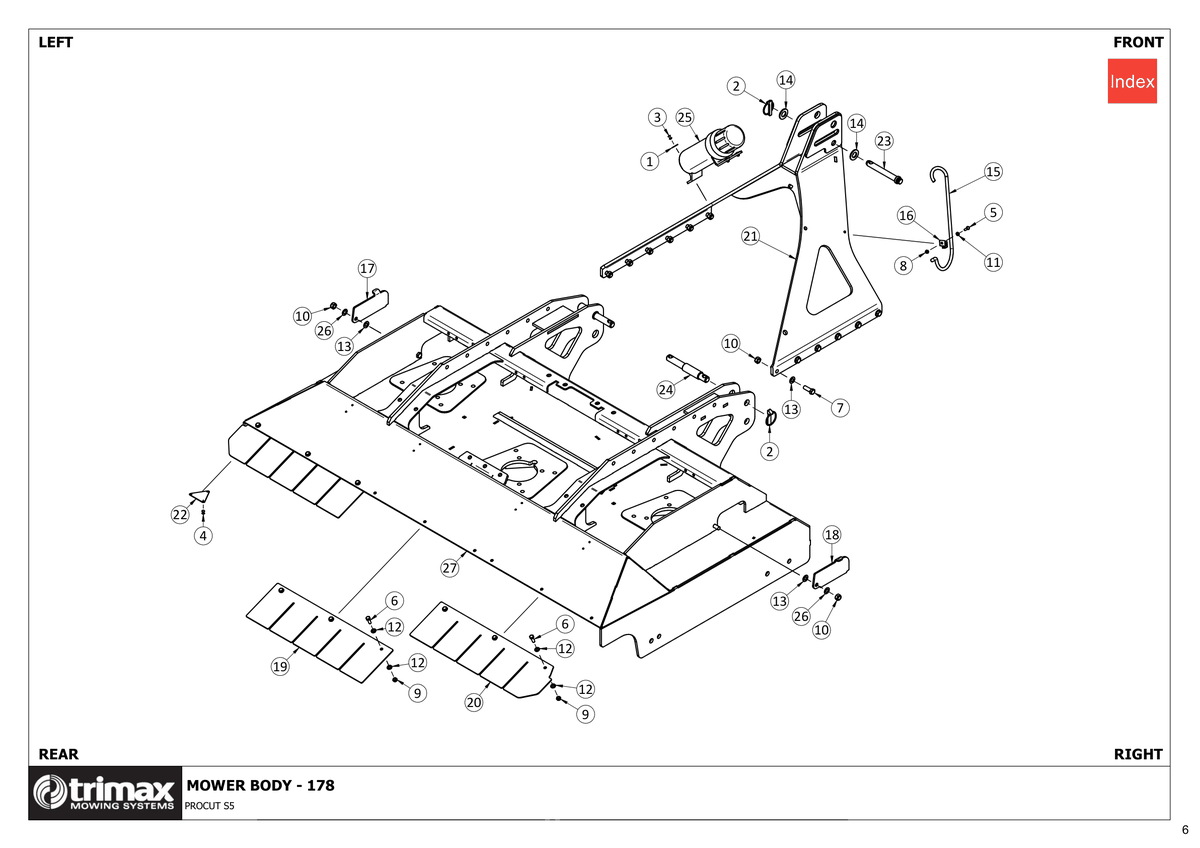

756 - Procut S5 178 - Mower Body

ProCut S5 178

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
$1.10
2 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
$2.76
3 Blind Rivet [213-000-004] Blind Rivet 213-000-004
$1.02
4 Blind Rivet [213-443-250] Blind Rivet 213-443-250
$0.57
5 Bolt [301-206-203] Bolt 301-206-203
$0.12
6 Bolt [301-208-253] Bolt 301-208-253
$0.54
7 Bolt [301-212-353] Bolt 301-212-353
$2.71
8 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
$0.54
9 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
$0.90
10 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
$0.67
11 Washer - Flat [308-060-013] Washer - Flat 308-060-013
$0.04
12 Washer - Flat [308-080-016] Washer - Flat 308-080-016
$0.12
13 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
14 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
$1.02
15 PTO Hanger [406-000-059] PTO Hanger 406-000-059
$99.20
16 Retainer Clip - PTO Hanger [406-000-060] Retainer Clip - PTO Hanger 406-000-060
$8.90
17 Wash Panel - RH [410-000-134] Wash Panel - RH 410-000-134
$37.96
18 Wash Panel - LH [410-000-135] Wash Panel - LH 410-000-135
$37.96
19 Rear Flap - Inner - Procut S5 [410-000-461] Rear Flap - Inner - Procut S5 410-000-461
$67.20
20 Rear Flap - Outer - Procut S5 [410-000-463] Rear Flap - Outer - Procut S5 410-000-463
$67.85
21 Headstock - Weldment - Procut S5 [413-000-120] Headstock - Weldment - Procut S5 413-000-120
$896.30
22 Cap Plate [417-001-024] Cap Plate 417-001-024
Price on Request
23 Pin - Muck Protector [419-000-014] Pin - Muck Protector 419-000-014
$18.47
24 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
$29.29
25 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
$45.45
26 Washer - Crinkle [450-000-116] Washer - Crinkle 450-000-116
$1.78
27 Body Weldment - Procut S5 178 - Powdercoated - Procut S5 [502-000-228] Body Weldment - Procut S5 178 - Powdercoated - Procut S5 i See notes section for usage notes on this part 502-000-228
Price on Request
28 Decal Sheet - Procut S5 - 178 [424-000-316] Decal Sheet - Procut S5 - 178 424-000-316
Price on Request
29 Decal Sheet - Procut S5 - Common [424-000-320] Decal Sheet - Procut S5 - Common 424-000-320
Price on Request
