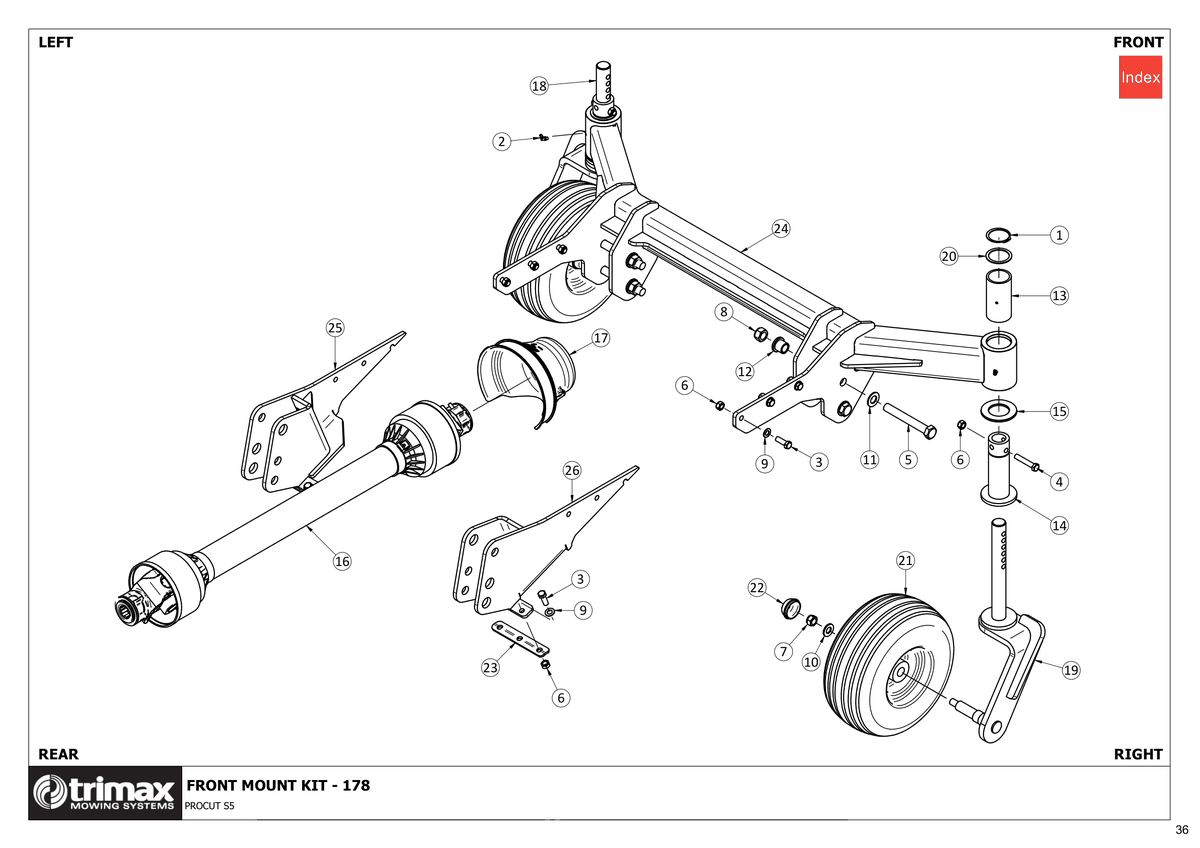

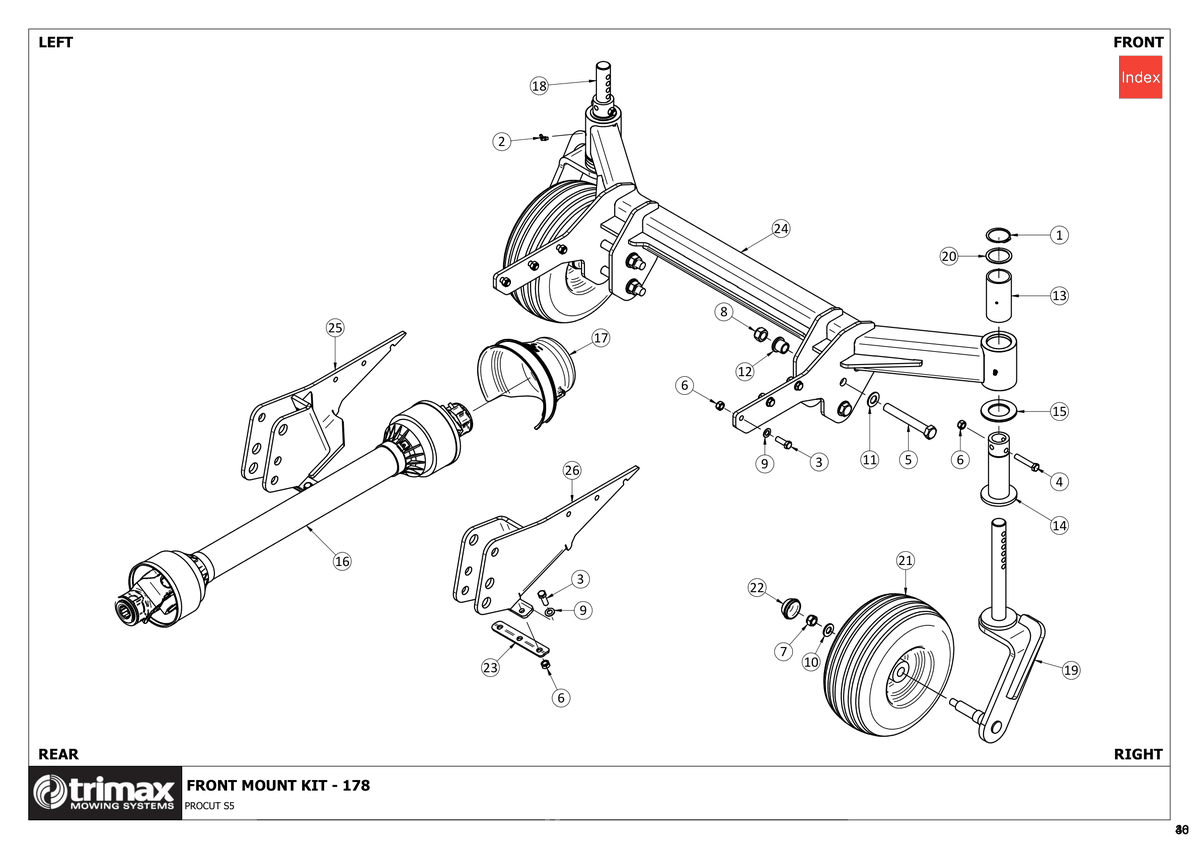

756 - Procut S5 178 - Front Mount - Option

ProCut S5 178

Grouped product items
No.	Product Name	Price
1	Circlip/Snap Ring - External 204-820-522 More Info >	$6.51
2	Grease Nipple - Trimax Specification 208-442-620 More Info >	$4.47
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
4	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	$1.88
5	Bolt - Hex Head - M20 x 150 - Trimax Specification 301-620-153 More Info >	$6.38
6	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
7	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
8	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	$1.57
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
10	Washer - Heavy Flat 308-160-063 More Info >	$1.65
11	Washer - Flat 308-200-013 More Info >	$1.16
12	Castor Mount - Clamp Bush - Procut S5 - Front Mount Kit 402-000-154 More Info >	Price on Request
13	Bush - Pivot 402-320-060 More Info >	$189.69
14	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	$437.59
15	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	$30.56
16	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-870 More Info >	$589.47
17	PTO Cone - Gearbox - Cut Down For Front Mount - Procut S5 410-000-480 More Info >	Price on Request
18	Front Castor Weldment - LH 412-320-051 More Info >	$802.50
19	Front Castor Weldment - RH 412-320-052 More Info >	$802.50
20	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	$122.92
21	Wheel Assembly 416-449-010 More Info >	$284.40
22	Grease Cap - Wheel 416-449-015 More Info >	$24.66
23	Rear Linkplate - Doubler - Folded - Procut S5 - Front Mount Kit 417-001-734 More Info >	Price on Request
24	Castor Mount Weldment - Procut S5 - Front Mount Kit 417-001-741 More Info >	Price on Request
25	Rear Linkplate Weldment - LH - Procut S5 - Front Mount Kit 417-001-742 More Info >	Price on Request
26	Rear Linkplate Weldment - RH - Procut S5 - Front Mount Kit 417-001-743 More Info >	Price on Request
