NOTES:

Part #	Number on image	Usage Notes
401-022-490	10	Lower Bearing Notes: Early gearboxes use 401-022-500 (Gearbox 31175300) Later gearboxes use 401-022-490 ( Gearbox 9.311.330.00) 401-022-490 can be retro-fitted into early gearboxes

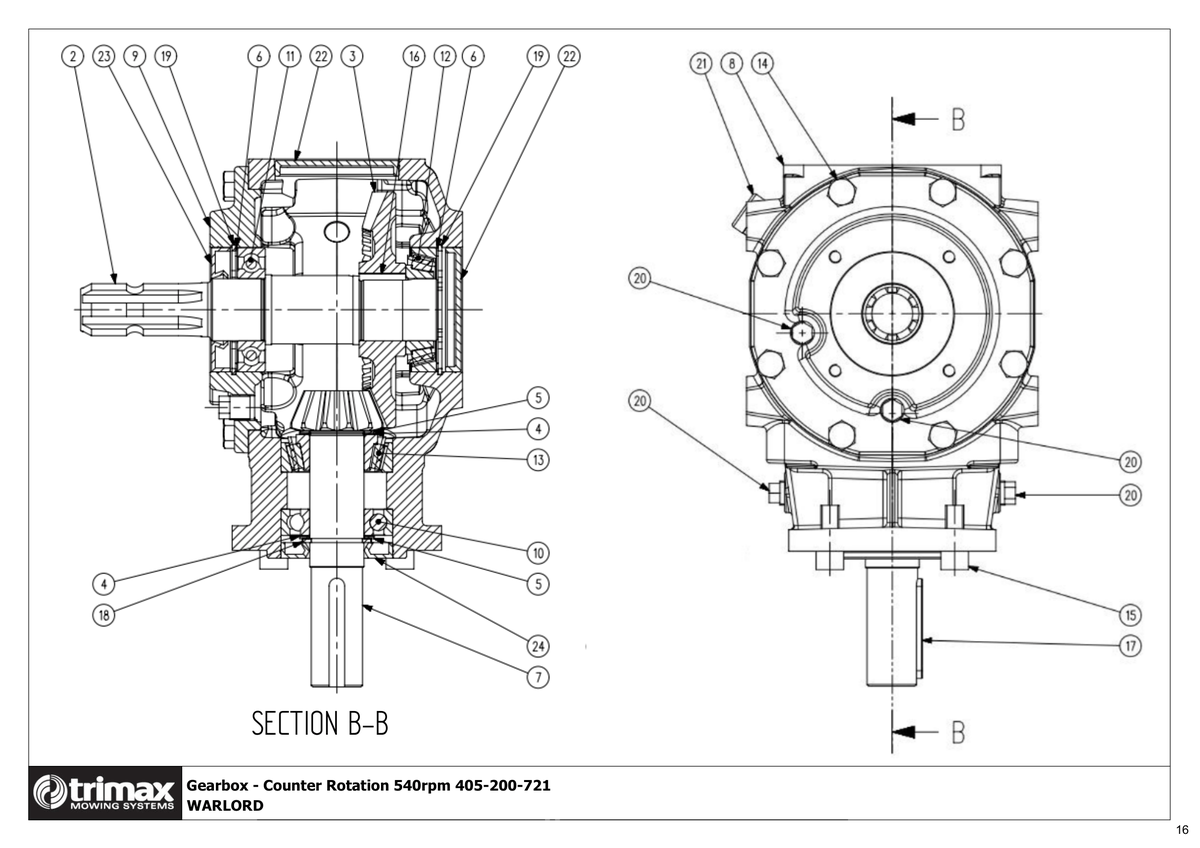

753 - Warlord S3 LH 175 - Drive System - DETAIL 2

Warlord S3 LH 175

Grouped product items
No.	Product Name	Price
2	Input Shaft - Gearbox 405-203-252 More Info >	Price on Request
3	Crownwheel Gear - Gearbox 405-205-220 More Info >	Price on Request
4	Shim - Gearbox 405-206-220 More Info >	$22.21
5	Shim - Gearbox 405-206-221 More Info >	$15.18
6	Shim - Gearbox 405-206-140 More Info >	$13.75
7	Oil Seal 422-380-300 More Info >	$33.12
8	Housing 405-207-153 More Info >	Price on Request
10	Bearing i See notes section for usage notes on this part 401-022-490 More Info >	$67.71
11	Bearing 401-022-400 More Info >	$87.00
12	Bearing 401-022-510 More Info >	$99.51
13	Bearing 401-022-520 More Info >	$116.30
14	Bolt 301-210-253 More Info >	$0.57
15	Bolt 301-212-303 More Info >	$2.36
17	Key - Gearbox 405-207-154 More Info >	$16.27
18	Heavy Duty Circlip - Internal 204-440-917 More Info >	$19.44
19	Circlip/Snap Ring 204-446-193 More Info >	$10.92
20	Oil Plug - Hex Head 3/8" (Trimax Specification) 405-207-211 More Info >	$17.76
21	Breather - Gearbox 405-207-207 More Info >	$34.36
22	Cap - Gearbox 405-207-151 More Info >	$43.70
23	Oil Seal 422-381-000 More Info >	$51.31
