NOTES:

Part #	Number on image	Usage Notes
405-200-721	15	For RH offset use standard rotation gearbox: 405-200-720.

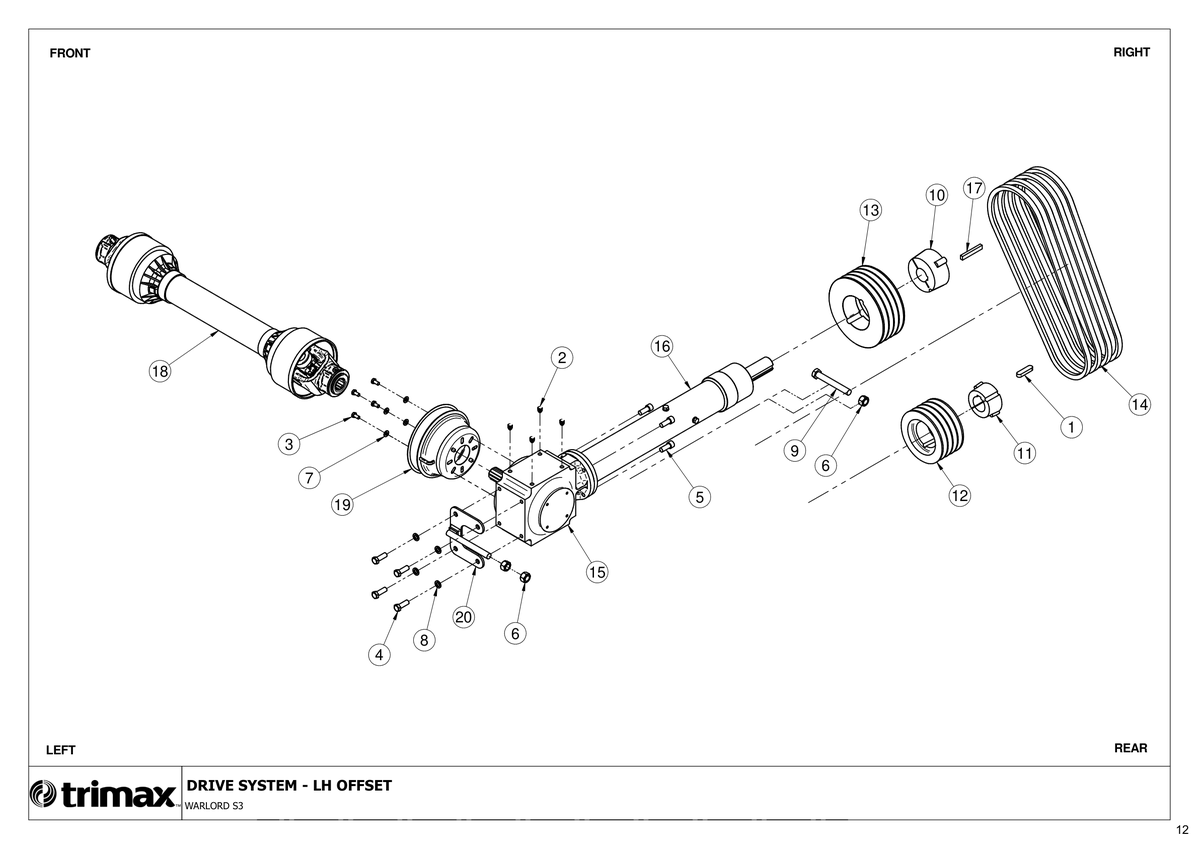

753 - Warlord S3 235 - Drive System LH Offset

Warlord S3 235

Grouped product items
No.	Product Name	Price
1	Key - 14x9mm (Trimax Specification) 205-425-920 More Info >	$15.17
2	Blanking Plug - M12 209-900-012 More Info >	$0.45
3	Bolt 301-208-163 More Info >	$0.61
4	Bolt 301-212-353 More Info >	$2.71
5	Cap Screw 303-212-305 More Info >	$3.61
6	Nut - Plain 307-216-013 More Info >	$1.61
7	Washer - Flat 308-080-016 More Info >	$0.12
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
9	Set Screw 313-616-123 More Info >	$17.43
10	Bush - Taper Lock - 40mm (Trimax Specification) 402-060-710 More Info >	$70.96
11	Bush - Taper Lock - 45mm (Trimax Specification) 402-060-730 More Info >	$52.38
12	Pulley - Taper Lock 403-361-180 More Info >	$127.85
13	Pulley - Taper Lock 403-361-270 More Info >	$224.52
14	Vee Belt 404-040-512 More Info >	$78.11
15	Gearbox - Counter Rotation - 540rpm i See notes section for usage notes on this part 405-200-721 More Info >	$1,883.20
16	Extension Shaft Assembly - Gearbox 405-201-780 More Info >	$898.80
17	Key - 12x8mm (Trimax Specification) 405-425-910 More Info >	$12.72
18	PTO Complete Driveshaft - 900mm - 540/1000rpm (Trimax Specification) 406-340-840 More Info >	$555.65
19	Cone - PTO Holes Punched 410-440-402 More Info >	$44.94
20	Adjuster 417-000-428 More Info >	$85.60
