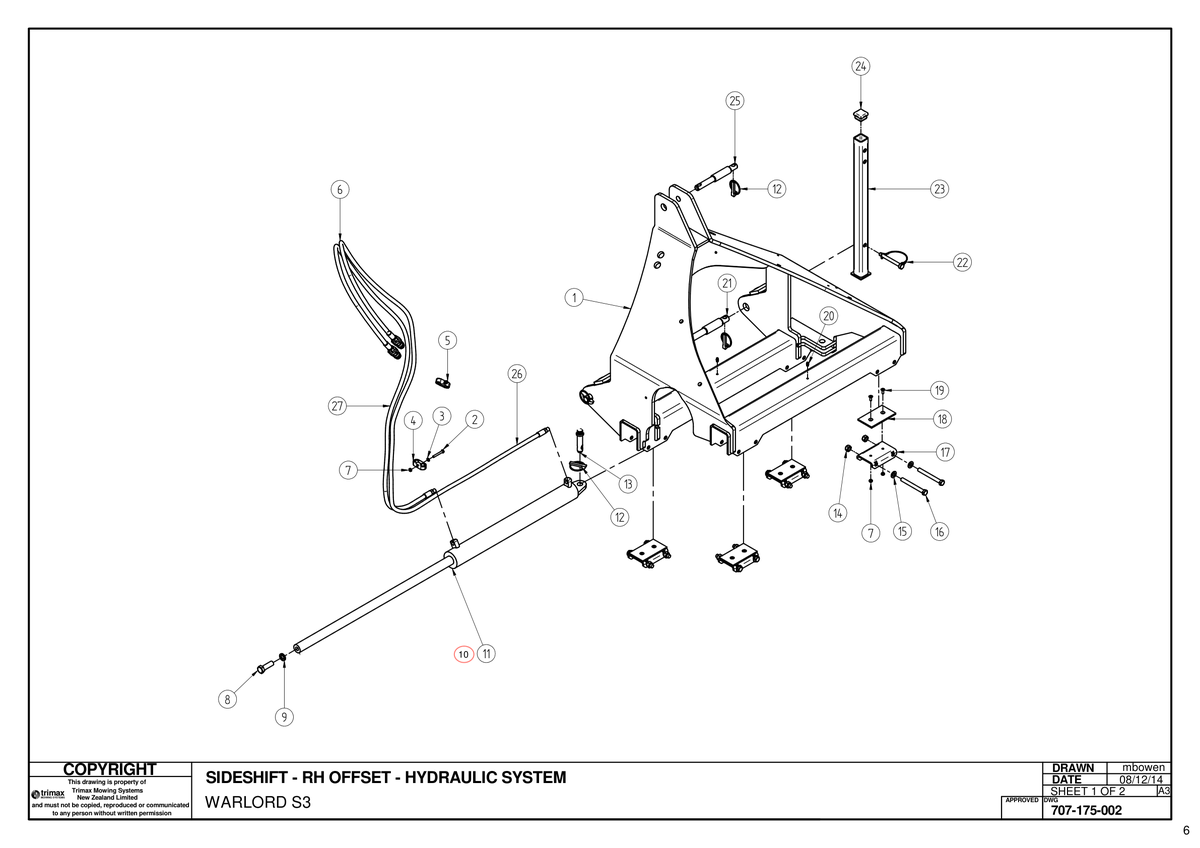

753 - Warlord S3 205 - Hydraulic System

Warlord S3 205

Grouped product items
No.	Product Name	Price
1	Headstock - RH Offset WL3 413-000-080 More Info >	$1,605.00
2	Bolt 301-206-453 More Info >	$0.32
3	Washer - Flat 308-060-013 More Info >	$0.04
4	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	$8.56
5	Bolt 301-206-403 More Info >	$0.60
6	Hydraulic Hose Kit 409-448-703 More Info >	$329.81
7	Nut - Nyloc 307-206-053 More Info >	$0.54
8	Bolt 301-216-503 More Info >	$5.63
9	Washer - Spring 308-160-043 More Info >	$0.67
10	Seal Kit - Side Shift 408-000-062 More Info >	$193.07
12	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
13	Pin - Top Link 419-000-023 More Info >	$31.76
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
15	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
16	Bolt 301-212-113 More Info >	Price on Request
17	Slide Plate - Side Shift 413-000-086 More Info >	$32.49
18	Slide Pad - Side Shift 413-000-087 More Info >	$36.38
19	Countersunk Screw 302-206-165 More Info >	$1.12
20	Grease Nipple - 1/4" Short 208-442-600 More Info >	$3.61
21	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
22	Pin 406-346-410 More Info >	$6.33
23	Stand - Front 413-000-073 More Info >	$267.50
24	Cap - Tube Insert Square 209-480-661 More Info >	$19.90
25	Pin - Linkage - Upper Dual Cat. 419-300-800 More Info >	$26.54
26	Hydraulic Hose 409-000-067 More Info >	Price on Request
27	Hydraulic Hose 409-000-068 More Info >	$96.50
