752 - Flaildek S4 - 185 - Transport System

Name: Roll Pin [202-447-980]

SKU#: 202-447-980

Price:

$5.14

Name: Linch Pin - Ø7/16" x 1-3/4" [203-300-700]

SKU#: 203-300-700

Price:

$3.50

Name: Circlip/Snap Ring - External [204-820-353]

SKU#: 204-820-353

Price:

$12.72

Name: Grease Nipple - Trimax Specification [208-442-650]

SKU#: 208-442-650

Price:

$5.89

Name: Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203]

SKU#: 301-208-203

Price:

$0.90

Name: Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303]

SKU#: 301-208-303

Price:

$0.62

Name: Bolt - Hex Head - M16 x 30 - Trimax Specification [301-216-303]

SKU#: 301-216-303

Price:

$4.03

Name: Bolt - Hex Head - M16 x 60 - Trimax Specification [301-216-603]

SKU#: 301-216-603

Price:

$3.85

Name: Bolt - Hex Head - M12 x 160 - Trimax Specification [301-612-163]

SKU#: 301-612-163

Price:

$6.73

Name: Bolt - Hex Head - M16 x 100 - Trimax Specification [301-616-103]

SKU#: 301-616-103

Price:

$5.93

Name: Cap Screw - Socket Head - M8 x 20 [303-208-203]

SKU#: 303-208-203

Price:

Price on Request

Name: Bolt - Hex Head - M10 x 50 [304-210-503]

SKU#: 304-210-503

Price:

Price on Request

Name: Nut - Hex Nyloc - M22 x 1.5 [307-122-053]

SKU#: 307-122-053

Price:

$7.60

Name: Nut - Nyloc [307-208-053]

SKU#: 307-208-053

Price:

$0.20

Name: Nut - Nyloc [307-210-053]

SKU#: 307-210-053

Price:

$0.57

Name: Nut - Nyloc M12 - Trimax Specification - [307-212-053]

SKU#: 307-212-053

Price:

$0.67

Name: Nut - Plain [307-216-013]

SKU#: 307-216-013

Price:

$1.61

Name: Nut - Nyloc M16 - Trimax Specification - [307-216-053]

SKU#: 307-216-053

Price:

$1.10

Name: Washer - Flat [308-080-013]

SKU#: 308-080-013

Price:

$0.10

Name: Washer - Spring [308-160-043]

SKU#: 308-160-043

Price:

$0.67

Name: Washer - Heavy Flat [308-160-063]

SKU#: 308-160-063

Price:

$1.65

Name: Washer - Wedge Lock M16 - Trimax Specification - [308-160-083]

SKU#: 308-160-083

Price:

$5.63

Name: Washer [308-220-013]

SKU#: 308-220-013

Price:

Price on Request

Name: Bush - Pivot [402-000-158]

SKU#: 402-000-158

Price:

Price on Request

Name: Height Adjuster Block [412-000-255]

SKU#: 412-000-255

Price:

$86.67

Name: Set Screw [412-000-610]

SKU#: 412-000-610

Price:

$33.59

Name: Collar - Height Adjuster [412-850-260]

SKU#: 412-850-260

Price:

$36.93

Name: Wheel - Semi Pneumatic [416-000-076]

SKU#: 416-000-076

Price:

$268.00

Name: Bearing - Trimax Specification [401-000-047]

SKU#: 401-000-047

Price:

$23.80

Name: Sleeve - Castor Axle Ø13 X Ø24 X 120 [402-000-155]

SKU#: 402-000-155

Price:

$113.00

Name: Pad [417-153-140]

SKU#: 417-153-140

Price:

$38.34

Name: Pin - Linkage - Top Link [419-301-150]

SKU#: 419-301-150

Price:

$14.76

Name: Height Indicator Bracket Zinc Plated [430-000-005]

SKU#: 430-000-005

Price:

Price on Request

Name: Bearing Assembly - Maintenance Free [430-000-054]

SKU#: 430-000-054

Price:

Price on Request

Name: Castor Boss - Zinc Plated [435-000-029]

SKU#: 435-000-029

Price:

Price on Request

Name: Castor Retaining Ring Zinc Plated [435-000-033]

SKU#: 435-000-033

Price:

Price on Request

Name: Castor Stem Weldment - Zinc Plated [435-000-034]

SKU#: 435-000-034

Price:

Price on Request

Name: JD Link Arm - Weldment - LH [435-000-066]

SKU#: 435-000-066

Price:

Price on Request

Name: JD Link Arm - Weldment - RH [435-000-068]

SKU#: 435-000-068

Price:

Price on Request

Name: Linkage Adjuster - Weldment [435-000-110]

SKU#: 435-000-110

Price:

Price on Request

Name: Roller Weldment - 4" Roller - Flaildek - 185 [435-000-159]

SKU#: 435-000-159

Price:

Price on Request

Name: Skid - Weldment - RH [435-000-170]

SKU#: 435-000-170

Price:

Price on Request

Name: Skid - Weldment - LH [435-000-173]

SKU#: 435-000-173

Price:

Price on Request

Name: Bow Shackle - Stainless - Ø6mm [214-446-250]

SKU#: 214-446-250

Price:

Price on Request

Name: Height Adjuster Block with Grease Nipple [412-330-280]

SKU#: 412-330-280

Price:

$86.67

Name: Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2 [412-152-420]

SKU#: 412-152-420

Price:

$98.44

Part #	Number on image	Usage Notes
435-000-066	38	REQUIRED FOR JOHN DEERE 1580 POWER UNITS
435-000-068	39	REQUIRED FOR JOHN DEERE 1580 POWER UNITS

Trimax Parts Shop.

Quick Order

Trimax Customer Centre.

Identify your Mower

Customer App

Trimax Dealer Centre.

Dealer App

Trimax Academy

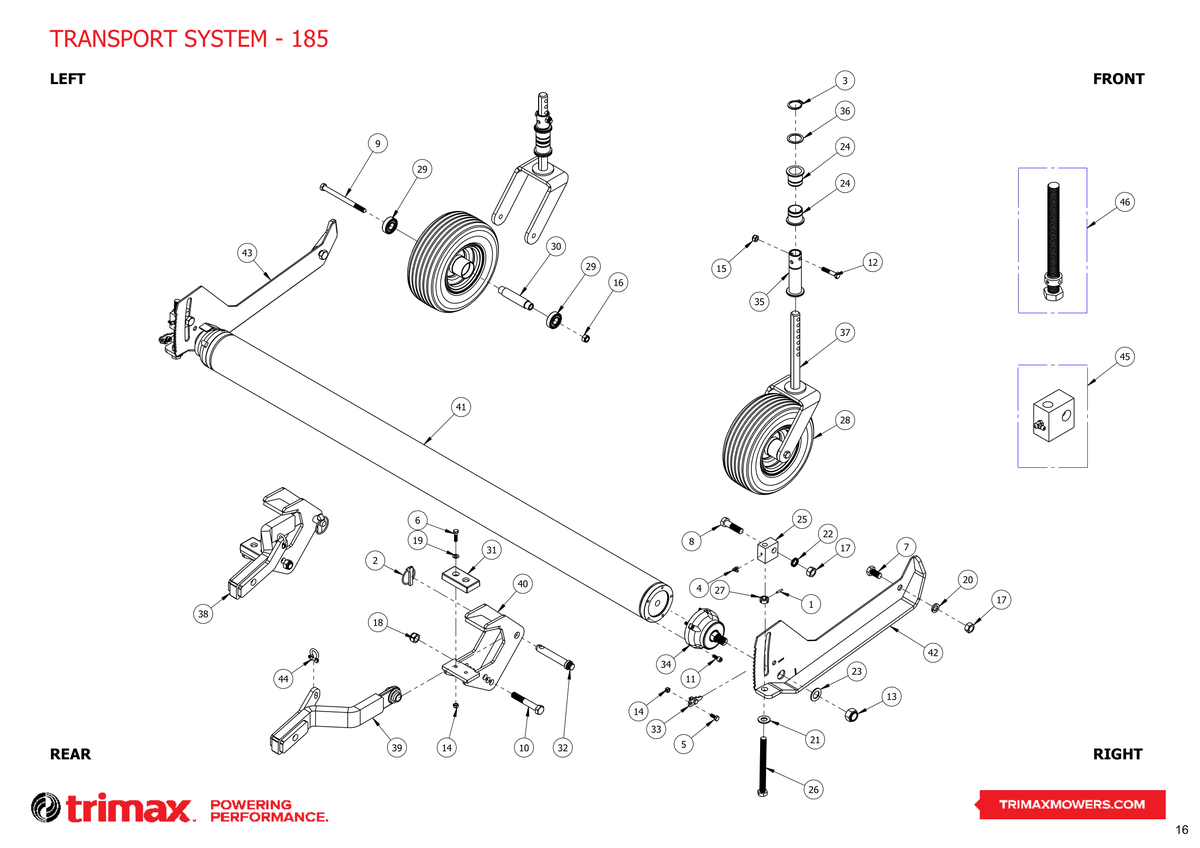

752 - Flaildek S4 - 185 - Transport System

No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	$5.14
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$3.50
3	Circlip/Snap Ring - External 204-820-353 More Info >	$12.72
4	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
5	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
6	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	$0.62
7	Bolt - Hex Head - M16 x 30 - Trimax Specification 301-216-303 More Info >	$4.03
8	Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603 More Info >	$3.85
9	Bolt - Hex Head - M12 x 160 - Trimax Specification 301-612-163 More Info >	$6.73
10	Bolt - Hex Head - M16 x 100 - Trimax Specification 301-616-103 More Info >	$5.93
11	Cap Screw - Socket Head - M8 x 20 303-208-203 More Info >	Price on Request
12	Bolt - Hex Head - M10 x 50 304-210-503 More Info >	Price on Request
13	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	$7.60
14	Nut - Nyloc 307-208-053 More Info >	$0.20
15	Nut - Nyloc 307-210-053 More Info >	$0.57
16	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
17	Nut - Plain 307-216-013 More Info >	$1.61
18	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.10
19	Washer - Flat 308-080-013 More Info >	$0.10
20	Washer - Spring 308-160-043 More Info >	$0.67
21	Washer - Heavy Flat 308-160-063 More Info >	$1.65
22	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
23	Washer 308-220-013	Price on Request
24	Bush - Pivot 402-000-158	Price on Request
25	Height Adjuster Block 412-000-255 More Info >	$86.67
26	Set Screw 412-000-610	$33.59
27	Collar - Height Adjuster 412-850-260 More Info >	$36.93
28	Wheel - Semi Pneumatic 416-000-076 More Info >	$268.00
29	Bearing - Trimax Specification 401-000-047 More Info >	$23.80
30	Sleeve - Castor Axle Ø13 X Ø24 X 120 402-000-155 More Info >	$113.00
31	Pad 417-153-140 More Info >	$38.34
32	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
33	Height Indicator Bracket Zinc Plated 430-000-005 More Info >	Price on Request
34	Bearing Assembly - Maintenance Free 430-000-054 More Info >	Price on Request
35	Castor Boss - Zinc Plated 435-000-029 More Info >	Price on Request
36	Castor Retaining Ring Zinc Plated 435-000-033 More Info >	Price on Request
37	Castor Stem Weldment - Zinc Plated 435-000-034 More Info >	Price on Request
38	JD Link Arm - Weldment - LH i See notes section for usage notes on this part 435-000-066 More Info >	Price on Request
39	JD Link Arm - Weldment - RH i See notes section for usage notes on this part 435-000-068 More Info >	Price on Request
40	Linkage Adjuster - Weldment 435-000-110 More Info >	Price on Request
41	Roller Weldment - 4" Roller - Flaildek - 185 435-000-159 More Info >	Price on Request
42	Skid - Weldment - RH 435-000-170 More Info >	Price on Request
43	Skid - Weldment - LH 435-000-173 More Info >	Price on Request
44	Bow Shackle - Stainless - Ø6mm 214-446-250 More Info >	Price on Request
45	Height Adjuster Block with Grease Nipple 412-330-280 More Info >	$86.67
46	Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2 412-152-420 More Info >	$98.44
