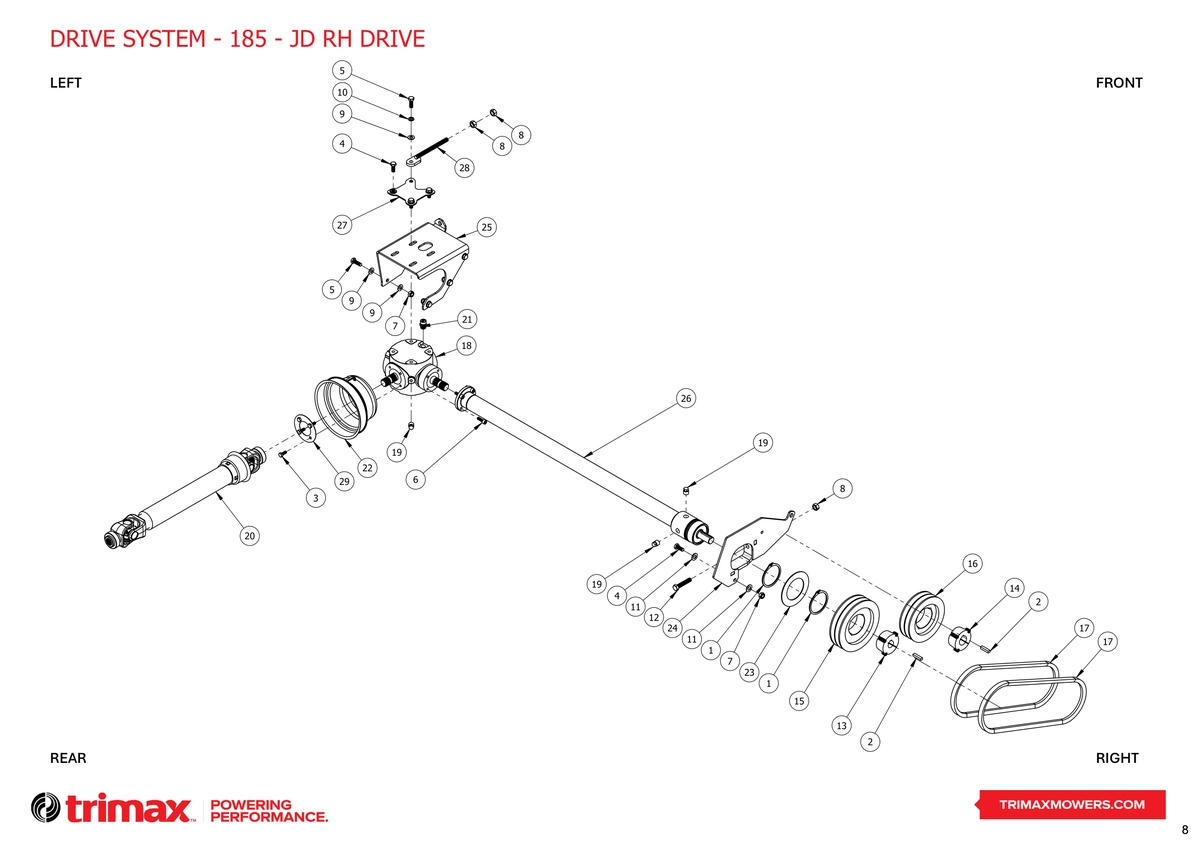

752 - Flaildek S4 - 185 - Drive System JD RH Drive

Name: Circlip - External - 75mm [204-000-008]

SKU#: 204-000-008

Price:

Price on Request

Name: Key [205-000-004]

SKU#: 205-000-004

Price:

$11.91

Name: Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203]

SKU#: 301-208-203

Price:

$0.90

Name: Bolt - Hex Head - M10 x 25 - Trimax Specification [301-210-253]

SKU#: 301-210-253

Price:

Price on Request

Name: Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303]

SKU#: 301-210-303

Price:

$0.86

Name: Cap Screw - Socket Head - M8 x 25 - Trimax Specification [303-208-253]

SKU#: 303-208-253

Price:

Price on Request

Name: Nut - Nyloc [307-210-053]

SKU#: 307-210-053

Price:

$0.57

Name: Nut - Plain M12 - Trimax Specification - [307-212-013]

SKU#: 307-212-013

Price:

$0.57

Name: Washer - Flat [308-100-013]

SKU#: 308-100-013

Price:

$0.54

Name: Washer - Spring [308-100-043]

SKU#: 308-100-043

Price:

$0.18

Name: Washer - Flat M12 - Trimax Specification - [308-120-013]

SKU#: 308-120-013

Price:

$0.45

Name: Set Screw [313-212-603]

SKU#: 313-212-603

Price:

$1.82

Name: Bush - Taperlock - Trimax Specification [402-000-141]

SKU#: 402-000-141

Price:

$18.00

Name: Bush - Taper Lock [402-060-670]

SKU#: 402-060-670

Price:

$20.61

Name: Pulley - Taperlock - Trimax Specification [403-000-144]

SKU#: 403-000-144

Price:

$77.00

Name: Pulley - Taper Lock [403-361-140]

SKU#: 403-361-140

Price:

$62.66

Name: Vee Belt - Trimax Specification [404-040-430]

SKU#: 404-040-430

Price:

$30.00

Name: Kubota Gearbox [405-200-080]

SKU#: 405-200-080

Price:

$1,700.00

Name: Oil Plug - Hex Head - Trimax Specification [405-207-211]

SKU#: 405-207-211

Price:

$22.20

Name: John Deere Driveshaft [406-339-001]

SKU#: 406-339-001

Price:

$1,375.00

Name: Breather - Capped 3/8" BSP [408-000-083]

SKU#: 408-000-083

Price:

$25.40

Name: Cone [410-440-409]

SKU#: 410-440-409

Price:

$51.00

Name: Extension Shaft Hole Cover Zinc Plated [430-000-003]

SKU#: 430-000-003

Price:

Price on Request

Name: Endplate - Drive End - Bolt On - Weldment - RH Drive [435-000-058]

SKU#: 435-000-058

Price:

Price on Request

Name: Gearbox Mount Folding - RH Drive [435-000-063]

SKU#: 435-000-063

Price:

Price on Request

Name: Extension Shaft - Assembly - 185 - 1055 - FDS4 [440-000-072]

SKU#: 440-000-072

Price:

Price on Request

Name: Gearbox Adjuster - Plate [440-000-074]

SKU#: 440-000-074

Price:

Price on Request

Name: Tensioner Adjustment Weldment [440-000-076]

SKU#: 440-000-076

Price:

Price on Request

Name: Plate - PTO Cone Retainer [450-440-381]

SKU#: 450-440-381

Price:

$7.31

No.	Product Name	Price
1	Circlip - External - 75mm 204-000-008 More Info >	Price on Request
2	Key 205-000-004	$11.91
3	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
4	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	Price on Request
5	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	$0.86
6	Cap Screw - Socket Head - M8 x 25 - Trimax Specification 303-208-253 More Info >	Price on Request
7	Nut - Nyloc 307-210-053 More Info >	$0.57
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
9	Washer - Flat 308-100-013 More Info >	$0.54
10	Washer - Spring 308-100-043 More Info >	$0.18
11	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
12	Set Screw 313-212-603 More Info >	$1.82
13	Bush - Taperlock - Trimax Specification 402-000-141	$18.00
14	Bush - Taper Lock 402-060-670 More Info >	$20.61
15	Pulley - Taperlock - Trimax Specification 403-000-144	$77.00
16	Pulley - Taper Lock 403-361-140 More Info >	$62.66
17	Vee Belt - Trimax Specification 404-040-430 More Info >	$30.00
18	Kubota Gearbox 405-200-080 More Info >	$1,700.00
19	Oil Plug - Hex Head - Trimax Specification 405-207-211 More Info >	$22.20
20	John Deere Driveshaft 406-339-001 More Info >	$1,375.00
21	Breather - Capped 3/8" BSP 408-000-083 More Info >	$25.40
22	Cone 410-440-409 More Info >	$51.00
23	Extension Shaft Hole Cover Zinc Plated 430-000-003 More Info >	Price on Request
24	Endplate - Drive End - Bolt On - Weldment - RH Drive 435-000-058 More Info >	Price on Request
25	Gearbox Mount Folding - RH Drive 435-000-063 More Info >	Price on Request
26	Extension Shaft - Assembly - 185 - 1055 - FDS4 440-000-072 More Info >	Price on Request
27	Gearbox Adjuster - Plate 440-000-074 More Info >	Price on Request
28	Tensioner Adjustment Weldment 440-000-076 More Info >	Price on Request
29	Plate - PTO Cone Retainer 450-440-381 More Info >	$7.31
