NOTES:

Part #	Number on image	Usage Notes
412-000-256	13	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-258	13	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-286	15	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-294	15	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-287	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-295	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment

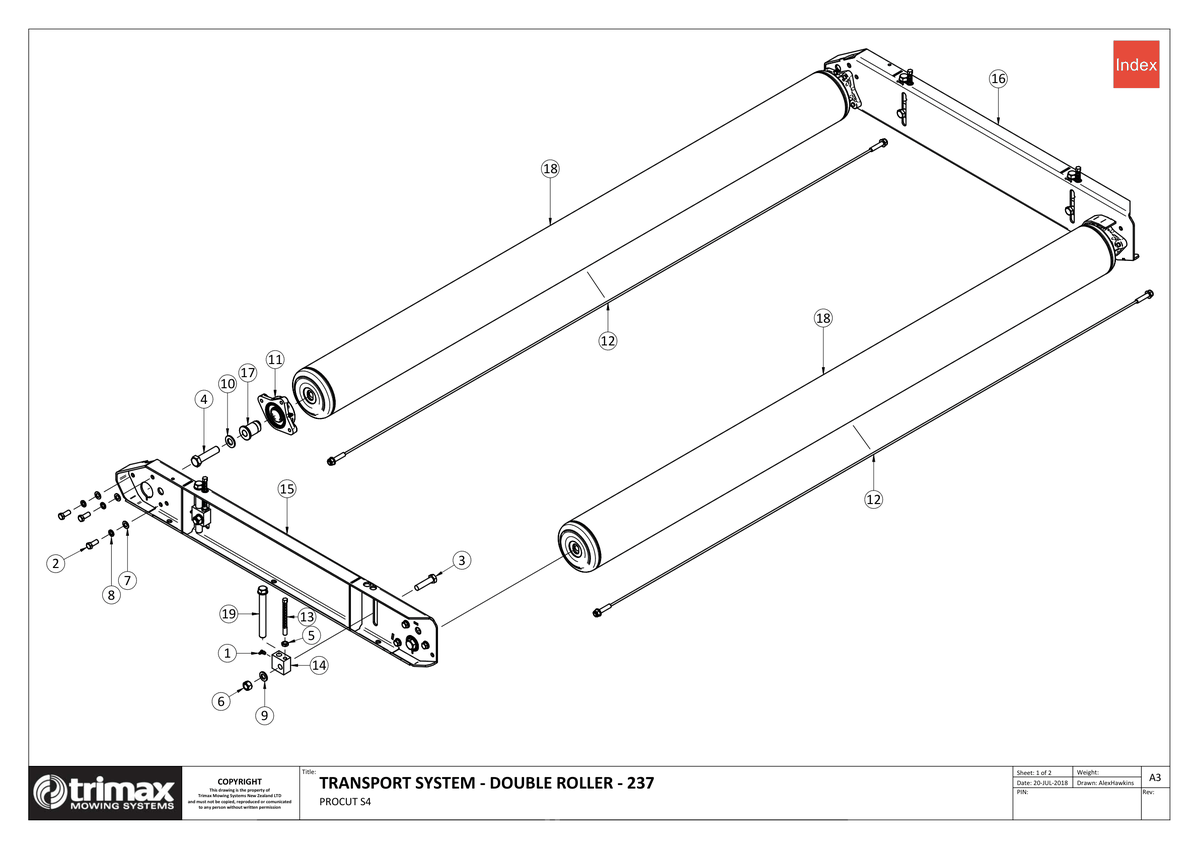

736 - Procut S4 237 - Transport System Double Roller

ProCut S4 237

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	$6.76
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	$14.19
5	Nut - Half 307-212-023 More Info >	$1.13
6	Nut - Plain 307-216-013 More Info >	$1.61
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
10	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
11	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-032 More Info >	$113.00
12	Scraper - Roller 237 404-320-124 More Info >	$80.25
13	Height Indicator - Metric i See notes section for usage notes on this part 412-000-256 More Info >	$37.45
13	Height Indicator - Imperial i See notes section for usage notes on this part 412-000-258 More Info >	$24.52
14	Height Adjuster Block 412-000-279 More Info >	$86.67
15	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-286 More Info >	$663.40
15	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-294 More Info >	$524.30
16	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-287 More Info >	$663.40
16	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-295 More Info >	$524.30
17	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	$59.00
18	Roller Weldment - Loctek 237 414-000-094 More Info >	$1,017.00
19	Height Adjuster Rod - RapidSet 450-000-126 More Info >	$69.55
