NOTES:

Part #	Number on image	Usage Notes
413-000-088	18	Headstock is available in two configurations, Painted or Galvanised order according to mower fitment
413-000-089	18	Headstock is available in two configurations, Painted or Galvanised order according to mower fitment

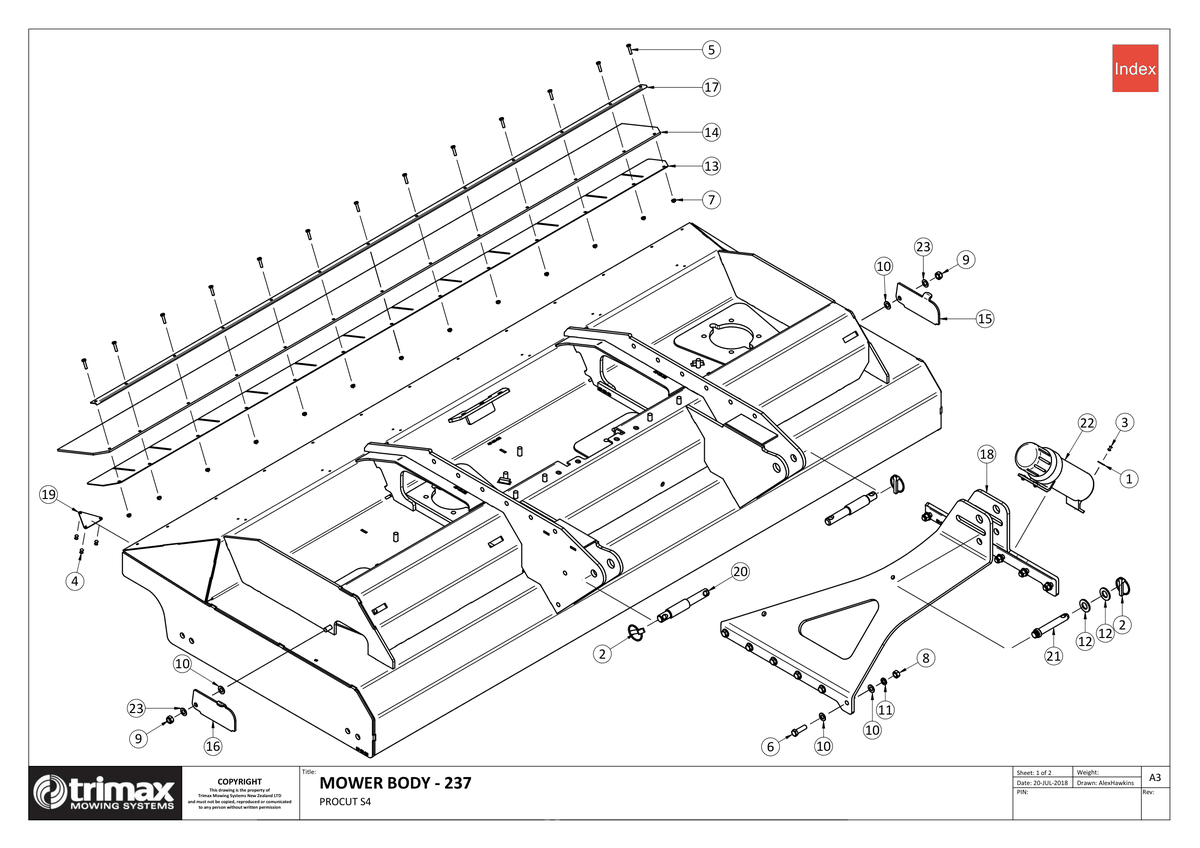

736 - Procut S4 237 - Mower Body

ProCut S4 237

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	$1.10
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
3	Blind Rivet 213-000-004 More Info >	$1.02
4	Blind Rivet 213-443-250 More Info >	$0.57
5	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	$0.59
6	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
7	Nut - Nyloc 307-206-053 More Info >	$0.54
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
11	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
12	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
13	Anti-Droop Strip - Safety Flap 237 410-000-094 More Info >	$159.00
14	Safety Flap 237 410-000-097 More Info >	$183.64
15	Wash Panel - RH 410-000-134 More Info >	$37.96
16	Wash Panel - LH 410-000-135 More Info >	$37.96
17	Clamp Strip - Safety Flap 237 410-841-220 More Info >	$76.11
18	Headstock Weldment i See notes section for usage notes on this part 413-000-088 More Info >	$1,265.38
18	Headstock Weldment - Galv PC4 i See notes section for usage notes on this part 413-000-089 More Info >	Price on Request
19	Cap Plate 417-001-024 More Info >	Price on Request
20	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
21	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
22	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	$45.45
23	Washer - Crinkle 450-000-116 More Info >	$1.78
