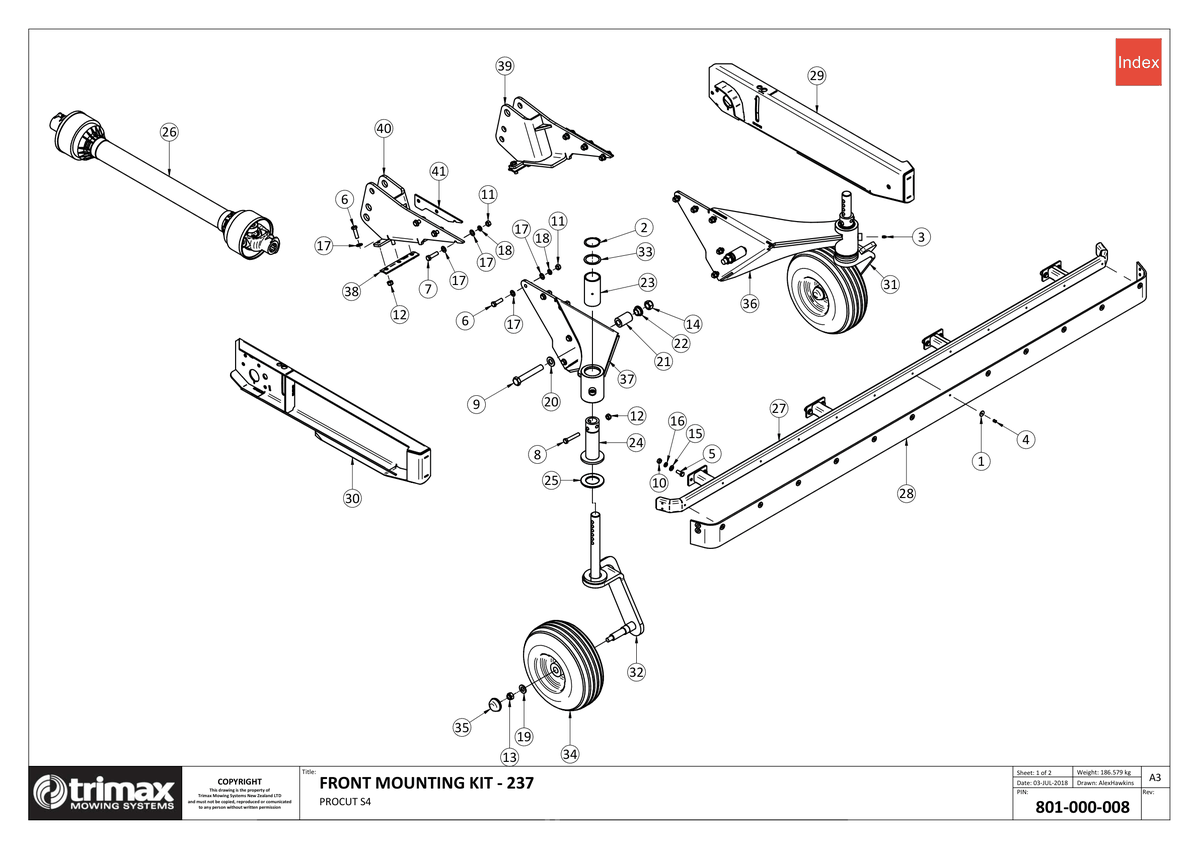

736 - Procut S4 237 - Front Mounting Kit

ProCut S4 237

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	$1.10
2	Circlip/Snap Ring - External 204-820-522 More Info >	$6.51
3	Grease Nipple - Trimax Specification 208-442-600 More Info >	$3.61
4	Blind Rivet 213-443-250 More Info >	$0.57
5	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	$0.86
6	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
7	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
8	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	$1.88
9	Bolt - Hex Head - M20 x 130 - Trimax Specification 301-620-133 More Info >	$16.02
10	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	$0.48
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
13	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
14	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	$1.57
15	Washer - Flat 308-100-013 More Info >	$0.54
16	Washer - Spring 308-100-043 More Info >	$0.18
17	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
18	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
19	Washer - Heavy Flat 308-160-063 More Info >	$1.65
20	Washer - Flat 308-200-013 More Info >	$1.16
21	Bush - Link Plate 402-000-072 More Info >	Price on Request
22	Bush - Top Hat 402-000-073 More Info >	Price on Request
23	Bush - Pivot 402-320-060 More Info >	$189.69
24	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	$437.59
25	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	$30.56
26	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-870 More Info >	$589.47
29	Side Channel Weldment - LocTek - SRR LH 412-000-305 More Info >	$438.70
30	Side Channel Weldment - LocTek - SRR RH 412-000-306 More Info >	$438.70
31	Front Castor Weldment - LH 412-320-051 More Info >	$802.50
32	Front Castor Weldment - RH 412-320-052 More Info >	$802.50
33	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	$122.92
34	Wheel Assembly 416-449-010 More Info >	$284.40
35	Grease Cap - Wheel 416-449-015 More Info >	$24.66
36	Castor Mount Weldment LH - Front Mount Kit 417-000-937 More Info >	Price on Request
37	Castor Mount Weldment RH - Front Mount Kit 417-000-938 More Info >	Price on Request
38	Link Plate Doubler Folding 178/237/290 417-000-952 More Info >	Price on Request
39	Link Plate Weldment LH 178/237/290 417-001-312 More Info >	Price on Request
40	Link Plate Weldment RH 178/237/290 417-001-313 More Info >	Price on Request
41	Link Plate Spacer 417-001-316 More Info >	Price on Request
