NOTES:

Part #	Number on image	Usage Notes
412-000-256	14	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-258	14	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-305	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-307	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-306	17	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-308	17	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment

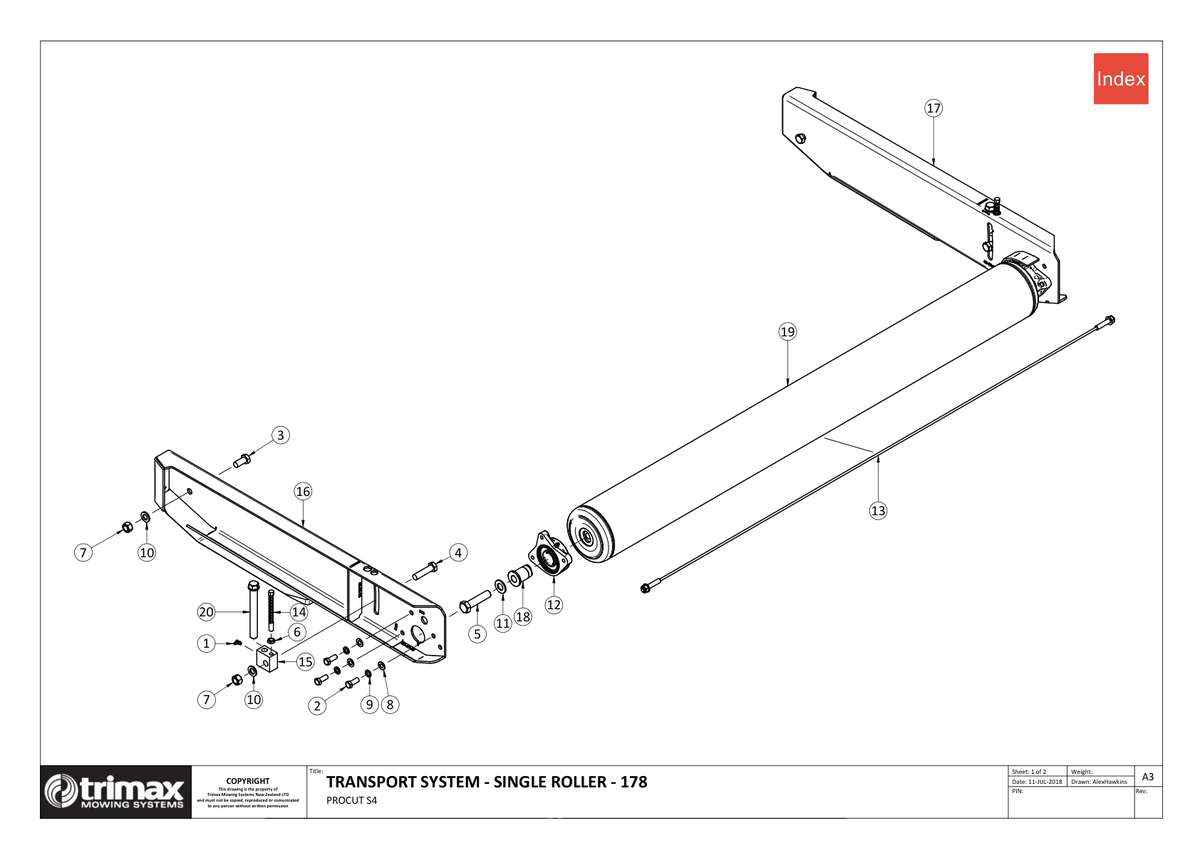

736 - Procut S4 178 - Transport System - Single Roller

ProCut S4 178

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
3	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	$3.64
4	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	$6.76
5	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	$14.19
6	Nut - Half 307-212-023 More Info >	$1.13
7	Nut - Plain 307-216-013 More Info >	$1.61
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
10	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
11	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
12	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-032 More Info >	$113.00
13	Scraper - Roller Scraper Kit - 178cm 404-320-122 More Info >	$80.25
14	Height Indicator - Metric i See notes section for usage notes on this part 412-000-256 More Info >	$37.45
14	Height Indicator - Imperial i See notes section for usage notes on this part 412-000-258 More Info >	$24.52
15	Height Adjuster Block 412-000-279 More Info >	$86.67
16	Side Channel Weldment - LocTek - SRR LH i See notes section for usage notes on this part 412-000-305 More Info >	$438.70
16	Side Channel Weldment - LocTek - SRR LH i See notes section for usage notes on this part 412-000-307 More Info >	$513.60
17	Side Channel Weldment - LocTek - SRR RH i See notes section for usage notes on this part 412-000-306 More Info >	$438.70
17	Side Channel Weldment - LocTek - SRR RH i See notes section for usage notes on this part 412-000-308 More Info >	$513.60
18	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	$59.00
19	Roller Weldment - Loctek 178 414-000-092 More Info >	$846.00
20	Height Adjuster Rod - RapidSet 450-000-126 More Info >	$69.55
