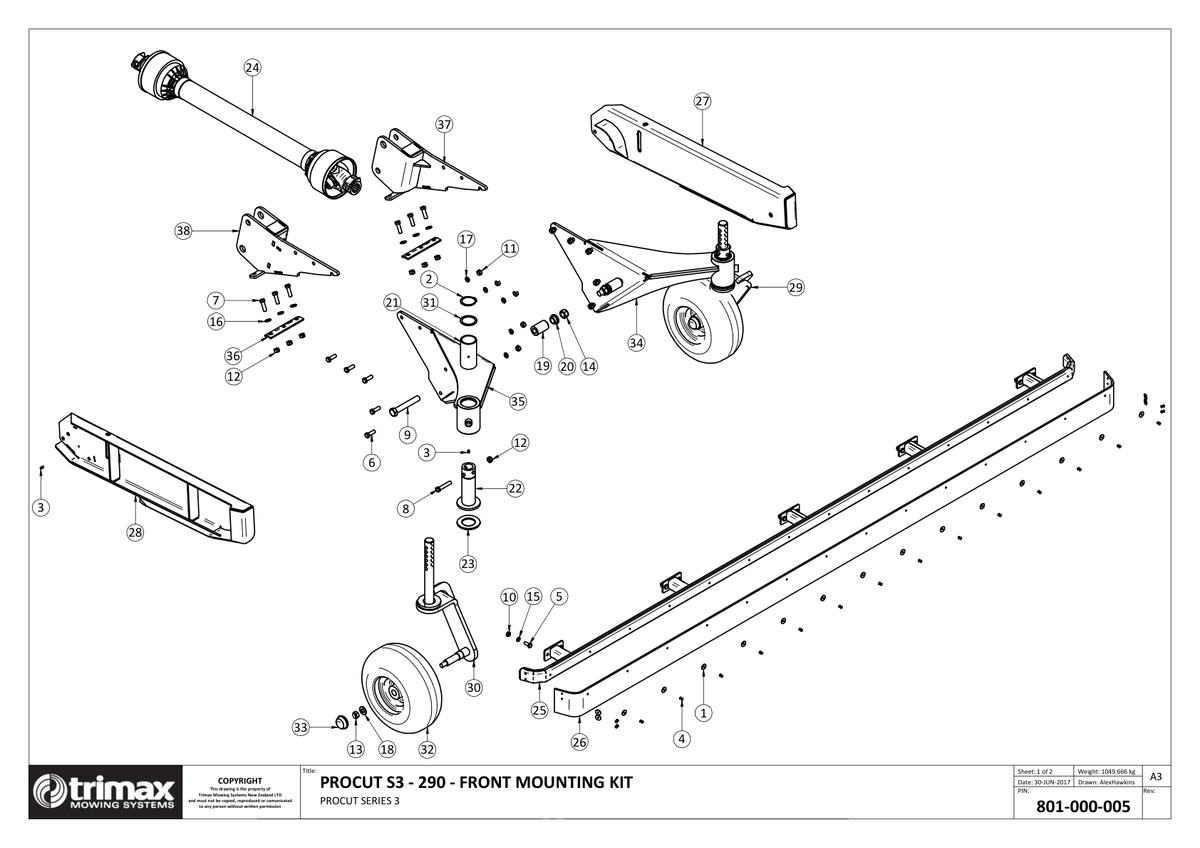

736-290 - Procut S3 - Front Mounting Kit

ProCut S3 290

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	$1.10
2	Circlip/Snap Ring - External 204-820-522 More Info >	$6.51
3	Grease Nipple - 1/4" Short 208-442-600 More Info >	$3.61
4	Blind Rivet 213-443-250 More Info >	$0.57
5	Bolt 301-210-303 More Info >	$0.86
6	Bolt 301-212-353 More Info >	$2.71
7	Bolt 301-212-403 More Info >	$2.93
8	Bolt 301-212-653 More Info >	$1.88
9	Bolt 301-620-133 More Info >	$16.02
10	Nut - Plain 307-210-013 More Info >	$0.48
11	Nut - Plain 307-212-013 More Info >	$0.57
12	Nut - Nyloc 307-212-053 More Info >	$0.67
13	Nut - Nyloc 307-216-053 More Info >	$1.02
14	Nut - Nyloc 307-220-053 More Info >	$1.57
15	Washer - Spring 308-100-043 More Info >	$0.18
16	Washer - Flat 308-120-013 More Info >	$0.45
17	Washer - Spring 308-120-043 More Info >	$0.45
18	Washer - Heavy Flat 308-160-063 More Info >	$1.65
19	Bush - Link Plate 402-000-072 More Info >	Price on Request
20	Bush - Top Hat 402-000-073 More Info >	Price on Request
21	Bush - Pivot 402-320-060 More Info >	$189.69
22	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	$437.59
23	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	$30.56
24	PTO Complete Driveshaft - 1200mm - 540/1000rpm (Trimax Specification) 406-340-870 More Info >	$589.47
25	Protector Bar Weldment - Front 290 410-000-260 More Info >	Price on Request
27	Side Channel Weldment - SRR LH PC3 412-000-091 More Info >	$382.94
28	Side Channel Weldment - SRR RH PC3 412-000-092 More Info >	$382.94
29	Front Castor Weldment - LH 412-320-051 More Info >	$802.50
30	Front Castor Weldment - RH 412-320-052 More Info >	$802.50
31	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	$122.92
32	Wheel Assembly 416-449-010 More Info >	$284.40
33	Grease Cap - Wheel 416-449-015 More Info >	$24.66
34	Castor Mount Weldment LH - Front Mount Kit 417-000-937 More Info >	Price on Request
35	Castor Mount Weldment RH - Front Mount Kit 417-000-938 More Info >	Price on Request
36	Link Plate Doubler Folding 178/237/290 417-000-952 More Info >	Price on Request
37	Link Plate Weldment LH - Front Mount Kit 178/237/290 417-000-953 More Info >	Price on Request
38	Link Plate Weldment RH - Front Mount Kit 178/237/290 417-000-954 More Info >	Price on Request
