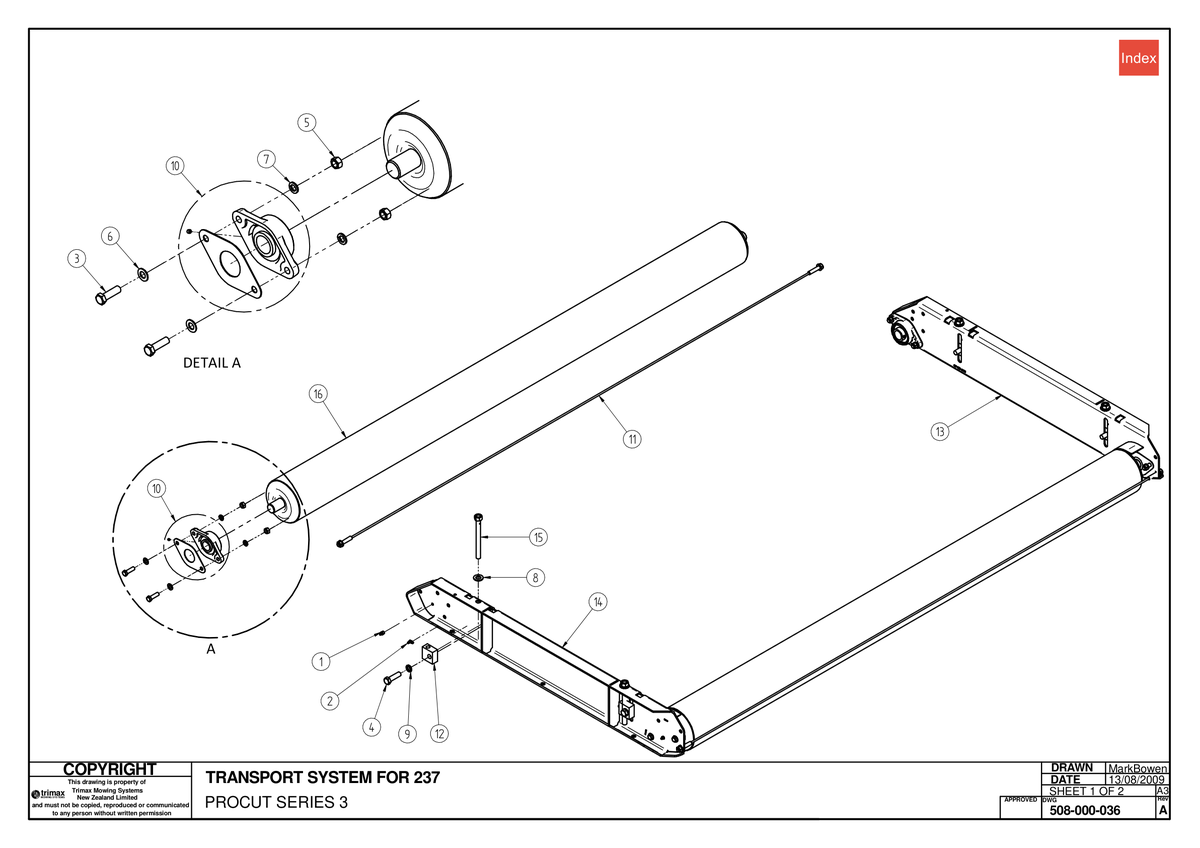

736-237 - Procut S3 - Transport System 237

ProCut S3 237

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - Trimax Specification [208-442-550] Grease Nipple - Trimax Specification 208-442-550
$3.06
2 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
$5.89
3 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
$2.93
4 Bolt - Hex Head - M16 x 55 - Trimax Specification [301-216-553] Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553
$6.42
5 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
$0.57
6 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
$0.45
7 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
$0.45
8 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
9 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - 308-160-083
$5.63
10 Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification [401-020-801] Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification 401-020-801
$92.00
11 Scraper - Roller 237 [404-320-124] Scraper - Roller 237 404-320-124
$80.25
12 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
$86.67
13 Side Channel Weldment - DR RH Ext "S" 178 [412-841-000] Side Channel Weldment - DR RH Ext "S" 178 412-841-000
$664.52
14 Side Channel Weldment - DR LH Ext "S" [412-841-010] Side Channel Weldment - DR LH Ext "S" 412-841-010
$664.52
15 Height Adj. Screw [412-850-251] Height Adj. Screw 412-850-251
$55.64
16 Roller Weldment 237 [414-320-023] Roller Weldment 237 414-320-023
$1,078.44
