NOTES:

Part #	Number on image	Usage Notes
401-020-800	4	Roller bearing and housing are available as kit only part number 401-020-801 401-020-801 Roller bearing kits includes roller bearing, housing and gasket
401-020-700	5	Roller bearing and housing are available as kit only part number 401-020-801 401-020-801 Roller bearing kits includes roller bearing, housing and gasket
401-020-802	6	Roller bearing and housing are available as kit only part number 401-020-801 401-020-801 Roller bearing kits includes roller bearing, housing and gasket

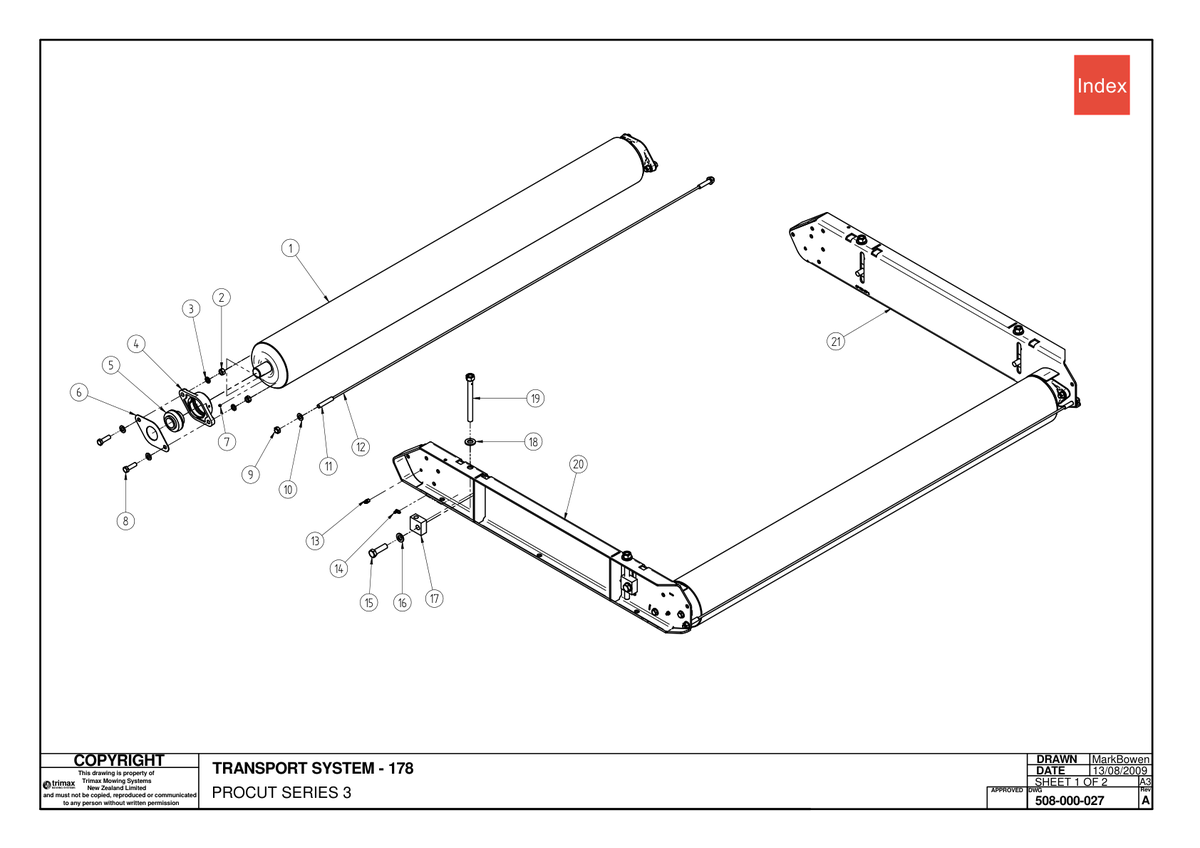

736-178 - Procut S3 - Transport System 178

ProCut S3 178

Grouped product items
No.	Product Name	Price
1	Roller Weldment 178 414-320-020 More Info >	$930.90
2	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
4	Bearing Housing i See notes section for usage notes on this part 401-020-800 More Info >	$17.12
5	Bearing i See notes section for usage notes on this part 401-020-700 More Info >	$56.92
6	Gasket - Paper - Roller Bearing Housing i See notes section for usage notes on this part 401-020-802 More Info >	$6.12
7	Grub Screw 144-104-025 More Info >	$0.95
8	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
11	Roller Scraper Adjuster 404-321-122	$13.31
12	Scraper - Roller Scraper Kit - 178cm 404-320-122 More Info >	$80.25
13	Grease Nipple - Trimax Specification 208-442-550 More Info >	$3.06
14	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
15	Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553 More Info >	$6.42
16	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
17	Height Adjuster Block 412-330-273 More Info >	$86.67
18	Washer - Heavy Flat 308-160-063 More Info >	$1.65
19	Height Adj. Screw 412-850-251 More Info >	$55.64
20	Side Channel Weldment - DR LH Ext "S" 412-841-010 More Info >	$664.52
21	Side Channel Weldment - DR RH Ext "S" 178 412-841-000 More Info >	$664.52
