NOTES:

Part #	Number on image	Usage Notes
407-329-090	3	Various shim sizes are available and sold individually, part numbers and sizers are: 407-329-090 - SHIM - 0.004in THICK ( 0.10mm ) 407-329-091 - SHIM - 0.002in THICK ( 0.05mm ) 407-329-092 - SHIM - 0.003in THICK ( 0.08mm ) 407-329-093 - SHIM - 0.005in THICK ( 0.12mm ) Use as required

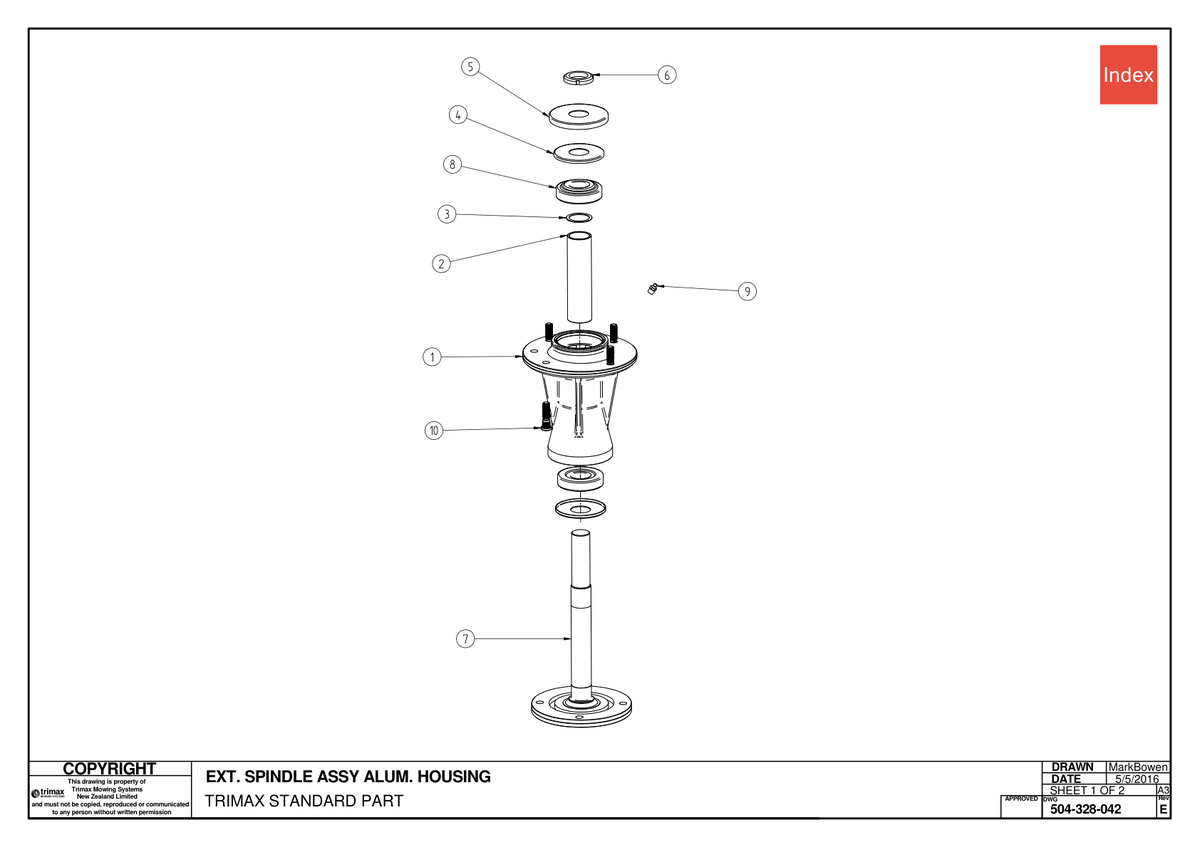

736-178 - Procut S3 - Spindle Type 5a - Breakdown

ProCut S3 178

Grouped product items
No.	Product Name	Price
1	Spindle Housing - Machined - Steadfast 407-329-032 More Info >	$589.78
2	Tube - Spindle Spacer 402-329-081 More Info >	$33.07
3	Shim i See notes section for usage notes on this part 407-329-090 More Info >	$3.10
4	Cap - Spindle Type 5a and 6e 407-329-001 More Info >	$18.19
5	Cap - Spindle Type 4/5/5a/6e 407-329-000 More Info >	$21.61
6	Lock Nut 401-021-750 More Info >	$13.59
7	Shaft - Spindle 407-000-014 More Info >	$399.84
8	Bearing 401-021-650 More Info >	$66.50
9	Grease Nipple - Trimax Specification 208-442-550 More Info >	$3.06
10	Wheel Stud 450-000-066 More Info >	$14.98
