NOTES:

Part #	Number on image	Usage Notes
401-021-900	12	Idler pulley assembly including the bearings available as part number 403-360-111.
402-000-078	13	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-190-101-1056452; GB: 730-190-145B-3002476. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-083	19	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-190-101-1056452; GB: 730-190-145B-3002476. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-064	20	A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
403-000-164	20	A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
404-040-520	23	Vee belts used prior to above serial numbers.
404-040-530	23	A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
404-040-860	25	Vee belts used prior to above serial numbers.
404-040-861	25	A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
405-000-015	26	For Gearbox assembly breakdown view for parts refer to page 22.
504-000-169	32	For Spindle assembly breakdown view for parts refer to page 18.

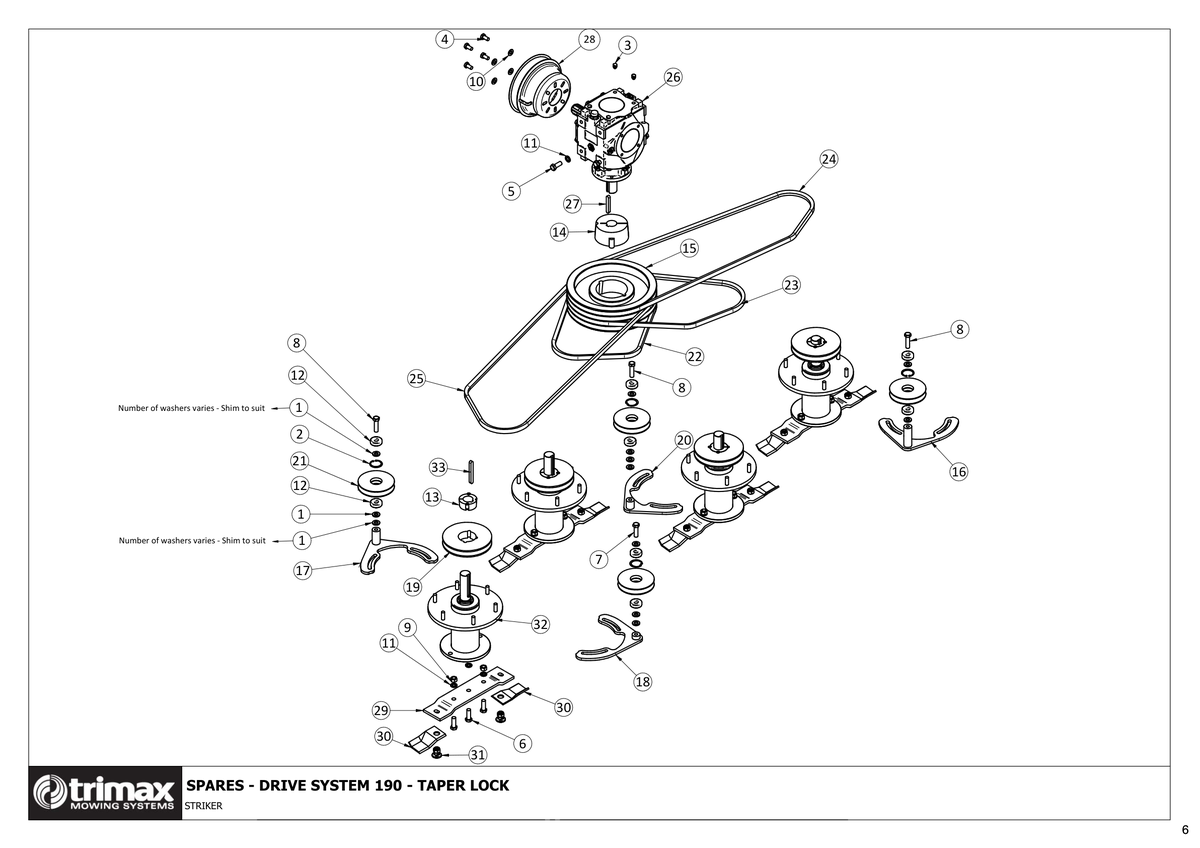

730 Striker S1 190 - Drive System - Taper Lock

Striker S1 190

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	$4.58
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
3	Blanking Plug 209-900-012 More Info >	$0.45
4	Bolt 301-210-203 More Info >	$1.61
5	Bolt 301-212-303 More Info >	$2.36
6	Bolt 301-212-353 More Info >	$2.71
7	Bolt 301-212-403 More Info >	$2.93
8	Bolt 301-212-453 More Info >	$3.04
9	Nut - Plain 307-212-013 More Info >	$0.57
10	Washer - Flat 308-100-013 More Info >	$0.54
11	Washer - Spring 308-120-043 More Info >	$0.45
12	Bearing i See notes section for usage notes on this part 401-021-900 More Info >	$18.65
13	Bush - Taper Lock i See notes section for usage notes on this part 402-000-078 More Info >	$22.23
14	Bush - Taper Lock 402-060-680 More Info >	$83.73
15	Pulley 403-000-059 More Info >	$211.03
16	Idler Weldment - Long 403-000-062 More Info >	$66.44
17	Idler Adjuster M 403-000-063 More Info >	$58.48
18	Idler Weldment - Very Short 403-000-065 More Info >	$66.44
19	Pulley - Taper Lock i See notes section for usage notes on this part 403-000-083 More Info >	$75.45
20	Idler Adjuster S i See notes section for usage notes on this part 403-000-064 More Info >	$55.65
20	Used on Striker 190 (ECN4576) i See notes section for usage notes on this part 403-000-164	Price on Request
21	Pulley - Idler 403-360-110 More Info >	$63.89
22	Vee Belt 404-040-480 More Info >	$31.30
23	Vee Belt i See notes section for usage notes on this part 404-040-520 More Info >	$50.50
23	Vee Belt i See notes section for usage notes on this part 404-040-530 More Info >	$34.00
24	Vee Belt 404-040-830 More Info >	$50.00
25	Vee Belt i See notes section for usage notes on this part 404-040-860 More Info >	$51.50
25	Vee Belt - B86 i See notes section for usage notes on this part 404-040-861 More Info >	$55.90
26	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	$1,712.00
27	Key - Gearbox 405-207-154 More Info >	$16.27
28	Cone - PTO Holes Punched 410-440-402 More Info >	$44.94
29	Blade Beam 150/190 411-000-022 More Info >	$73.21
30	Blades - Lazerbladez - Uplift 411-160-842 More Info >	$10.70
31	Blade Bolt - Lazer and Nexablades - With Nyloc Nut - Blade Mounting 411-322-050 More Info >	$6.50
32	Spindle Assembly - With Keyway - Striker i See notes section for usage notes on this part 504-000-169 More Info >	$889.38
