NOTES:

Part #	Number on image	Usage Notes
403-000-063	13	Use part number 504-000-093 - Idler Assembly Medium.
504-000-094	25	Use part number 403-000-064 - Idler Adjuster S Striker.
504-000-095	26	Use part number 403-000-065 - Idler Adjuster VS Striker.
504-000-092	27	Use part number 403-000-062 - Idler Adjuster L Striker.

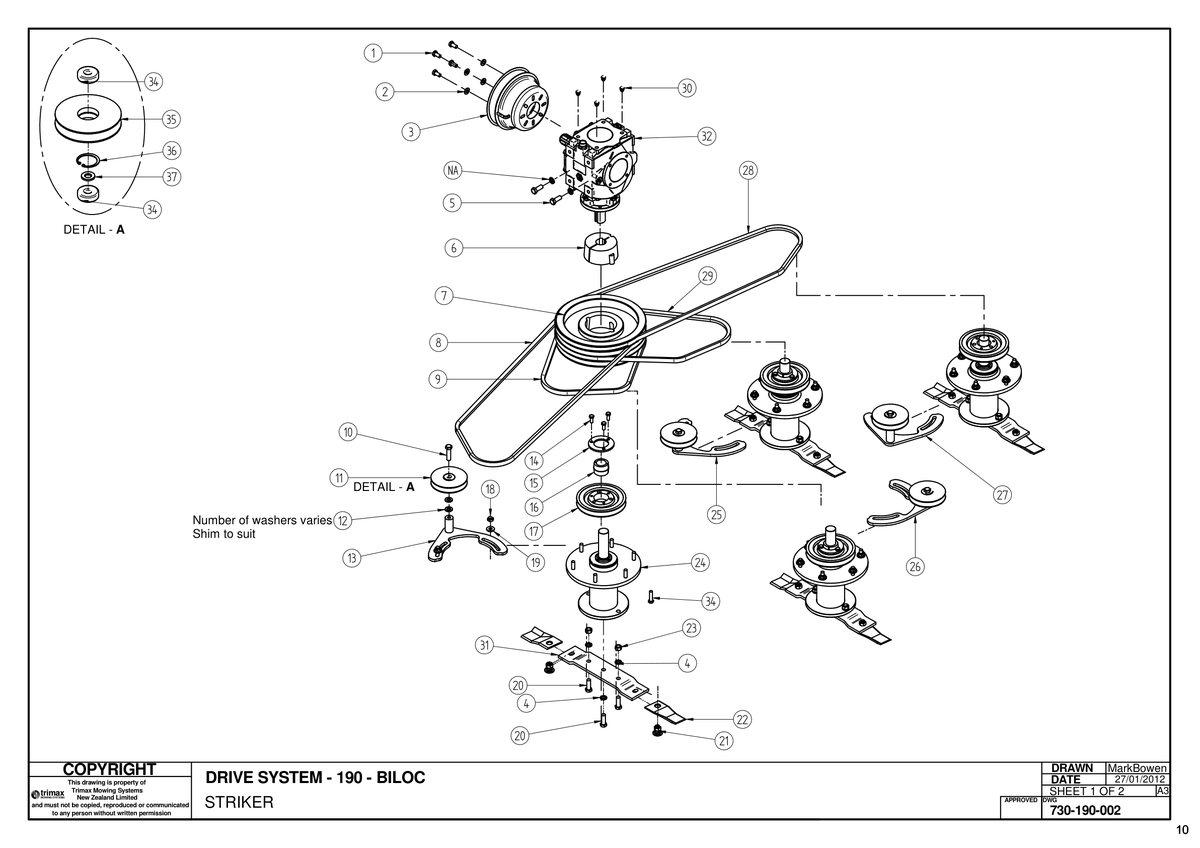

730 Striker S1 190 - Drive System - Biloc

Striker S1 190

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	$1.61
2	Washer - Flat 308-100-013 More Info >	$0.54
3	Cone - PTO Holes Punched 410-440-402 More Info >	$44.94
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
5	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
6	Bush - Taper Lock 402-060-680 More Info >	$83.73
7	Pulley 403-000-059 More Info >	$211.03
8	Vee Belt - Trimax Specification 404-040-860 More Info >	$51.50
9	Vee Belt - Trimax Specification 404-040-480 More Info >	$31.00
10	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
11	Pulley Assembly - Idler 403-360-111 More Info >	$112.00
12	Washer - Hardened 108-071-513 More Info >	$4.58
13	Idler Adjuster M i See notes section for usage notes on this part 403-000-063 More Info >	$58.48
14	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
15	Retainer Ring 402-060-450 More Info >	$17.30
16	Bush 402-060-320 More Info >	$30.58
17	Pulley 403-360-300 More Info >	$80.00
18	Nut - Nyloc 307-210-053 More Info >	$0.57
19	Washer - Heavy Flat 308-100-063 More Info >	$0.85
20	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
21	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	$7.00
22	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	$11.70
23	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
24	Spindle Assembly - Striker 504-000-096 More Info >	$889.38
25	Idler Assembly Short i See notes section for usage notes on this part 504-000-094 More Info >	$140.79
26	Idler Assembly Very Short i See notes section for usage notes on this part 504-000-095 More Info >	$140.79
27	Idler Assembly Long i See notes section for usage notes on this part 504-000-092 More Info >	$140.79
28	Vee Belt - Trimax Specification 404-040-830 More Info >	$50.00
29	Vee Belt - Trimax Specification 404-040-520 More Info >	$50.00
30	Blanking Plug - M12 209-900-012 More Info >	$0.45
31	Blade Beam 150/190 411-000-022 More Info >	$73.21
32	Gearbox 405-000-015 More Info >	$1,712.00
33	Set Screw 313-210-403 More Info >	$0.85
34	Bearing - Trimax Specification - 401-021-900 More Info >	$18.60
35	Pulley - Idler 403-360-110 More Info >	$63.89
36	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
37	Washer - Flat 108-071-413 More Info >	$2.88
