NOTES:

Part #	Number on image	Usage Notes
402-000-078	14	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
402-000-090	15	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
402-060-820	16	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-083	19	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-155	20	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-360-110	21	Idler pulley assembly including the bearings available as part number 403-360-111.
403-361-140	22	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
405-000-015	25	For Gearbox assembly breakdown view for parts refer to page 21.
504-000-169	31	For spindle assembly breakdown view for parts refer to page 17.

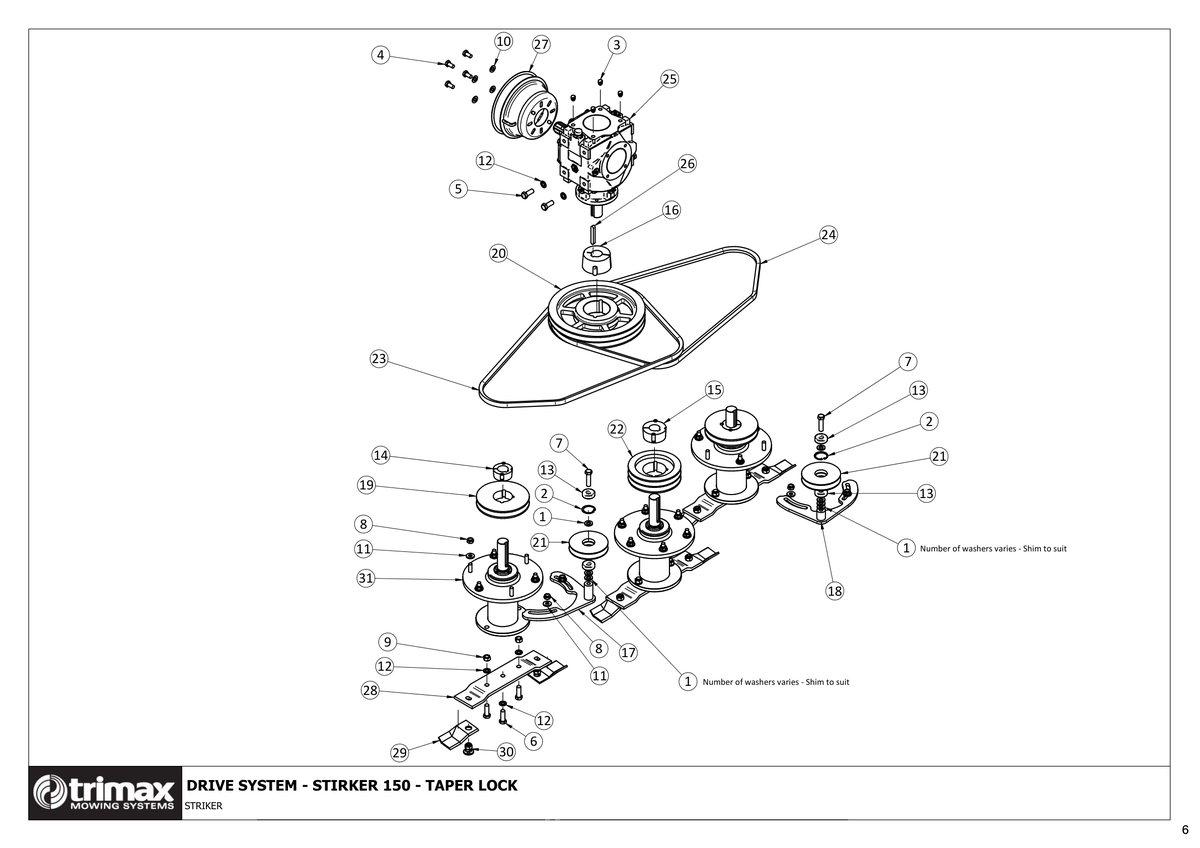

730 - Striker S1 150 - Drive System - Taper Lock

Striker S1 150

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	$4.58
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
3	Blanking Plug 209-900-012 More Info >	$0.45
4	Bolt 301-210-203 More Info >	$1.61
5	Bolt 301-212-303 More Info >	$2.36
6	Bolt 301-212-353 More Info >	$2.71
7	Bolt 301-212-453 More Info >	$3.04
8	Nut - Nyloc 307-210-053 More Info >	$0.57
9	Nut - Plain 307-212-013 More Info >	$0.57
10	Washer - Flat 308-100-013 More Info >	$0.54
11	Washer - Heavy Flat 308-100-063 More Info >	$0.85
12	Washer - Spring 308-120-043 More Info >	$0.45
13	Bearing 401-021-900 More Info >	$18.65
14	Bush - Taper Lock i See notes section for usage notes on this part 402-000-078 More Info >	$22.23
15	Bush - Taper Lock i See notes section for usage notes on this part 402-000-090 More Info >	$31.92
16	Bush - Taper Lock i See notes section for usage notes on this part 402-060-820 More Info >	$39.57
17	Idler Adjuster M 403-000-063 More Info >	$58.48
18	Idler Adjuster S 403-000-064 More Info >	$55.65
19	Pulley - Taper Lock i See notes section for usage notes on this part 403-000-083 More Info >	$75.45
20	Pulley - Taperlock 280mm x2SPB i See notes section for usage notes on this part 403-000-155	Price on Request
21	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	$63.89
22	Pulley - Taper Lock i See notes section for usage notes on this part 403-361-140 More Info >	$62.66
24	Vee Belt 404-040-700 More Info >	$40.70
25	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	$1,712.00
26	Key - Gearbox 405-207-154 More Info >	$16.27
27	Cone - PTO Holes Punched 410-440-402 More Info >	$44.94
28	Blade Beam 150/190 411-000-022 More Info >	$73.21
29	Blades - Lazerbladez - Uplift 411-160-842 More Info >	$10.70
30	Blade Bolt - Lazer and Nexablades - With Nyloc Nut - Blade Mounting 411-322-050 More Info >	$6.50
31	Spindle Assembly - With Keyway - Striker i See notes section for usage notes on this part 504-000-169 More Info >	$889.38
