NOTES:

Part #	Number on image	Usage Notes
403-360-110	31	Idler Pulley assembly C/W bearings available as part number 403-360-111.

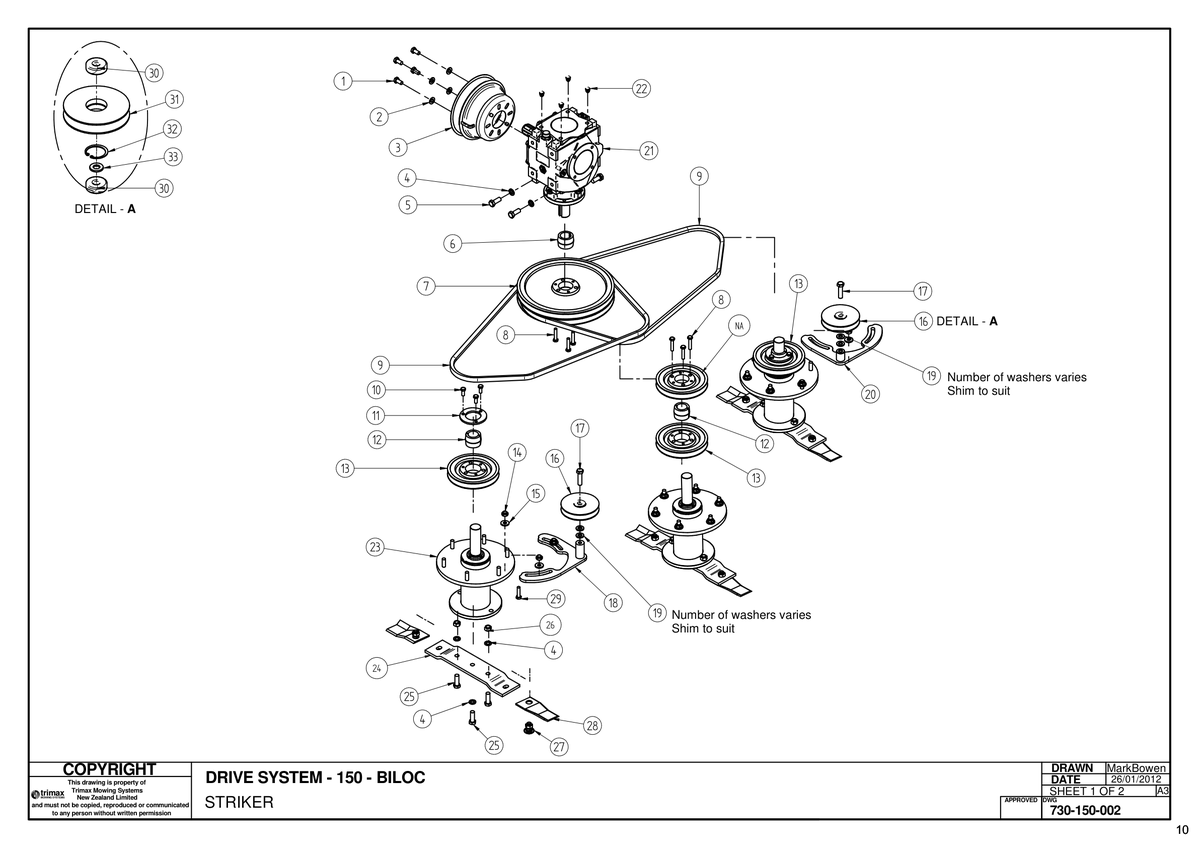

730 - Striker S1 150 - Drive System - Biloc

Striker S1 150

Grouped product items
No.	Product Name	Price
1	Bolt 301-210-203 More Info >	$1.61
2	Washer - Flat 308-100-013 More Info >	$0.54
3	Cone - PTO Holes Punched 410-440-402 More Info >	$44.94
4	Washer - Spring 308-120-043 More Info >	$0.45
5	Bolt 301-212-303 More Info >	$2.36
6	Bush 402-060-330 More Info >	$27.32
7	Pulley 403-000-060 More Info >	$122.10
8	Bolt 301-208-403 More Info >	$1.28
9	Vee Belt 404-040-700 More Info >	$40.70
10	Bolt 301-208-203 More Info >	$0.90
11	Retainer Ring 402-060-450 More Info >	$17.30
12	Bush 402-060-320 More Info >	$30.58
13	Pulley 403-360-300 More Info >	$80.25
14	Nut - Nyloc 307-210-053 More Info >	$0.57
15	Washer - Heavy Flat 308-100-063 More Info >	$0.85
16	Pulley Assembly - Idler 403-360-111 More Info >	$112.40
17	Bolt 301-212-453 More Info >	$3.04
18	Idler Adjuster M 403-000-063 More Info >	$58.48
19	Washer - Hardened 108-071-513 More Info >	$4.58
20	Idler Adjuster S 403-000-064 More Info >	$55.65
21	Gearbox 405-000-015 More Info >	$1,712.00
22	Blanking Plug 209-900-012 More Info >	$0.45
23	Spindle Assembly - Striker 504-000-096 More Info >	$889.38
24	Blade Beam 150/190 411-000-022 More Info >	$73.21
25	Bolt 301-212-353 More Info >	$2.71
26	Nut - Plain 307-212-013 More Info >	$0.57
27	Blade Bolt - Lazer and Nexablades - With Nyloc Nut - Blade Mounting 411-322-050 More Info >	$6.50
28	Blades - Lazerbladez - Uplift 411-160-842 More Info >	$10.70
29	Set Screw 313-210-403 More Info >	$0.85
30	Bearing 401-021-900 More Info >	$18.65
31	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	$63.89
32	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
33	Washer - Flat 108-071-413 More Info >	$2.88
