NOTES:

Part # Number on image Usage Notes
404-320-122 20
  • Roller Scraper available as an option

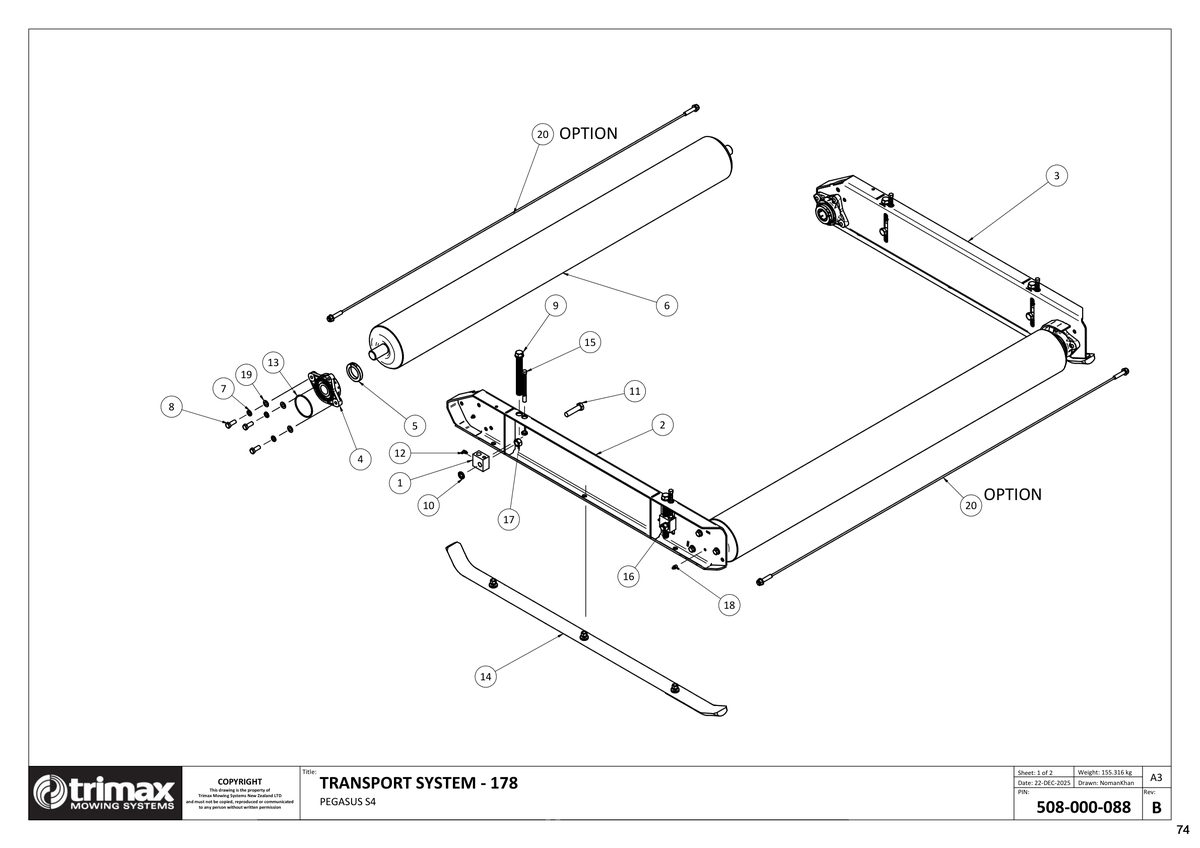

727 - Pegasus S4 - Transport System 178

Pegasus S4 493

Grouped product items
No. Image Product Name Price Quantity
1 Height Adjuster Block [412-000-279] Height Adjuster Block 412-000-279
$86.67
2 Side Channel Weldment - LH [412-841-052] Side Channel Weldment - LH 412-841-052
$597.06
3 Side Channel Weldment - RH [412-841-051] Side Channel Weldment - RH 412-841-051
$597.06
4 Bearing Assembly [401-000-005] Bearing Assembly 401-000-005
$283.55
5 Bearing Collar [401-000-007] Bearing Collar 401-000-007
$15.28
6 Roller Weldment 178 [414-320-020] Roller Weldment 178 414-320-020
$930.90
7 Washer - Spring [308-120-043] Washer - Spring 308-120-043
$0.45
8 Bolt [301-212-303] Bolt 301-212-303
$2.36
9 Height Adjuster Rod - RapidSet [450-000-126] Height Adjuster Rod - RapidSet 450-000-126
$69.55
10 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
$5.63
11 Bolt [301-216-653] Bolt 301-216-653
$6.76
12 Grease Nipple [208-442-650] Grease Nipple 208-442-650
$5.89
13 O Ring [450-000-055] O Ring 450-000-055
$4.22
14 Skid Assembly - Anti-Bounce [412-000-148] Skid Assembly - Anti-Bounce 412-000-148
$176.55
15 Height Indicator - Metric [412-000-256] Height Indicator - Metric 412-000-256
$37.45
16 Nut - Half [307-212-023] Nut - Half 307-212-023
$1.13
17 Nut - Plain [307-216-013] Nut - Plain 307-216-013
$1.61
18 Grease Nipple [208-442-550] Grease Nipple 208-442-550
$3.06
19 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
20 Scraper - Roller 178 [404-320-122] Scraper - Roller 178 i See notes section for usage notes on this part 404-320-122
$80.25
