NOTES:

Part #	Number on image	Usage Notes
418-000-606	5	The New Outrigger arm is fitted from serial number on wards, Serial numbers :727-493-410-0058 Painted NZ/ 727-610-400-0063 Painted NZ/727-493-410-0001 Galv NZ/ 727-610-410-0063 Gavl NZ Order part number 510-000-049 - Side Outrigger Wldmnt w Bushes - Pegasus S4 493/610 ,includes items 1,3,5,11(fitted) Please note that the new outrigger arm is backward compatible Serial number 727-493-400-0044,727-610-410-0060 on wards has Improved clearance between the Side Outriggers and the Lift Rams The New Outrigger arm is fitted from serial number on wards, Serial numbers :727-493-410-0058 Painted NZ/ 727-610-400-0063 Painted NZ/727-493-410-0001 Galv NZ/ 727-610-410-0063 Gavl NZ Order part number 510-000-049 - Side Outrigger Wldmnt w Bushes - Pegasus S4 493/610 ,includes items 1,3,5,11(fitted) Please note that the new outrigger arm is backward compatible Serial number 727-493-400-0044,727-610-410-0060 on wards has Improved clearance between the Side Outriggers and the Lift Rams
460-000-234	7	Item 7 Includes items 8,9,10,11 & 12 as Kit. Item 7 Includes items 8,9,10,11 & 12 as Kit.
301-208-253	13	Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000 Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000
308-080-016	14	Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000 Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000
418-840-300	15	Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000 Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000

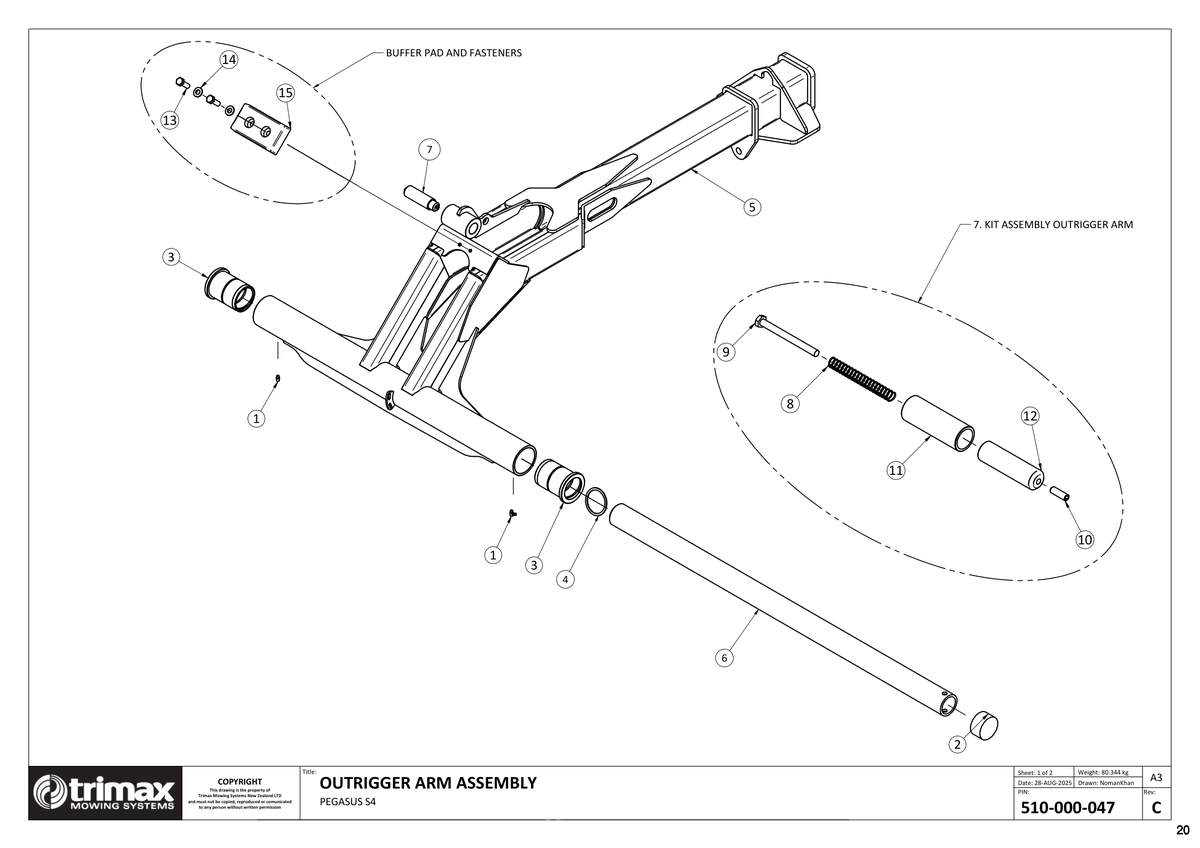

727 - Pegasus S4 - Outrigger Arm - LH & RH

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
2	Plastic Cap - Round Ø63 x 36 209-840-320 More Info >	$8.45
3	Bush 402-840-260 More Info >	$247.00
4	Shim 418-000-001 More Info >	$76.43
5	Side Outrigger Weldment 493 & 610 i See notes section for usage notes on this part 418-000-606 More Info >	Price on Request
6	Pin - Outrigger Hinge - Side 419-840-210 More Info >	Price on Request
7	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	$234.24
8	Spring - Compression 207-840-720 More Info >	$28.71
9	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	$4.83
10	Grub Screw 312-208-255 More Info >	$2.75
11	Bush 402-840-710 More Info >	$116.01
12	Pin - Transport Lock 419-840-700 More Info >	$198.00
13	Bolt - Hex Head - M8 x 25 - Trimax Specification i See notes section for usage notes on this part 301-208-253 More Info >	$0.54
14	Washer - Flat i See notes section for usage notes on this part 308-080-016 More Info >	$0.12
15	Buffer Pad i See notes section for usage notes on this part 418-840-300 More Info >	$44.82
