NOTES:

Part #	Number on image	Usage Notes
108-031-413	1	Rivets (213-000-005) and washers (108-031-413) replaced by zinc plated hex bolt and nyloc nut, including triangle reflector mounting Rivets (213-000-005) and washers (108-031-413) replaced by zinc plated hex bolt and nyloc nut, including triangle reflector mounting
301-204-163	2	Rivets (213-000-005) and washers (108-031-413) replaced by zinc plated hex bolt and nyloc nut, including triangle reflector mounting Rivets (213-000-005) and washers (108-031-413) replaced by zinc plated hex bolt and nyloc nut, including triangle reflector mounting
307-204-053	3	Rivets (213-000-005) and washers (108-031-413) replaced by zinc plated hex bolt and nyloc nut, including triangle reflector mounting Rivets (213-000-005) and washers (108-031-413) replaced by zinc plated hex bolt and nyloc nut, including triangle reflector mounting

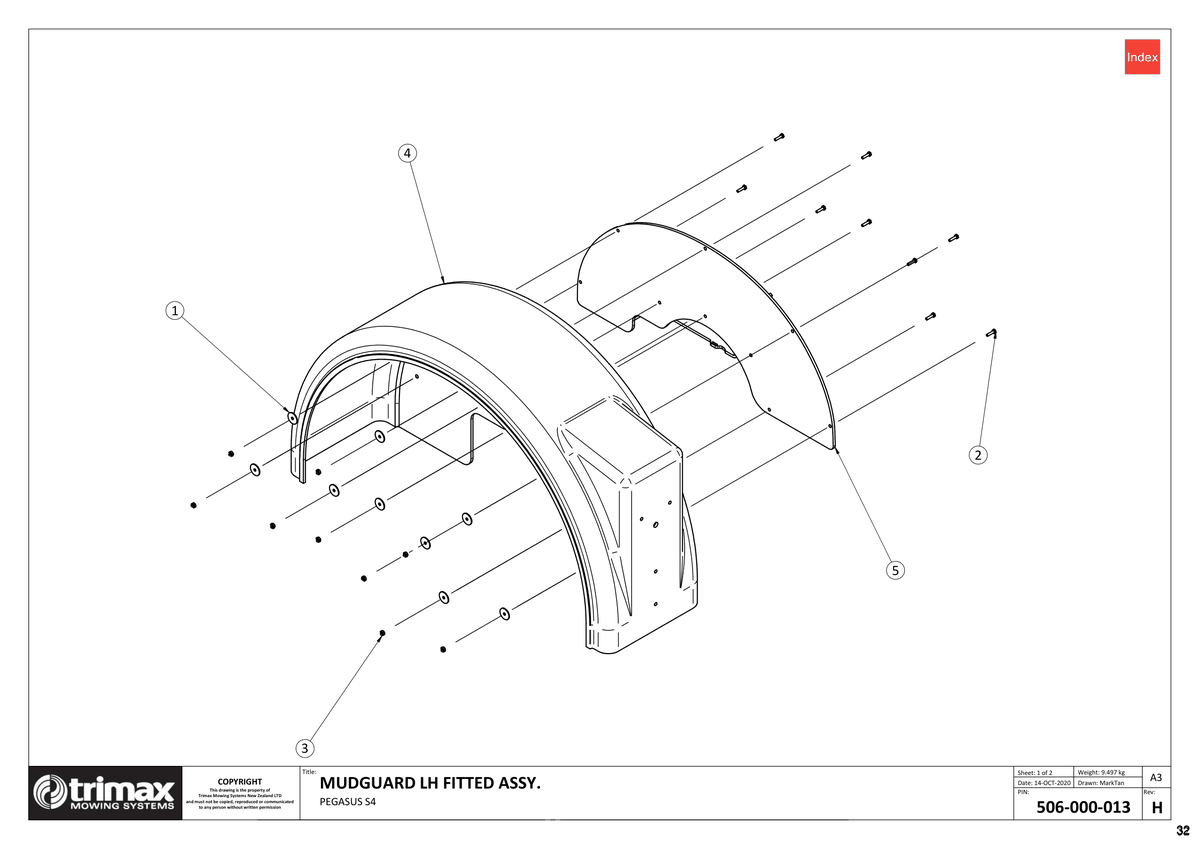

727 - Pegasus S4 - Mudguard LH

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Washer - Fender i See notes section for usage notes on this part 108-031-413 More Info >	$1.10
2	Bolt i See notes section for usage notes on this part 301-204-163 More Info >	$0.27
3	Nut - Nyloc i See notes section for usage notes on this part 307-204-053 More Info >	$0.53
4	Mudguard - Moulded - LH 410-842-930 More Info >	$311.57
5	Mudguard Bracket Weldment LH 418-842-910 More Info >	$192.72
