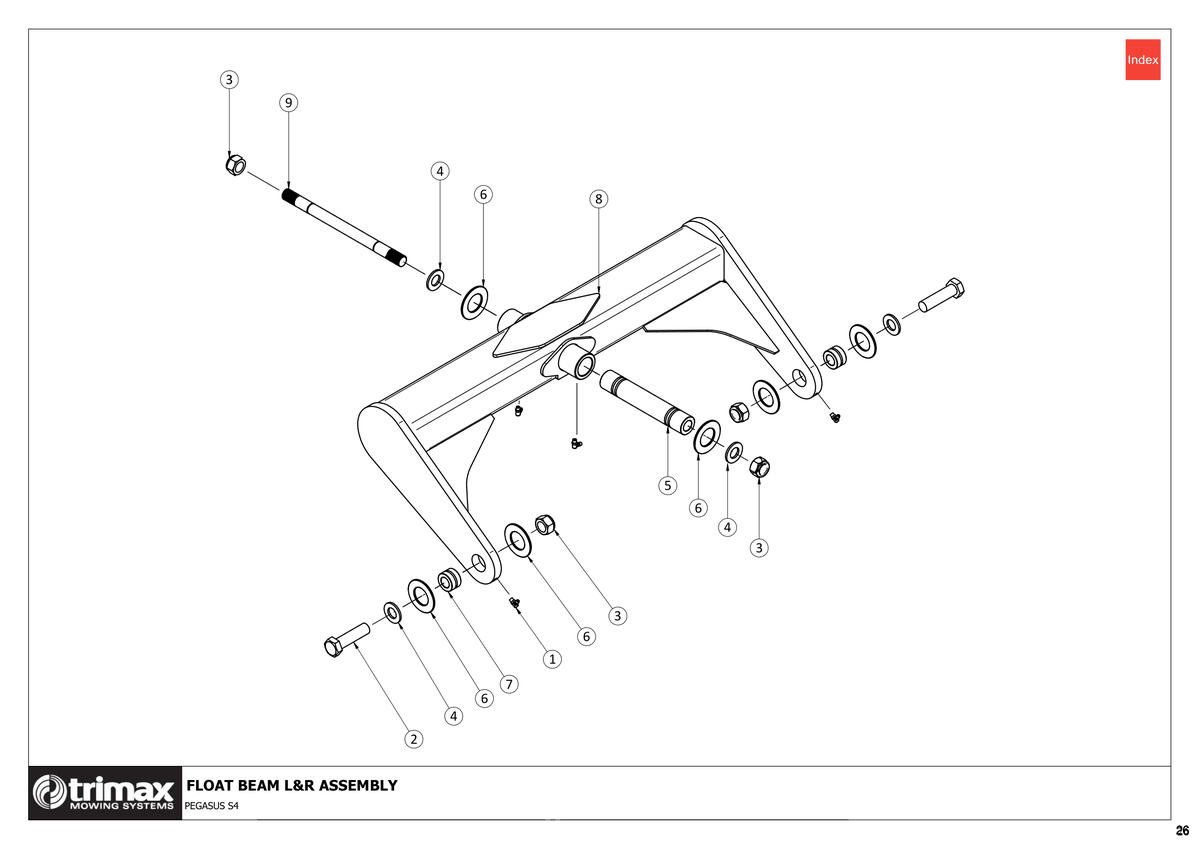

727 - Pegasus S4 - Float Beam LH & RH

Pegasus S4 493, Pegasus S4 610

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-650] Grease Nipple 208-442-650
$5.89
2 Bolt [301-220-753] Bolt 301-220-753
$4.82
3 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
$1.57
4 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
$1.02
5 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
$215.67
6 Thrust Washer [402-840-520] Thrust Washer 402-840-520
$48.15
7 Hardened Bush [402-840-550] Hardened Bush 402-840-550
$69.09
8 Side Float Beam Weldment [418-840-070] Side Float Beam Weldment 418-840-070
$1,328.24
9 Pin - Pitch Pivot [419-000-069] Pin - Pitch Pivot 419-000-069
$105.51
